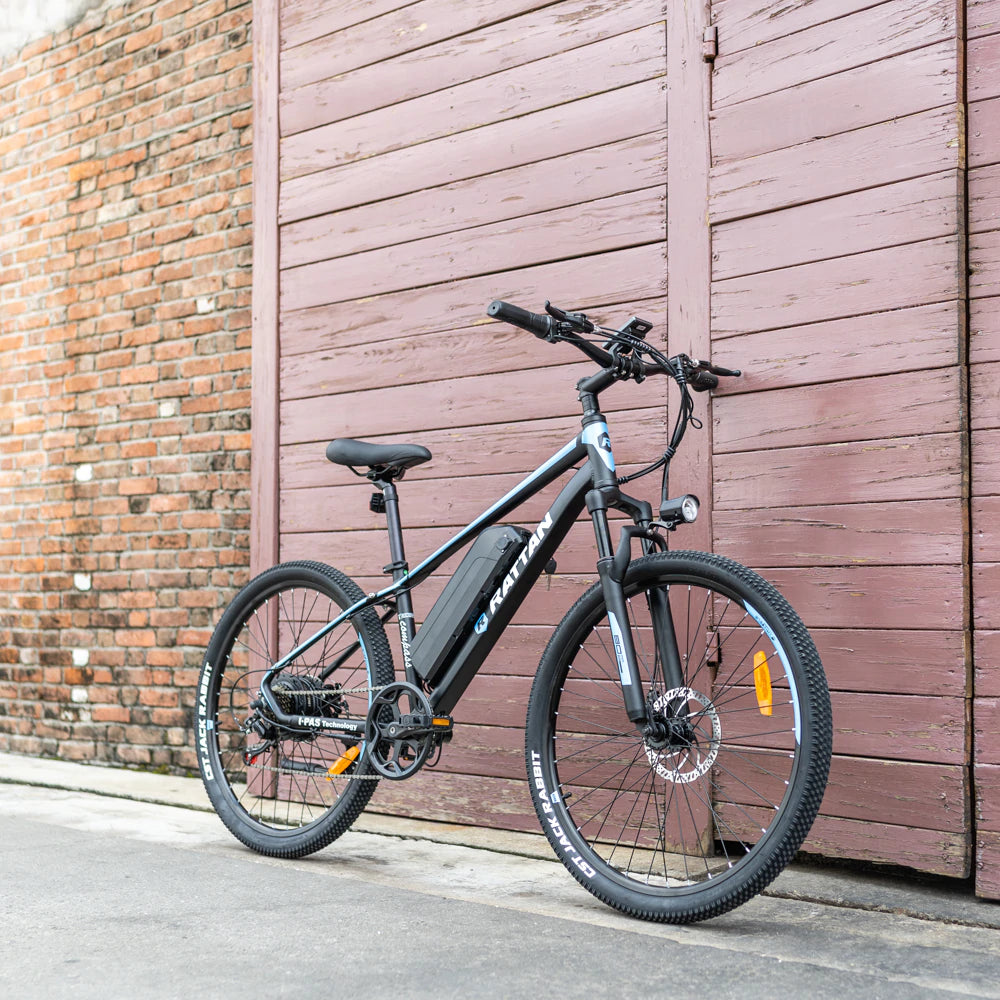

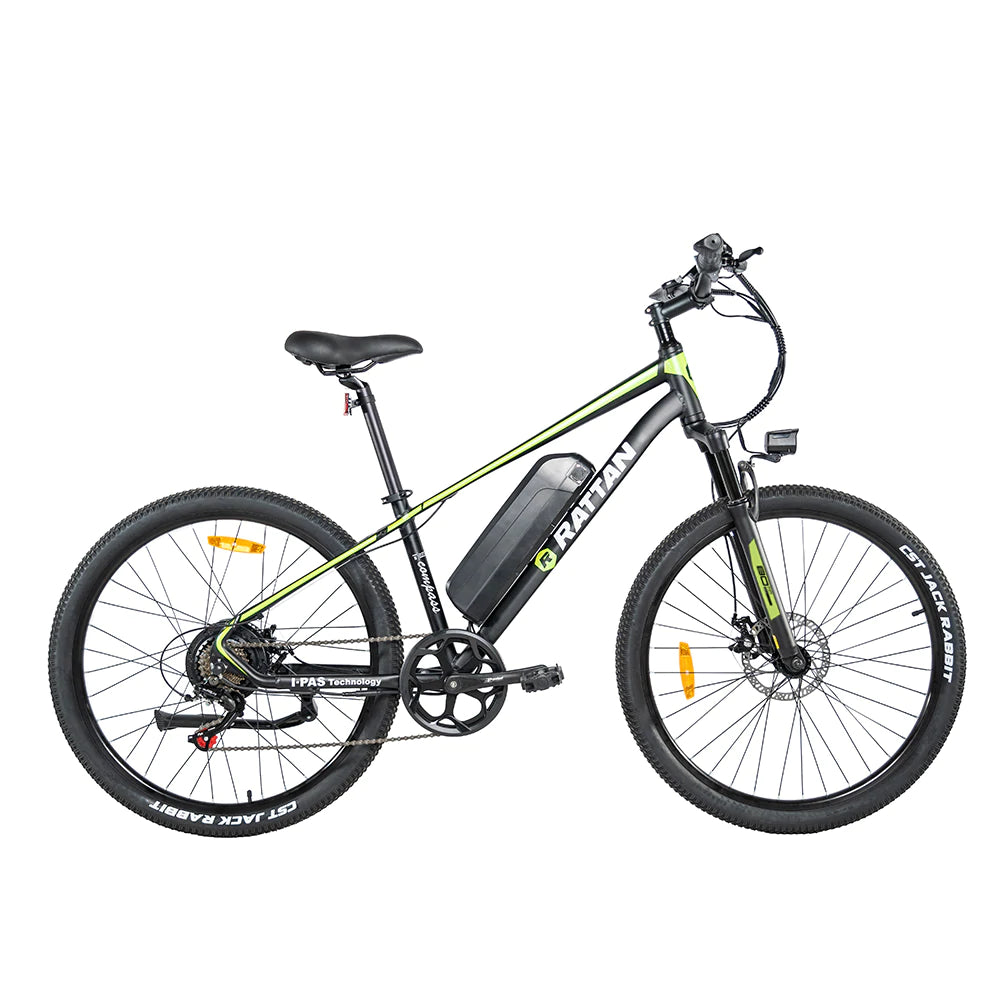

Rattan Compass 500W Mountain Ebike

Rear Hub Brushless 500w Motor

Provides 60 NM torque and more power. Whether it's speeding over the worst hill on your commute or looking to explore all types of terrain.

Safer & Easier

The 48v 13ah battery continuously delivers energy to high-speed motors to maintain high speed back and forth throughout the day. Remove the battery with the key and charge it at your home or office. Safer and easier.

Lower Frame

We upgraded the Compass frame which you'll find is lower in height compared to the older frame, to accommodate more people.

Enjoy the Smooth & Peaceful Travel

Features 2.1inch puncture resisting CST tire, Narrow tires allow e-bike to accelerate more lightly and make less noise than wider tires. You could enjoy the smooth and peaceful travel.

7-Speed Shimano Transmission

The 7-speed transmission allows you adjust the intensity of training when you want to do exercise with the E-Bike (the lower the gear, the higher the intensity).

Technical Specifications

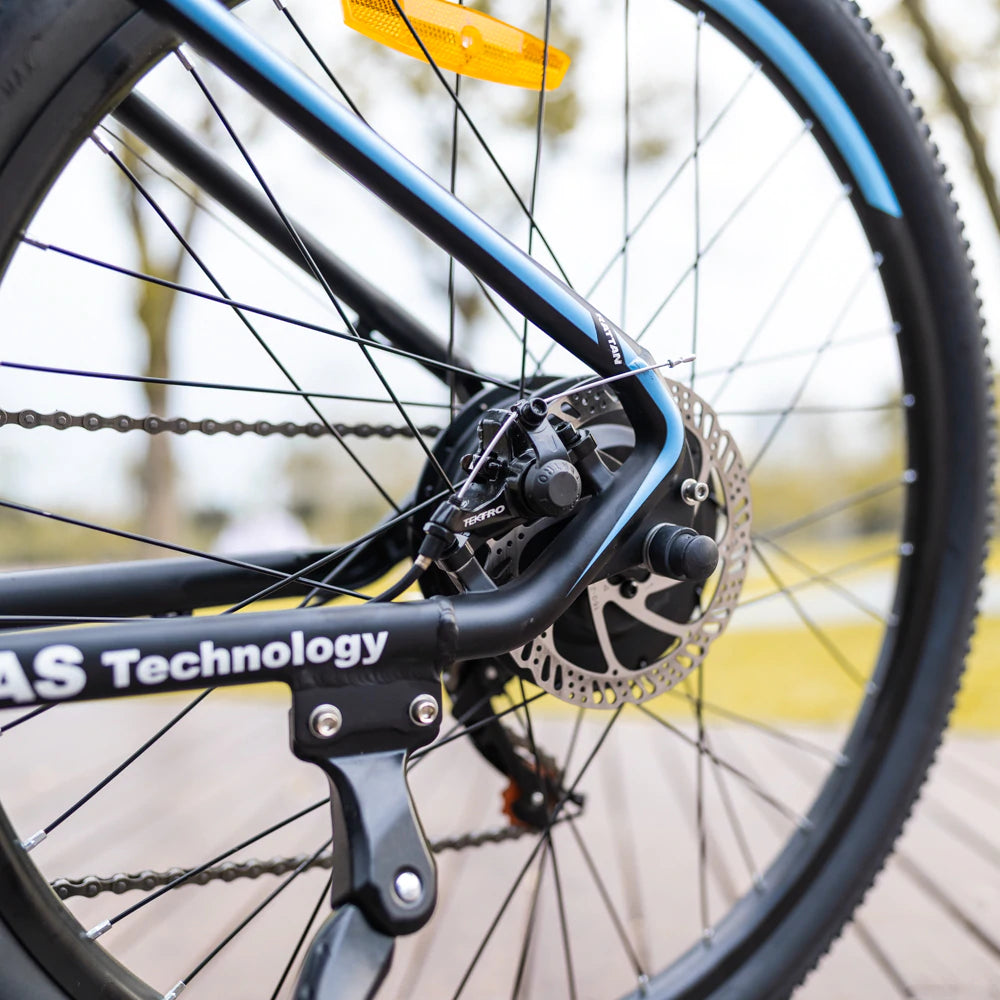

brake calipers

TEKTRO MD M280

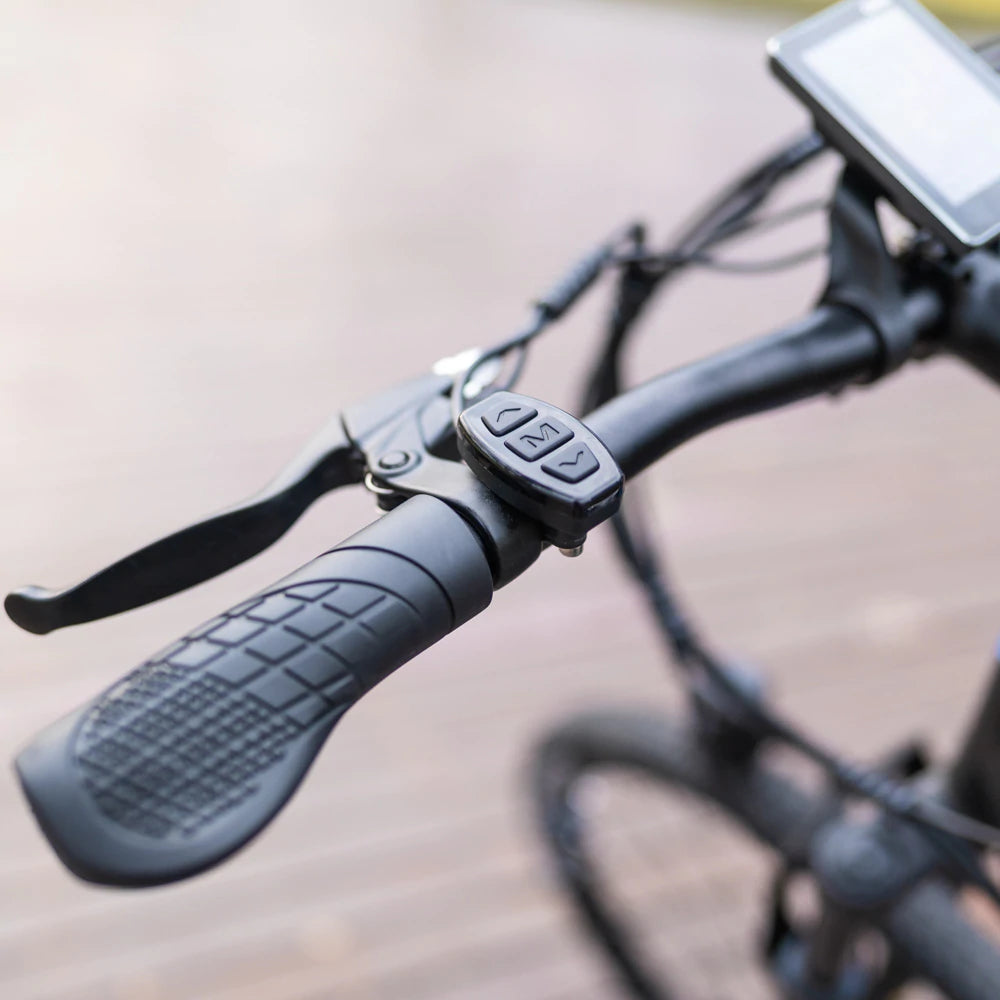

Brake Levers

197PDD all aluminum alloy power-off brake lever

Brake Rotors

Tektro 180 mm front and Tektro 160mm rear

Chain

D50

Crank

48T*170MM

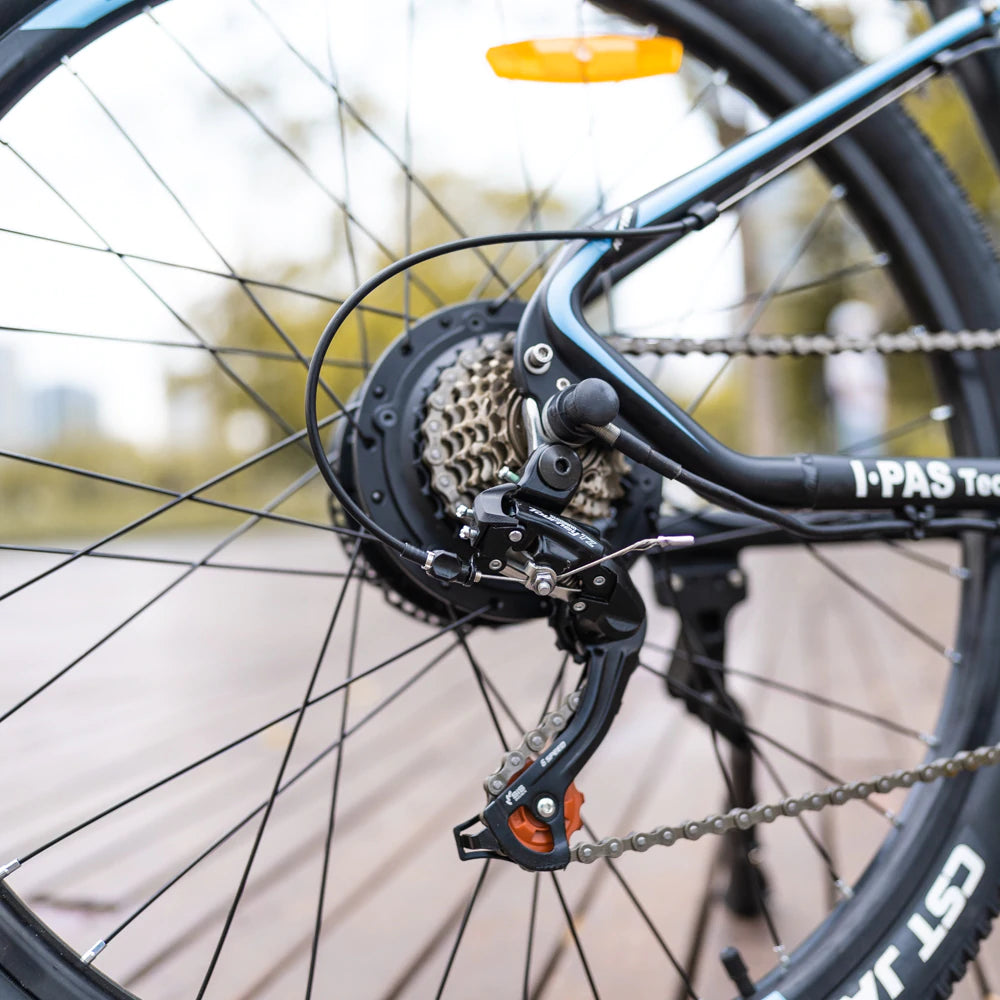

Derailleur

6/7-Speed Shimano Acera

Freewheel

7-speed freewheel,14-28T

Shifter

Shimano SL-TX50-7R thumb shifter, 7-speed

Rims

Aluminum alloy, 36H

Seatpost

30.4*350MM, 2.2T

Seatpost Clamp

Quick release

Spokes

Rear: 13-gauge stainless steel
Front: 13-gauge stainless steel

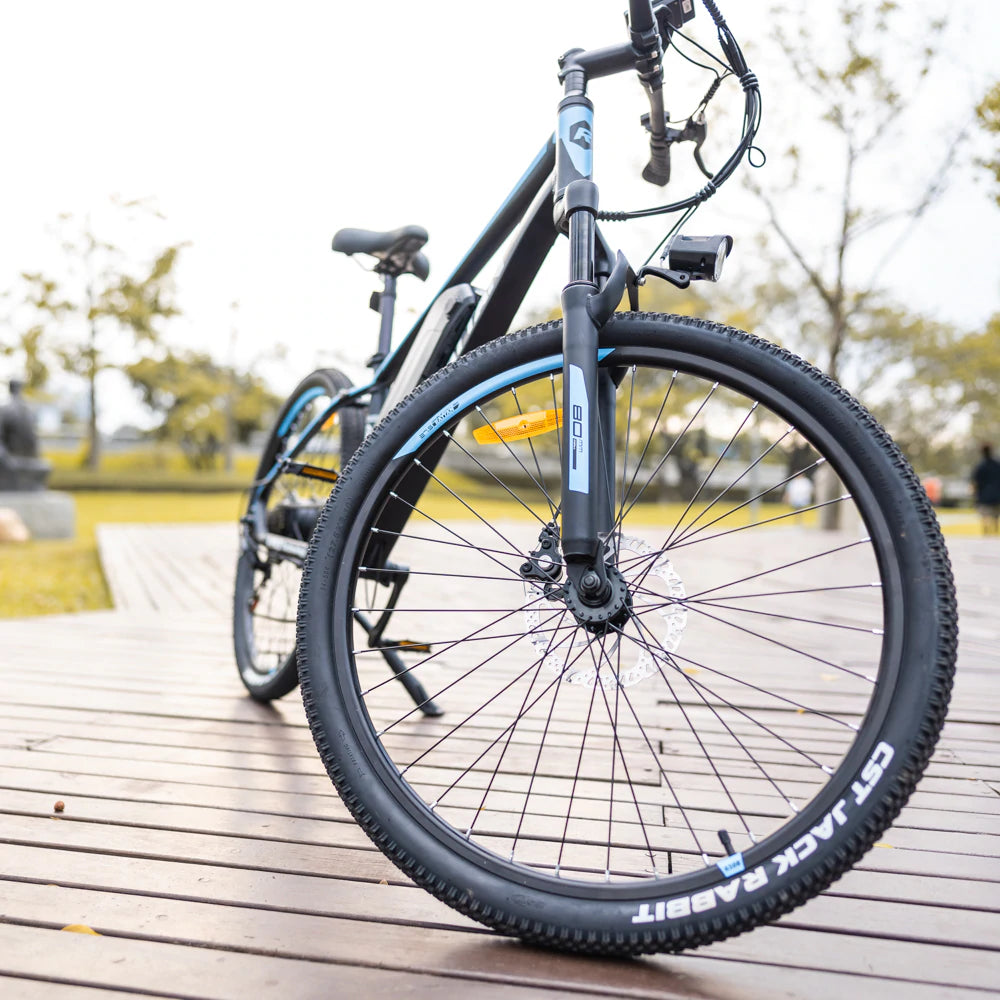

Tires

CST, custom 27.5" x 2.1", e-bike rated with puncture-resistant liner *tires received may not include branding

Kickstand

27.5" Aluminum alloy adjustable kickstand
