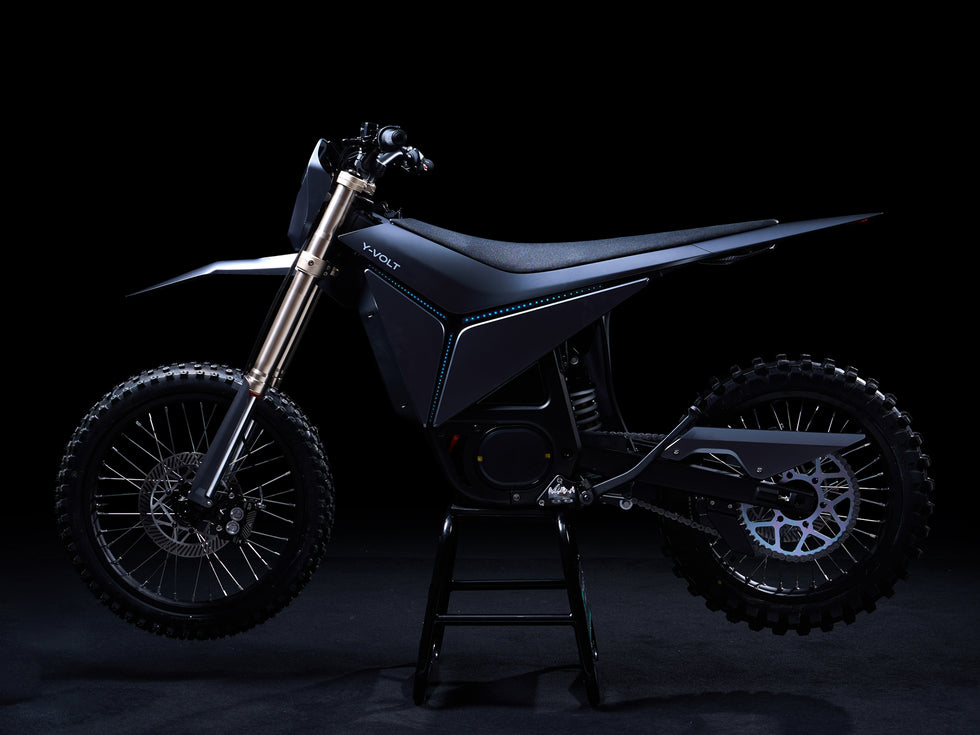

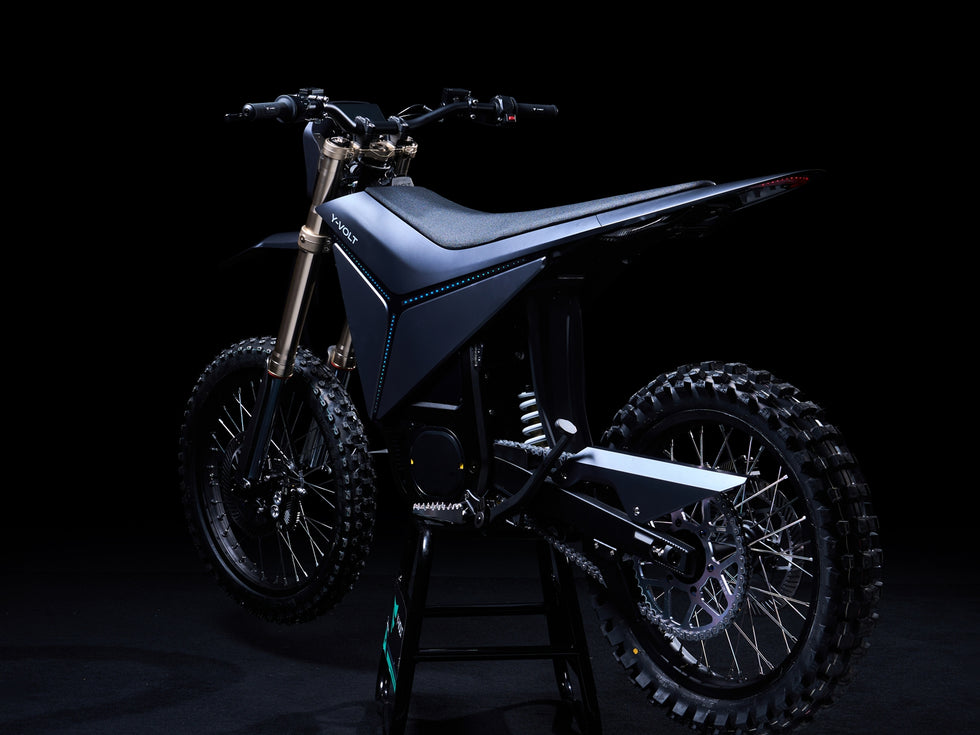

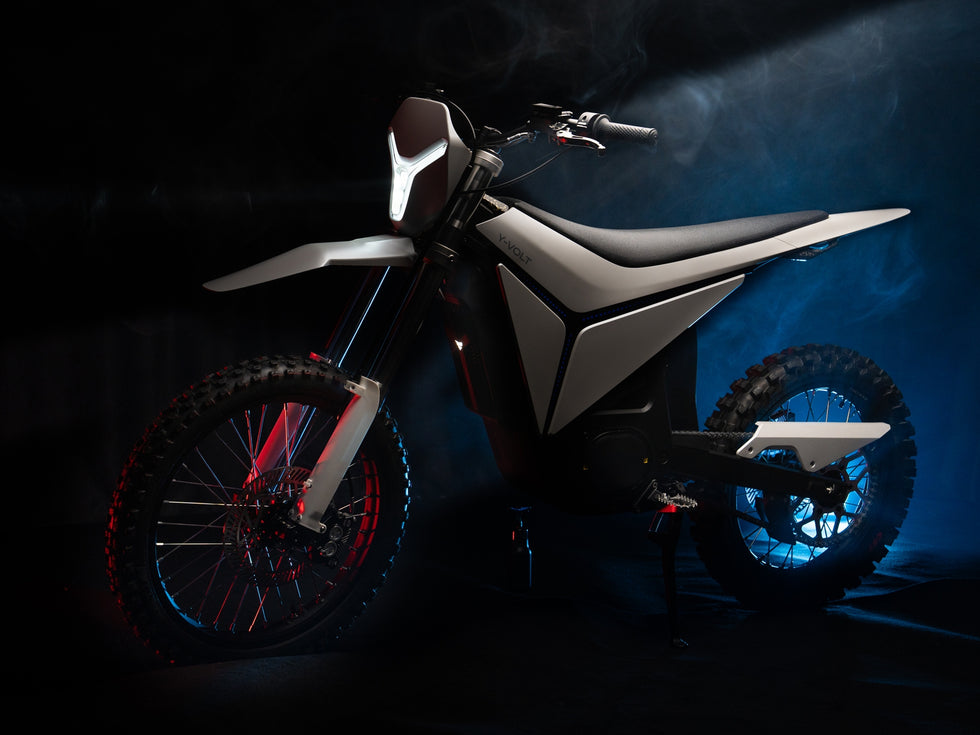

YVOLT Surge V Electric Dirt Bike
The YVOLT Surge V is where cutting-edge electric performance meets award-winning design. Built for riders who demand extreme power, premium engineering, and futuristic styling, the Surge V delivers an exhilarating off-road experience powered by a massive 35kW electric motor producing up to 948Nm of instant torque. From aggressive trails to open terrain, this high-performance electric dirt bike combines speed, precision, and control in one revolutionary machine.

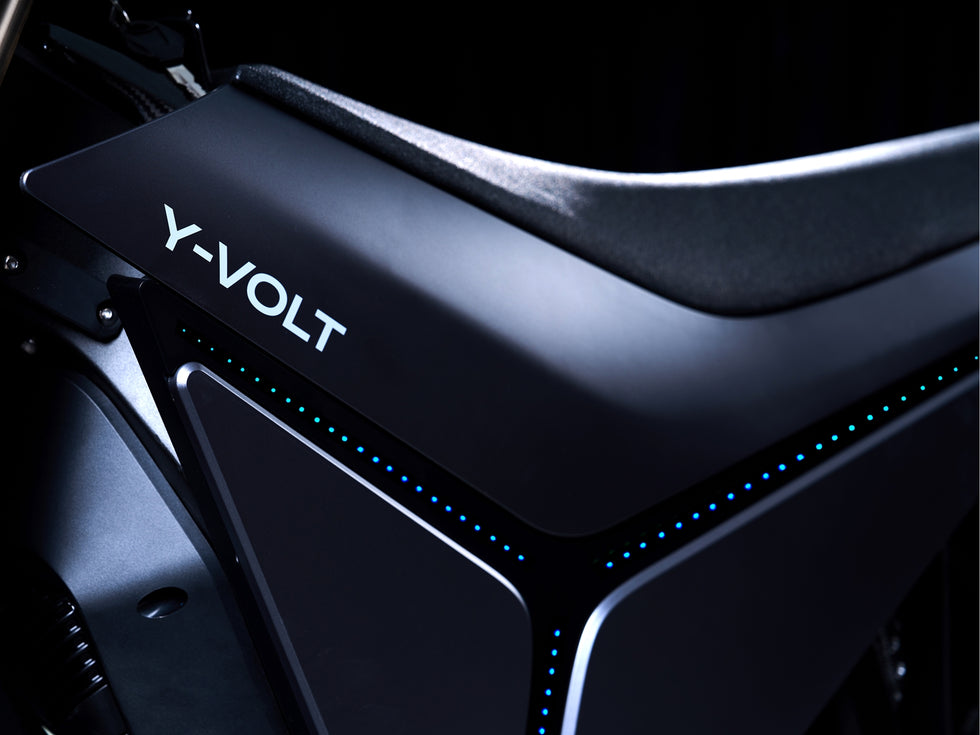

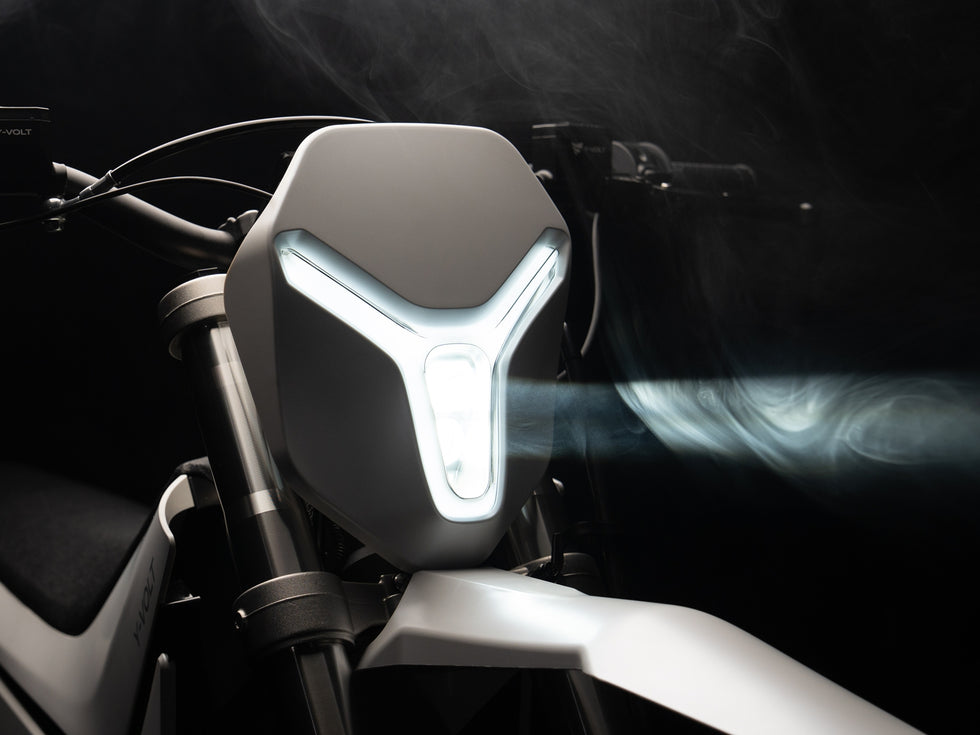

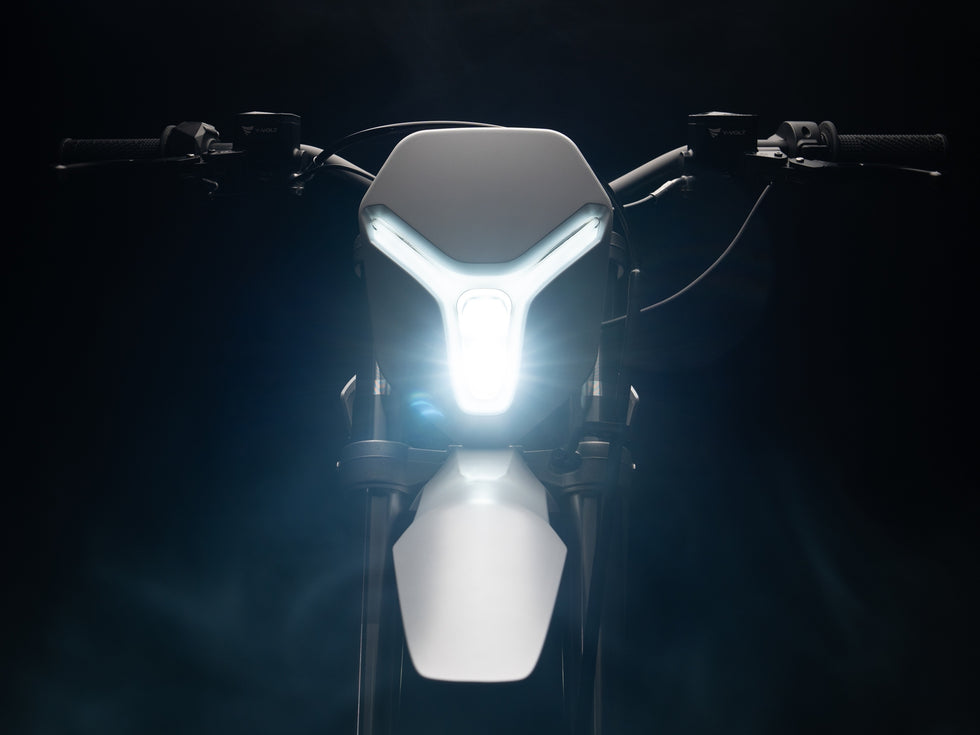

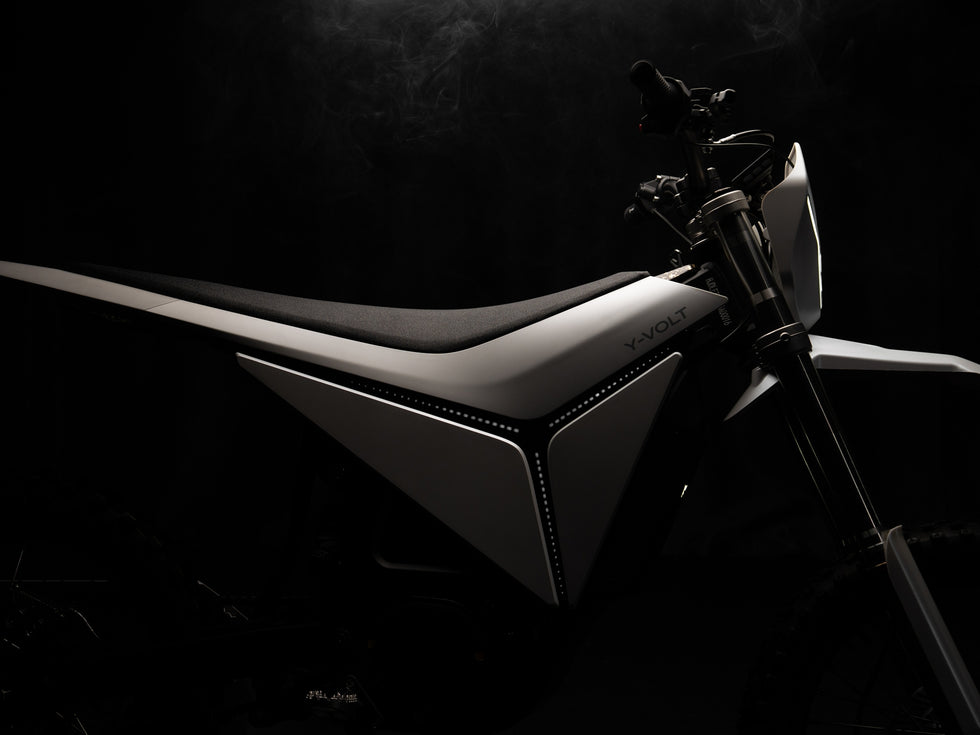

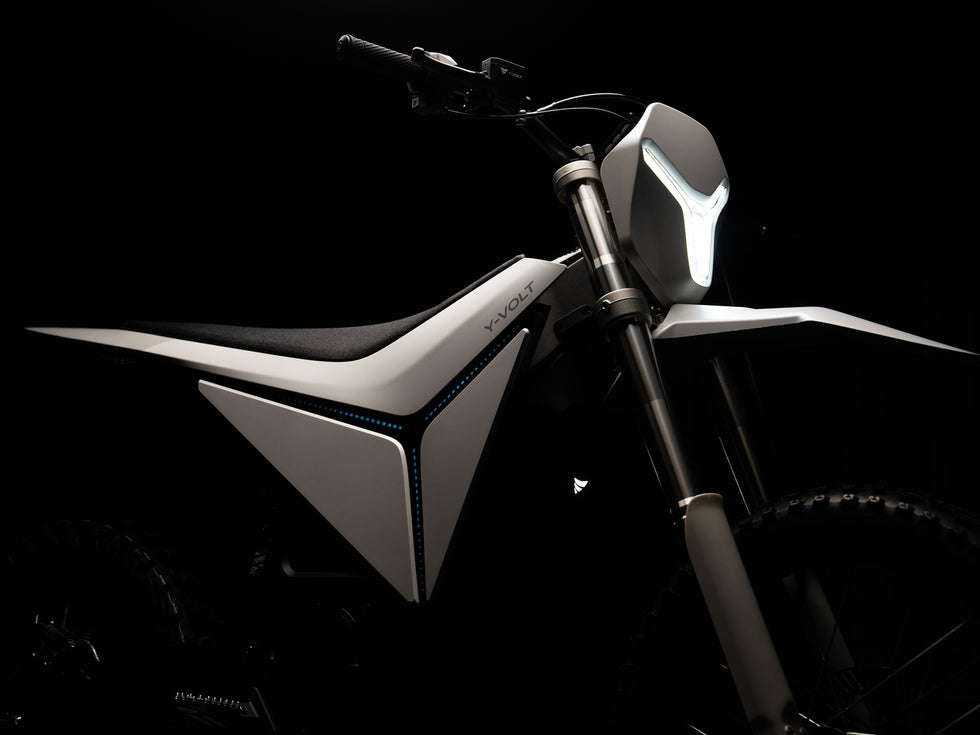

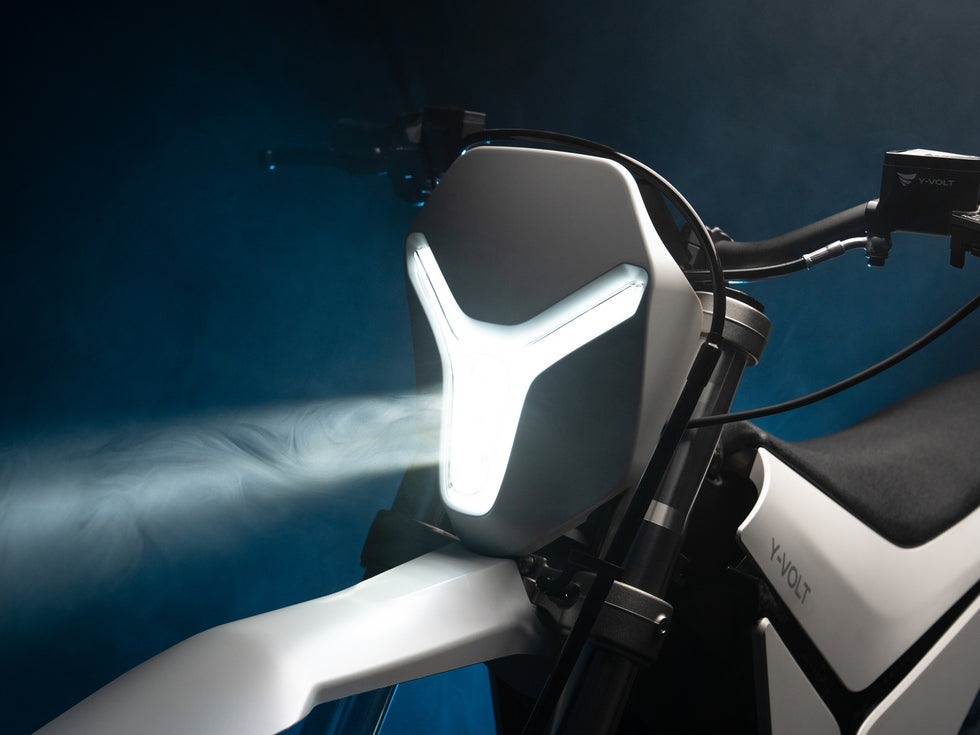

Inspired by modern aerospace styling, the Surge V features Y-VOLT’s signature Aurora Blue Y-shaped lighting system and a sleek aerodynamic frame that turns heads everywhere it goes. Underneath its elegant exterior lies a powerful 97.2V Samsung 50S lithium battery paired with a high-performance sine wave controller, delivering smooth acceleration, instant throttle response, and thrilling off-road capability.
Designed for serious riders, the YVOLT Surge V comes equipped with FASTACE long-travel suspension, adjustable compression and rebound damping, premium 4-piston hydraulic disc brakes, and durable CST off-road tires. The forged aluminum alloy frame ensures excellent strength while keeping the bike lightweight and agile.
Advanced smart features such as NFC access, full LED lighting, HD multifunction display, tip-over and kickstand sensors, GPS positioning support, and app-based customization make the Surge V a next-generation electric dirt bike built for both performance and convenience.
Key Features
- 35kW peak power electric motor with massive 948Nm torque
- 97.2V Samsung 50S lithium battery with fast 3-hour charging
- FASTACE adjustable long-travel suspension system

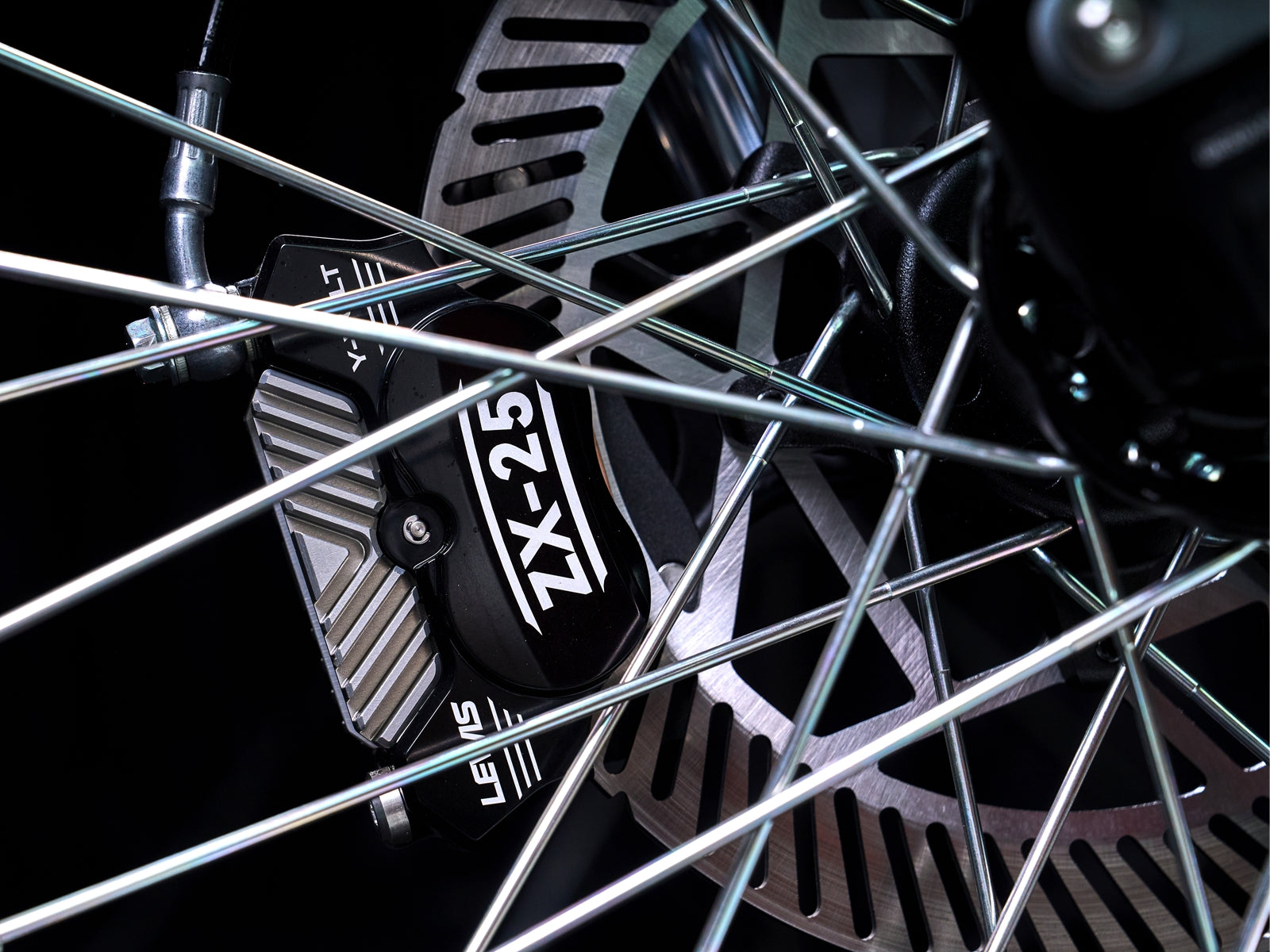

- Premium 4-piston hydraulic disc brakes front and rear
- Forged aluminum alloy frame for durability and lightweight handling

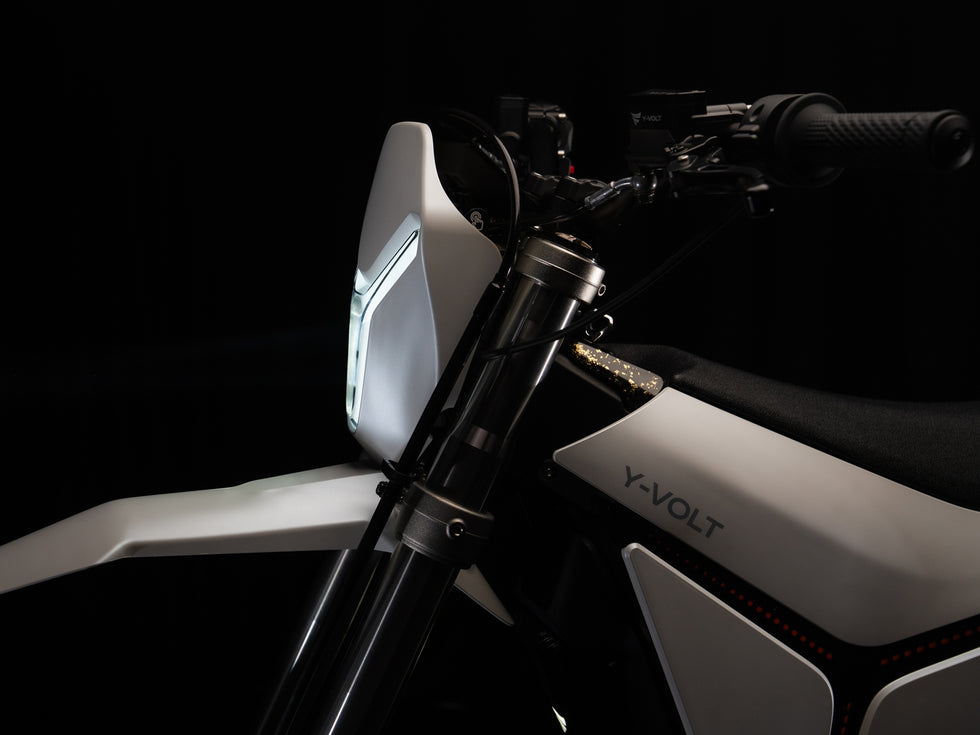

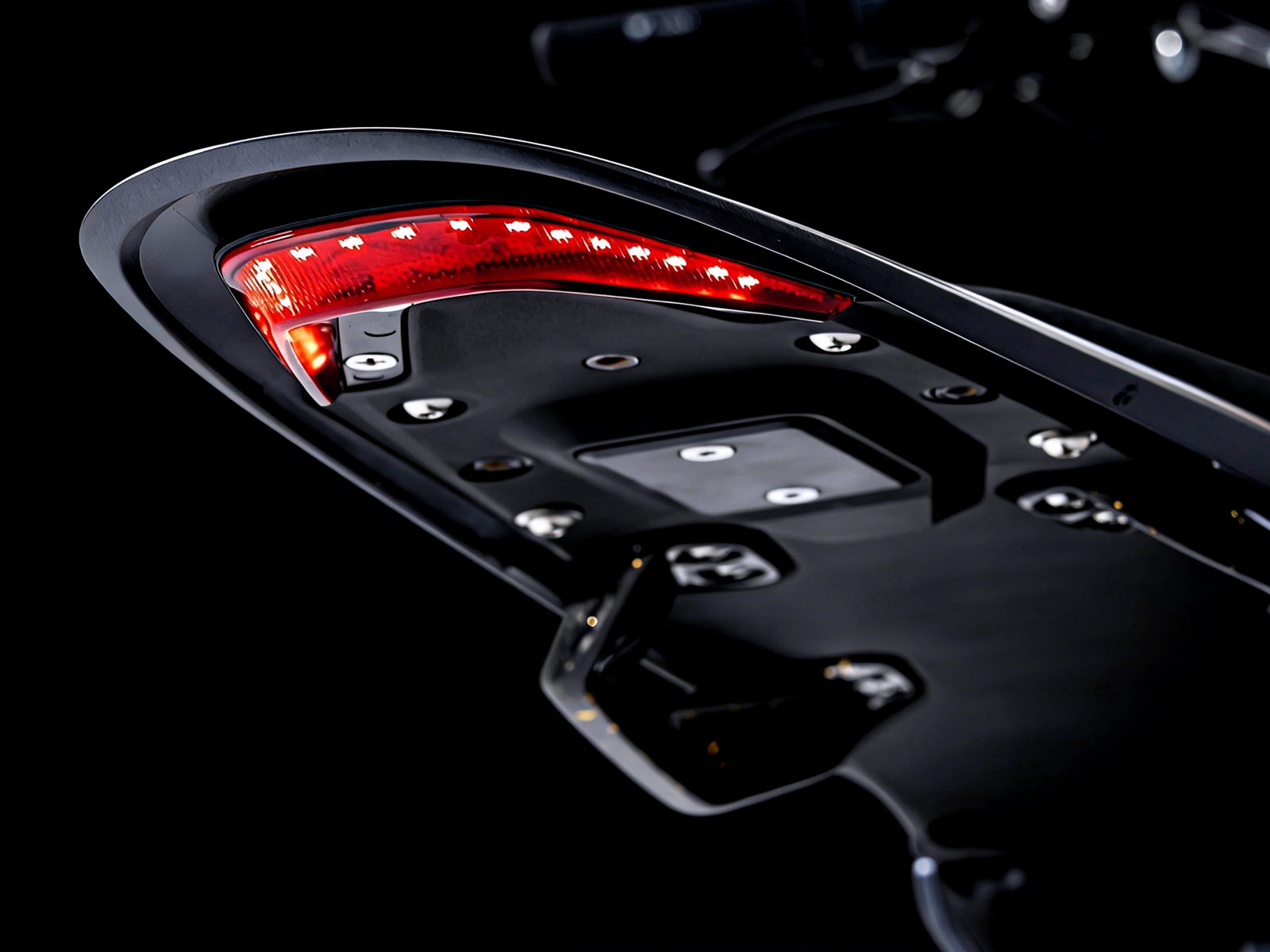

- Full LED lighting system with night riding mode
- NFC access, smart HD display, and app connectivity

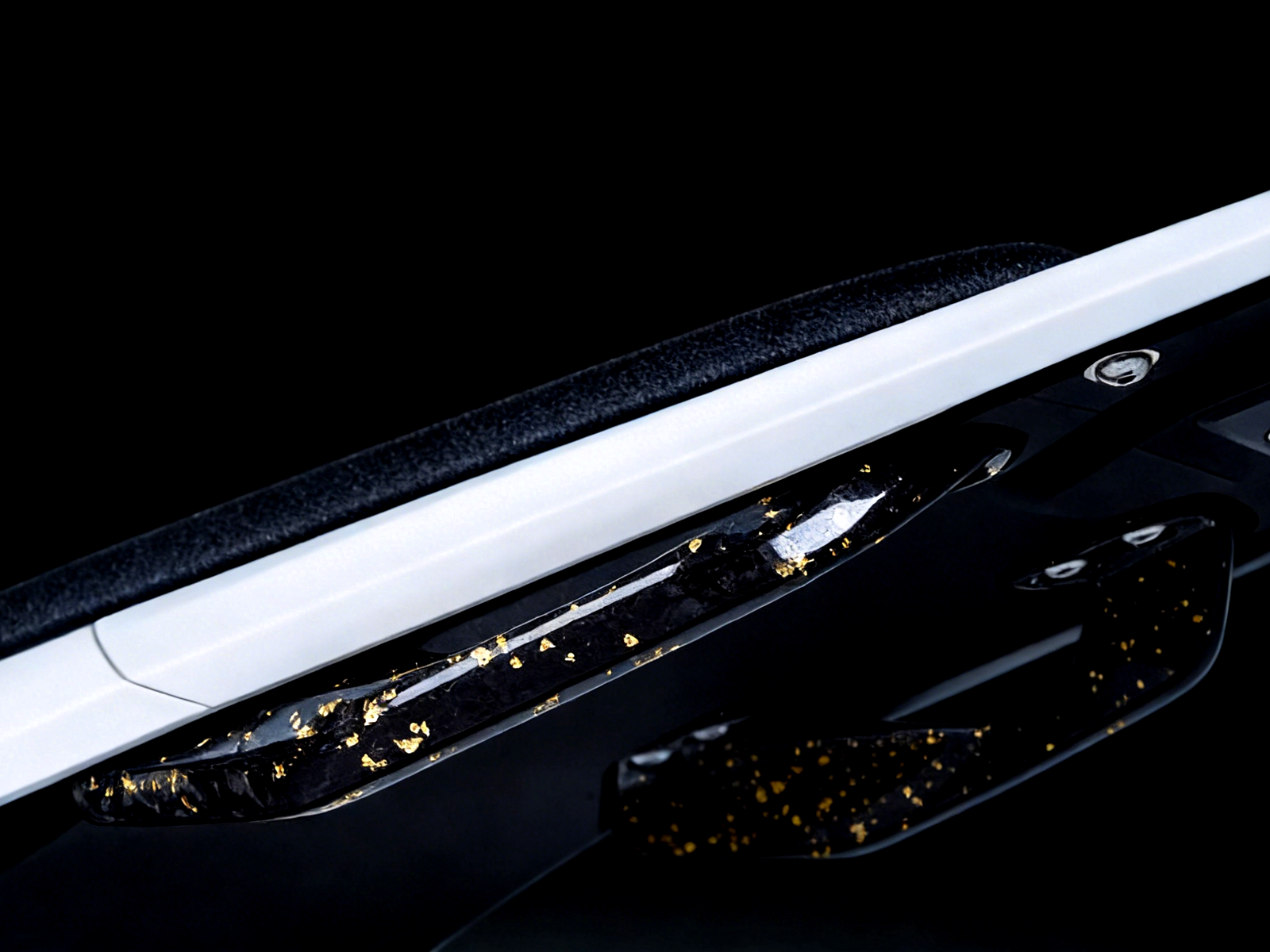

- Carbon fiber vehicle lock cover and rear handle bar
Specifications
| Basic Parameters | |
|---|---|
| Model | YVOLT Surge V |

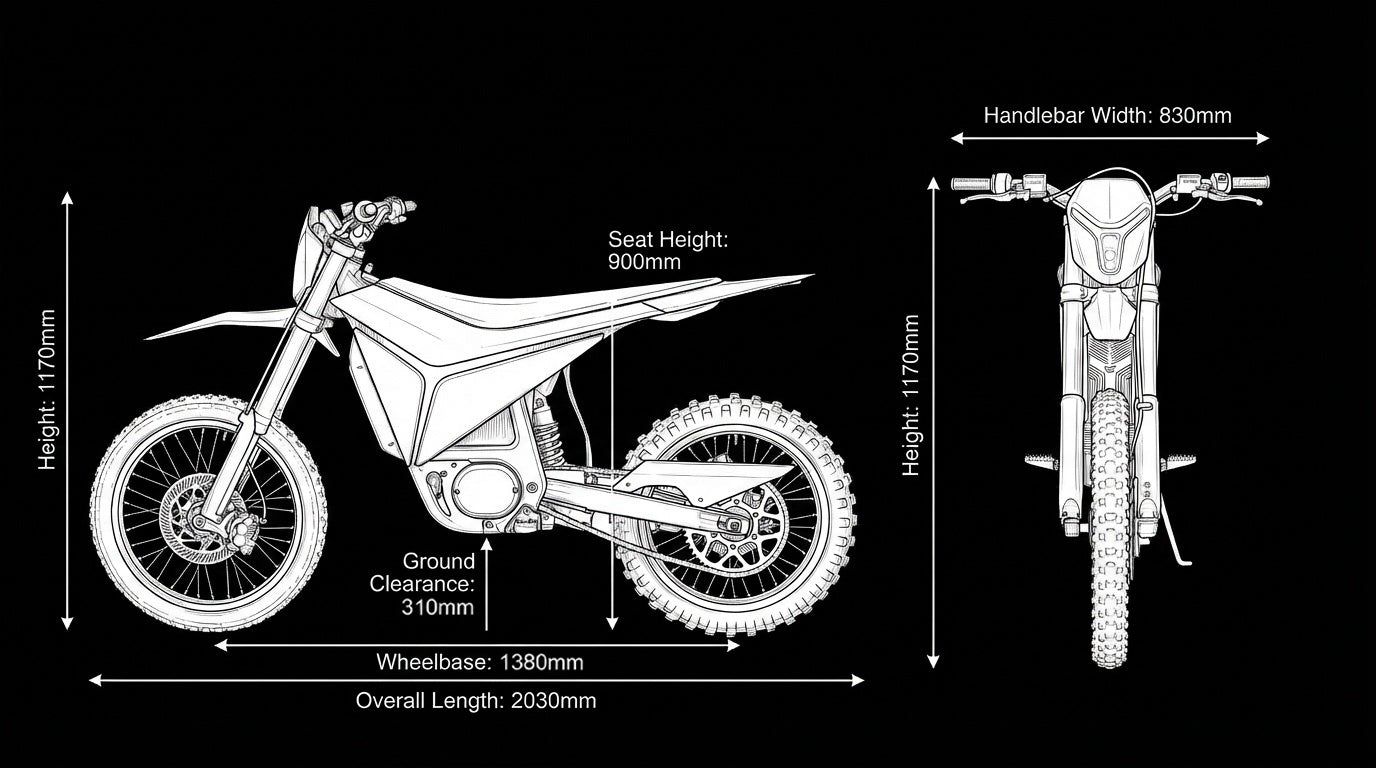

| Size (L × W × H) | 2000 × 830 × 1170mm |
| Weight (With Battery) | 204 lbs |
| Max Load | 265 lbs |
| Recommended Age | 18–55 Years Old |
| Motor & Performance | |
| Motor Type | Permanent Magnet Synchronous Motor |
| Peak Power | 35kW (48 HP) |
| Rated Power | 15kW |
| Torque | 700 ft-lbs (948Nm) Rear Wheel Torque |

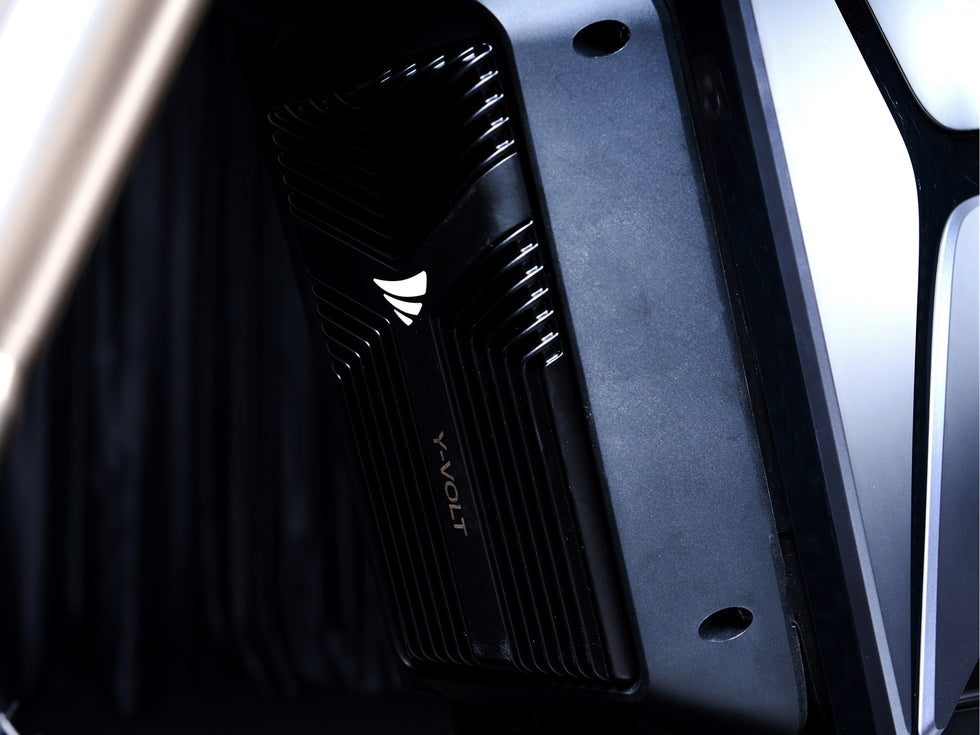

| Controller | 96V Sine Wave Vector Controller |
| Battery & Charging | |
| Battery | 4.32kWh 97.2V Greenway® Ternary Lithium Battery (Samsung 50S Cells) |
| Continuous Discharge Current | 154.32A |
| Charging Time | 3 Hours |
| Charger | 15A, 110/240V - 50/60Hz |
| Output Voltage | DC 113.4V |
| Output Current | 15A |
| Frame & Suspension | |
| Frame | Triple-Beam Forged Aluminum Alloy Frame |

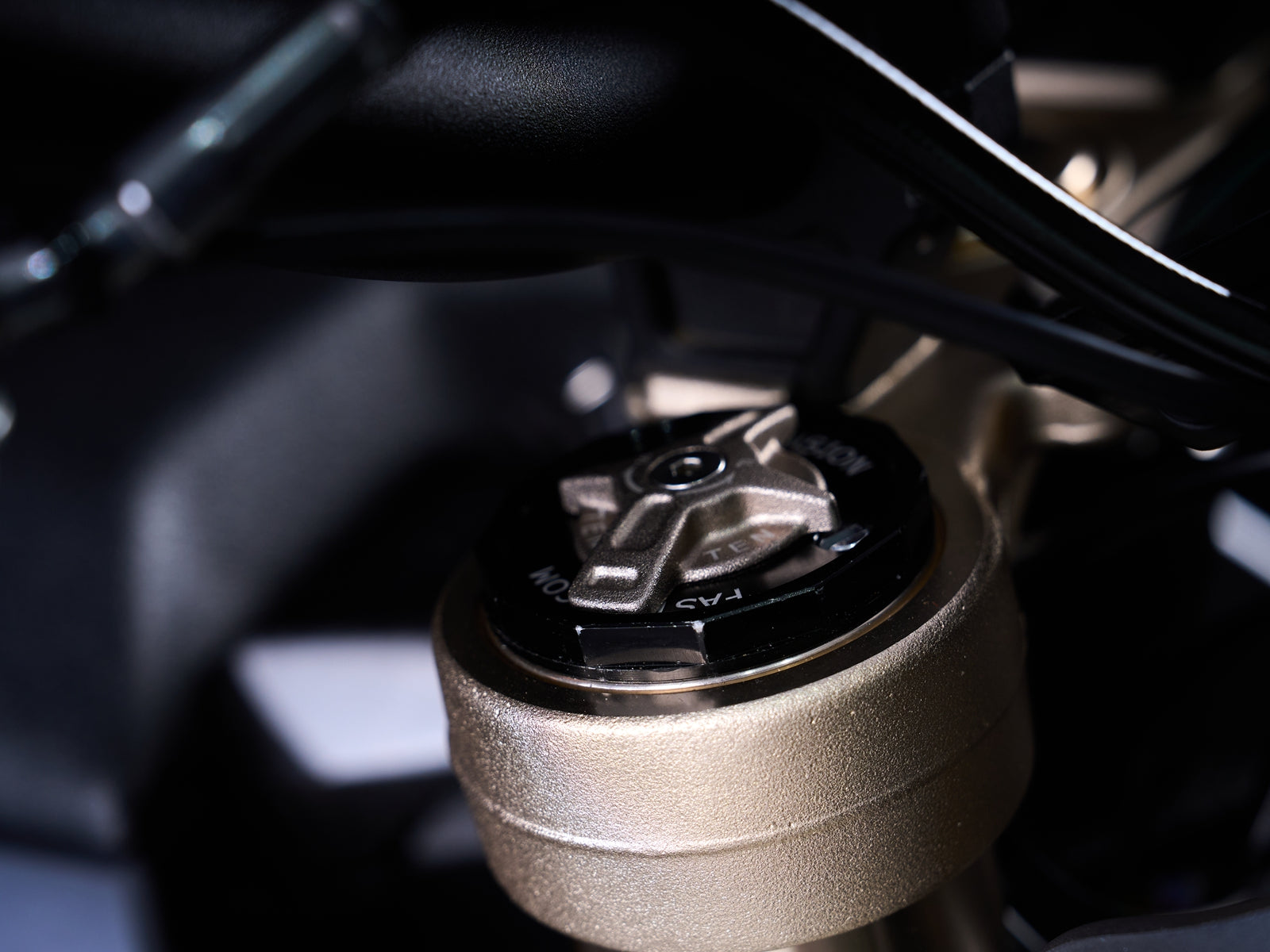

| Front Suspension | FASTACE Hydraulic Fork, 245mm Travel, Adjustable Rebound and Compression |

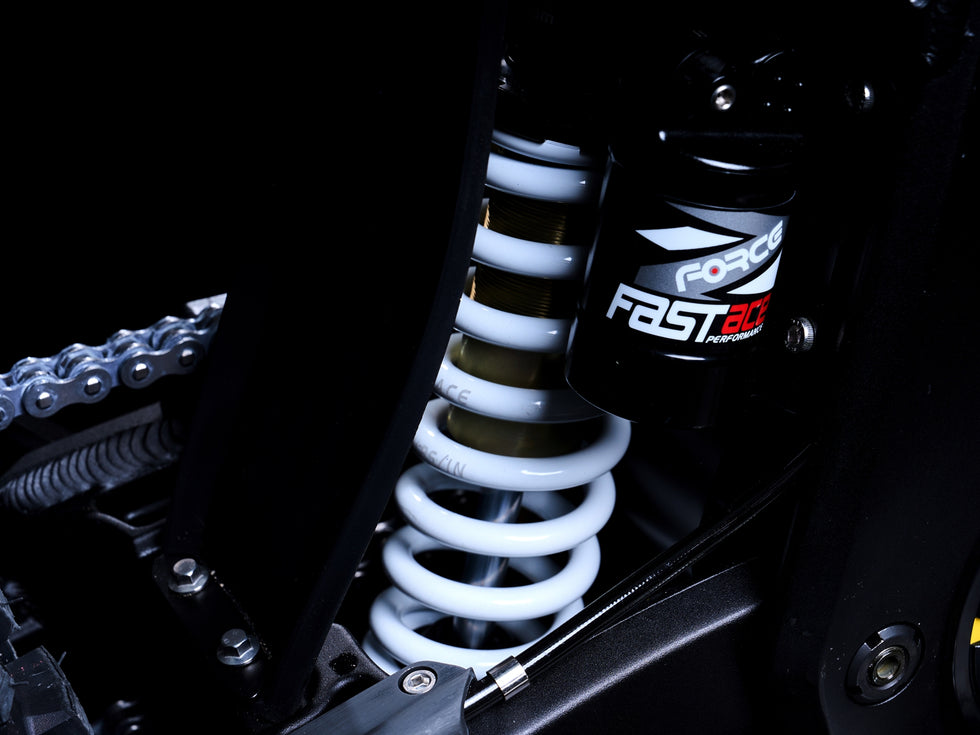

| Rear Suspension | FASTACE Coil Spring Shock with Hydraulic & Gas Damping, Adjustable Compression and Rebound |
| Ground Clearance | 310mm (12.2 in) |
| Wheelbase | 1380mm (54.3 in) |
| Brakes & Tires | |
| Front Brake | 4-Piston Caliper, 220mm Hydraulic Disc |

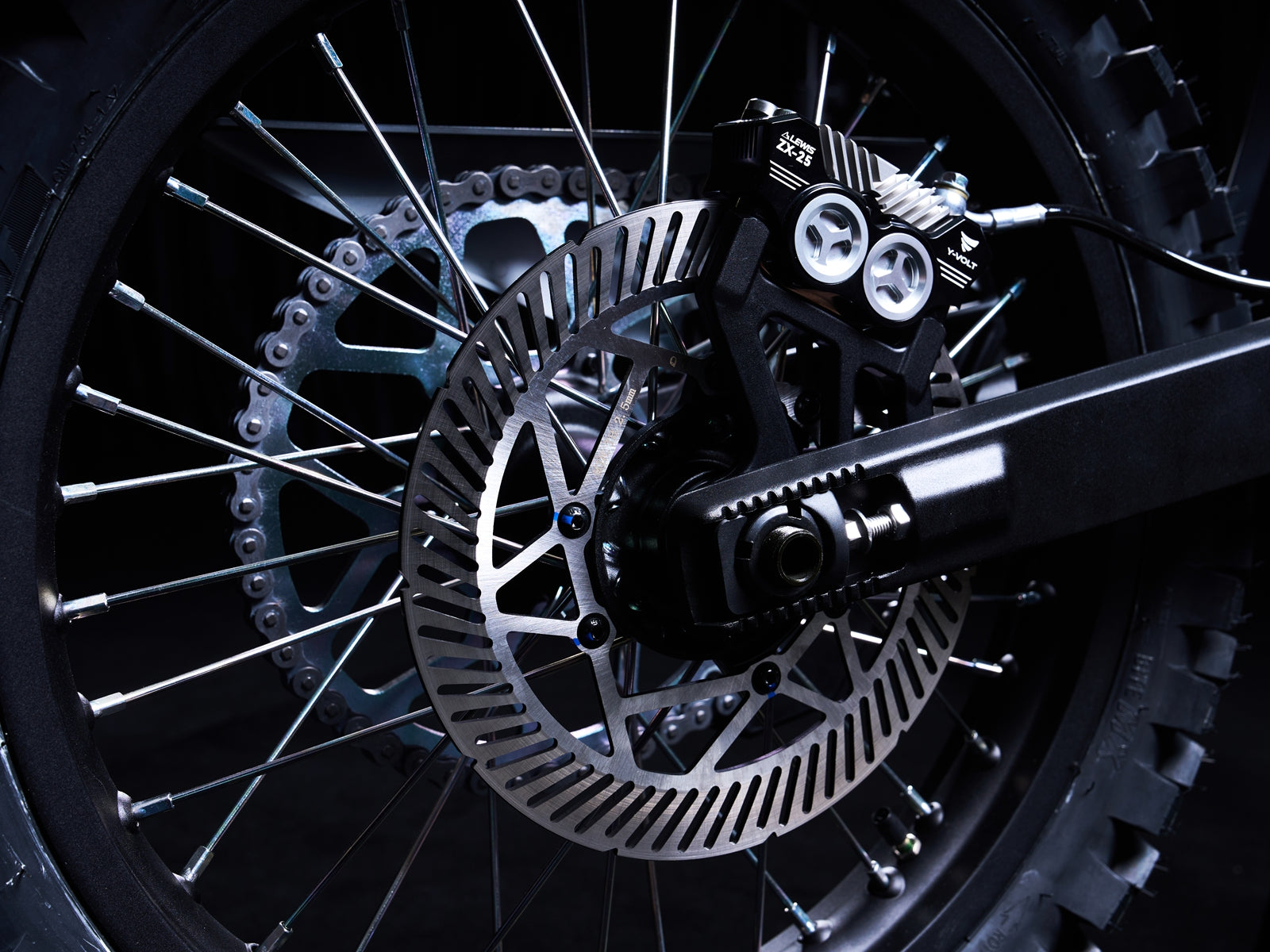

| Rear Brake | 4-Piston Caliper, 220mm Hydraulic Disc |

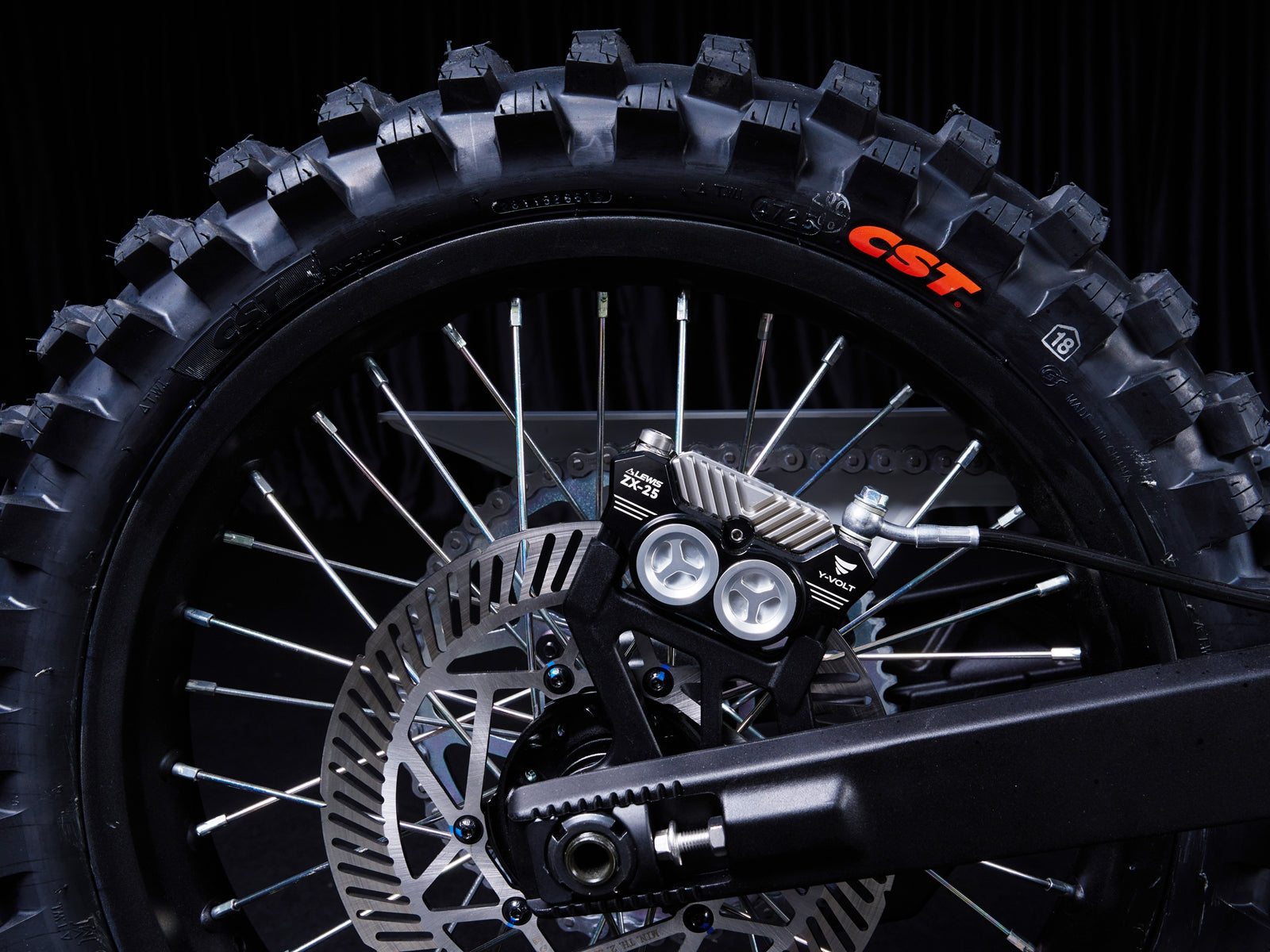

| Front Tire | 80/100-19 CST |
| Rear Tire | 100/90-18 CST |
| Drive System | |
| Primary Drive | Gearbox |
| Secondary Drive | Chain Drive |

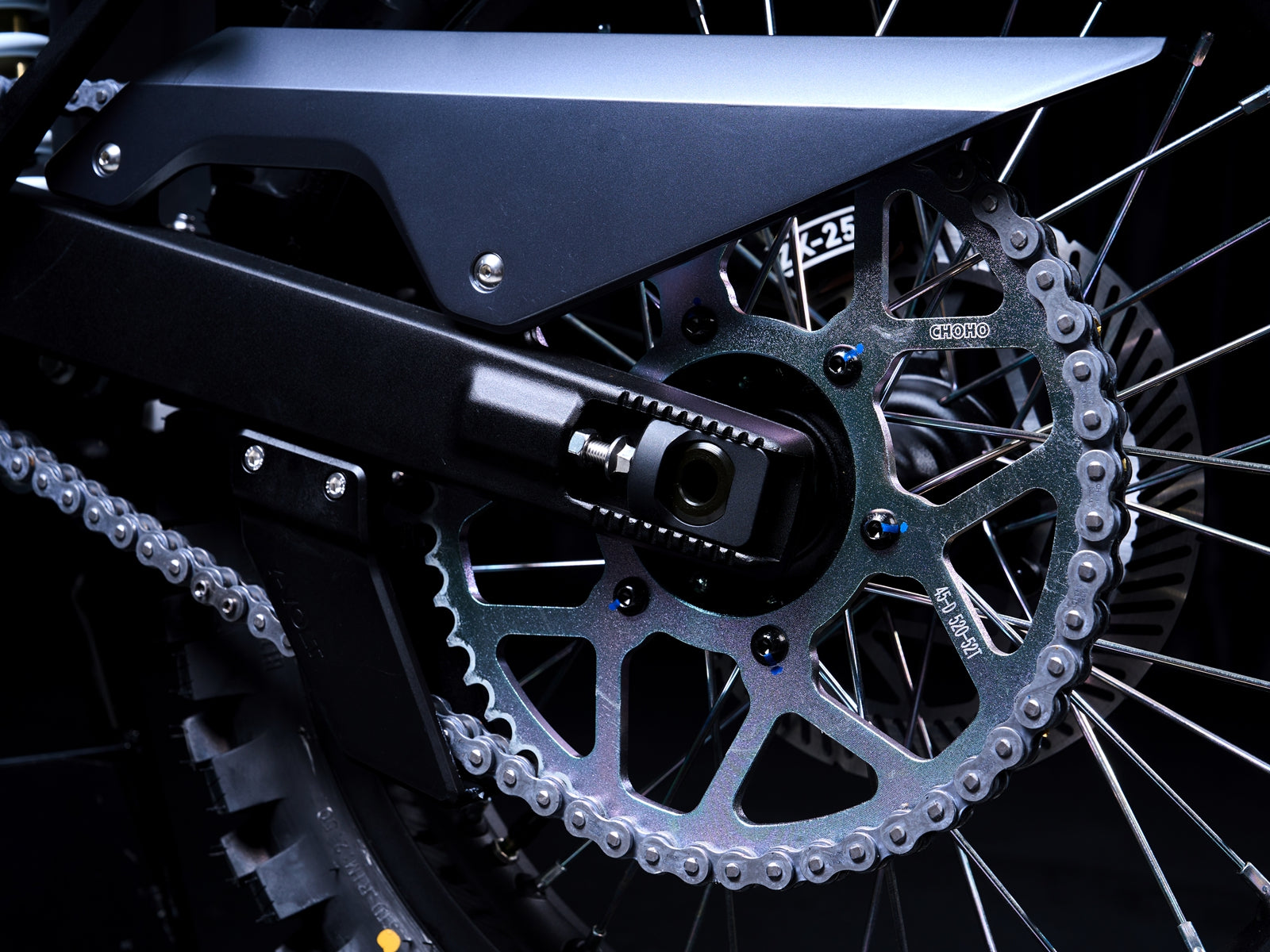

| Chain | 520 Pitch, 180 Links, O-Ring Chain |
| Features | |
| Lighting System | Full LED High & Low Beam |

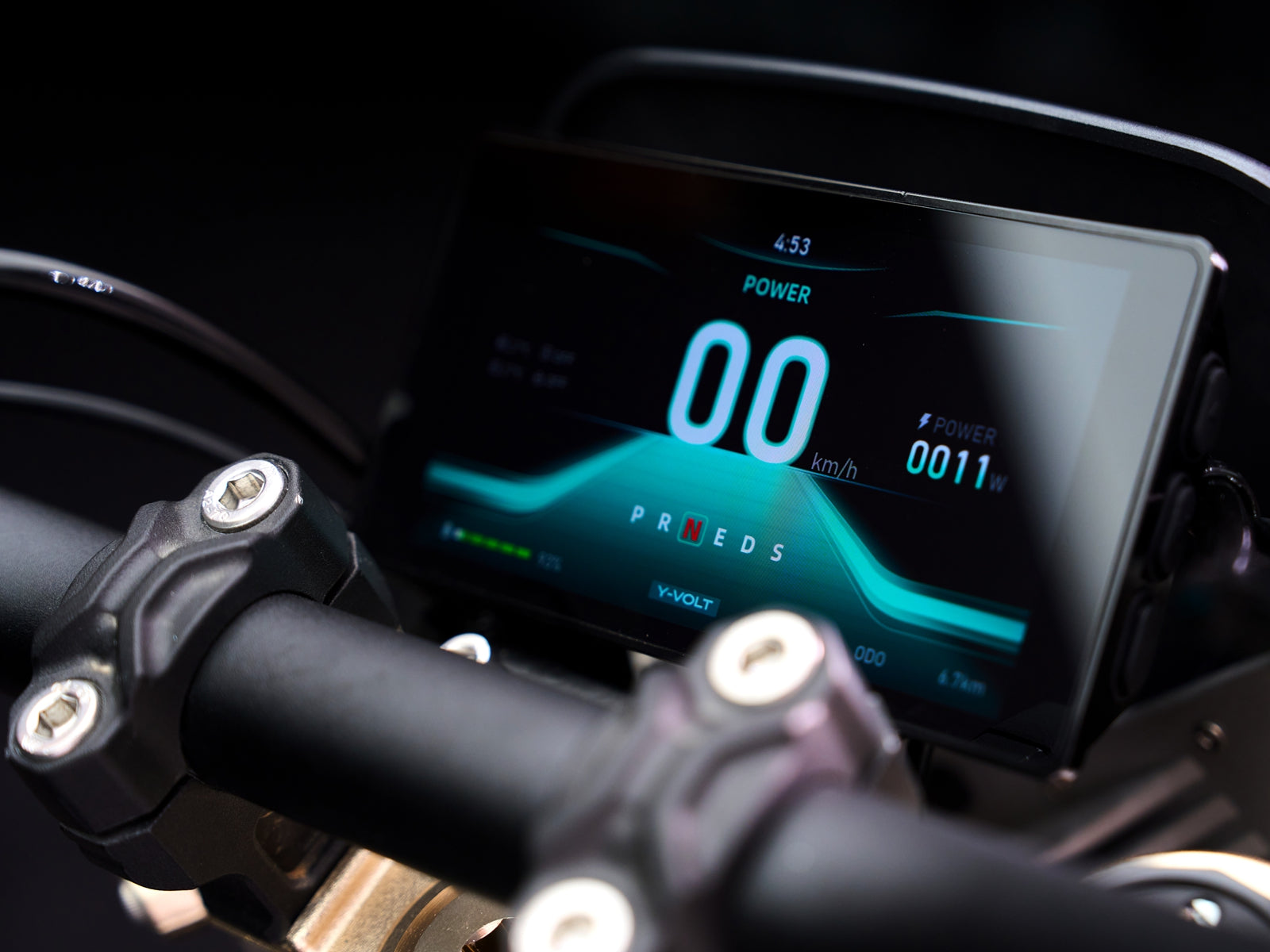

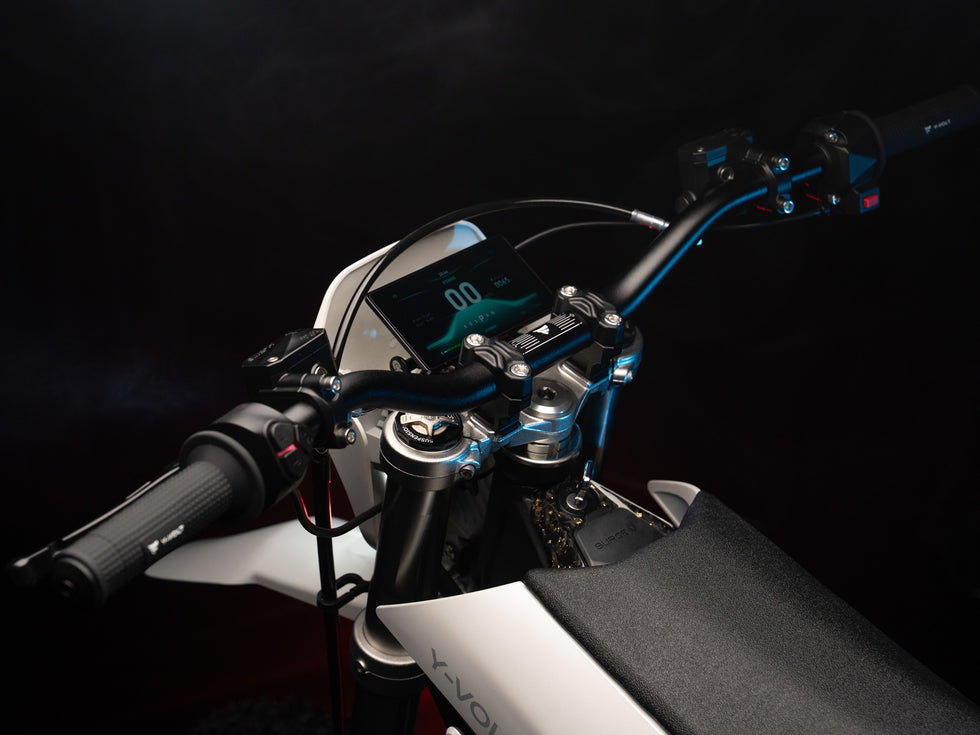

| Display | HD Smart Multi-Function Display |
| NFC | Yes |
| Night Riding Mode | Yes |
| Tip-Over Sensor | Yes |
| Kickstand Sensor | Yes |
| Communication Port | RS-485 + CAN |
| App Features | GPS Positioning, Ride Tracking, Parameter Customization |
| Special Materials | Carbon Fiber Vehicle Lock Cover & Rear Handle Bar |
