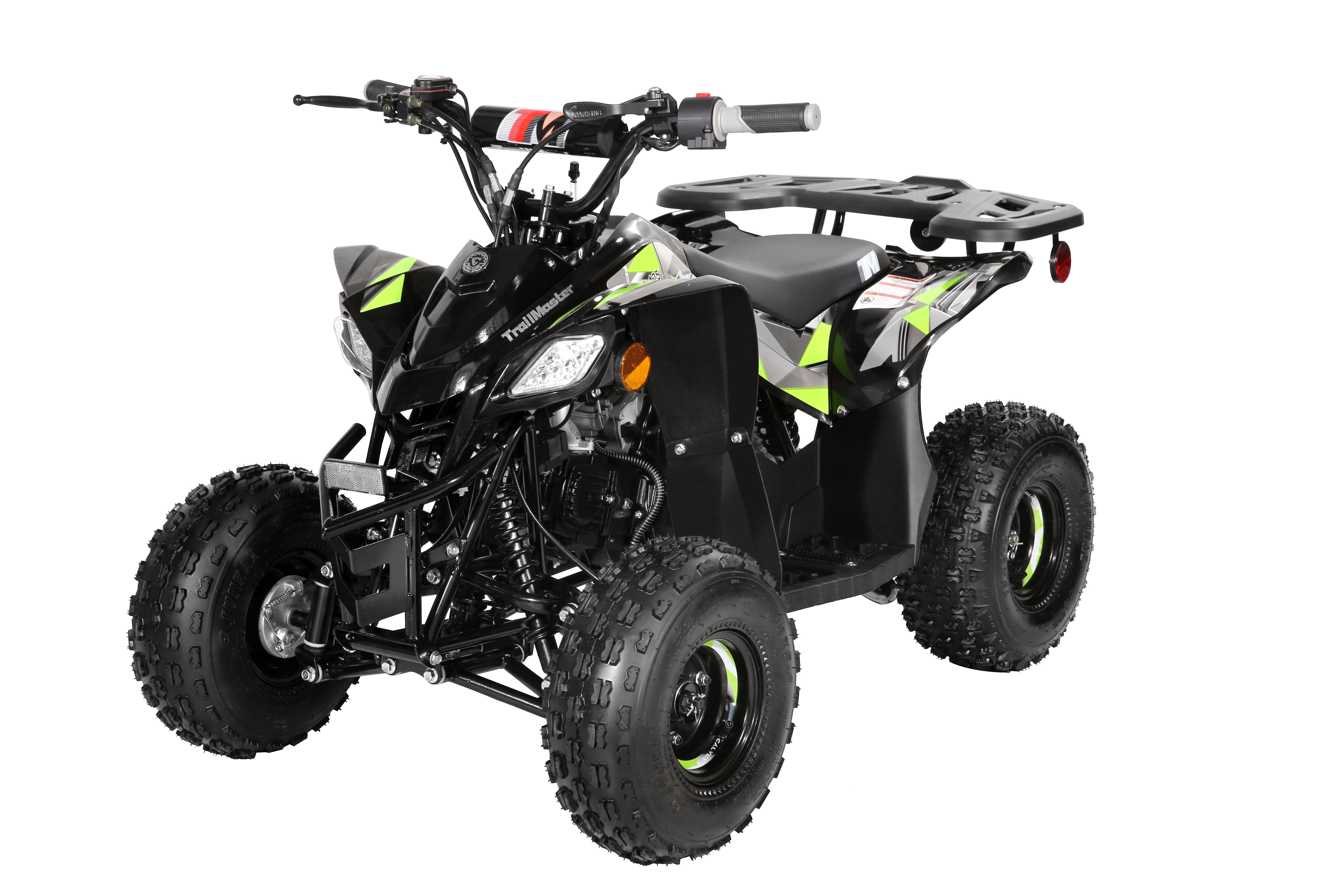

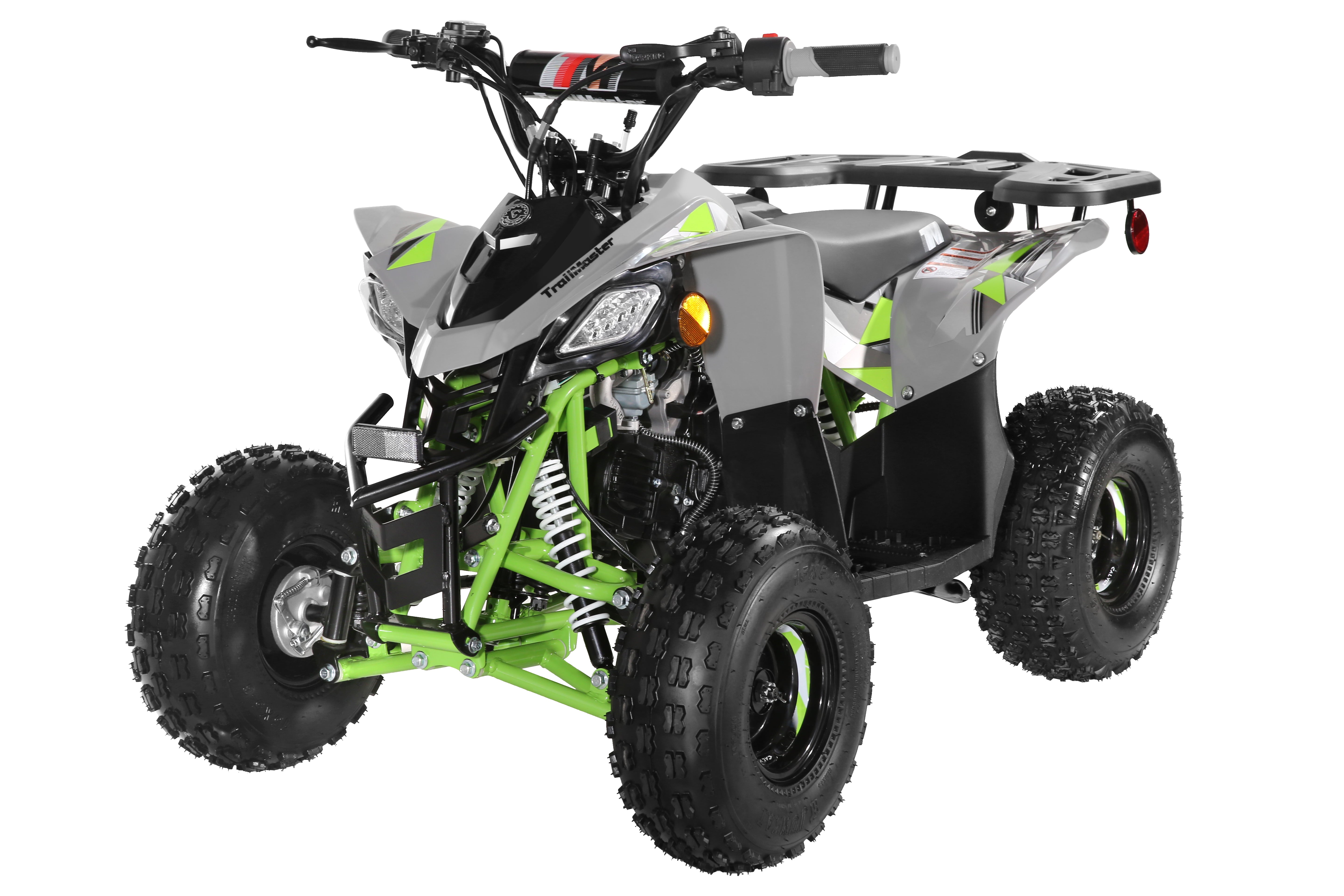

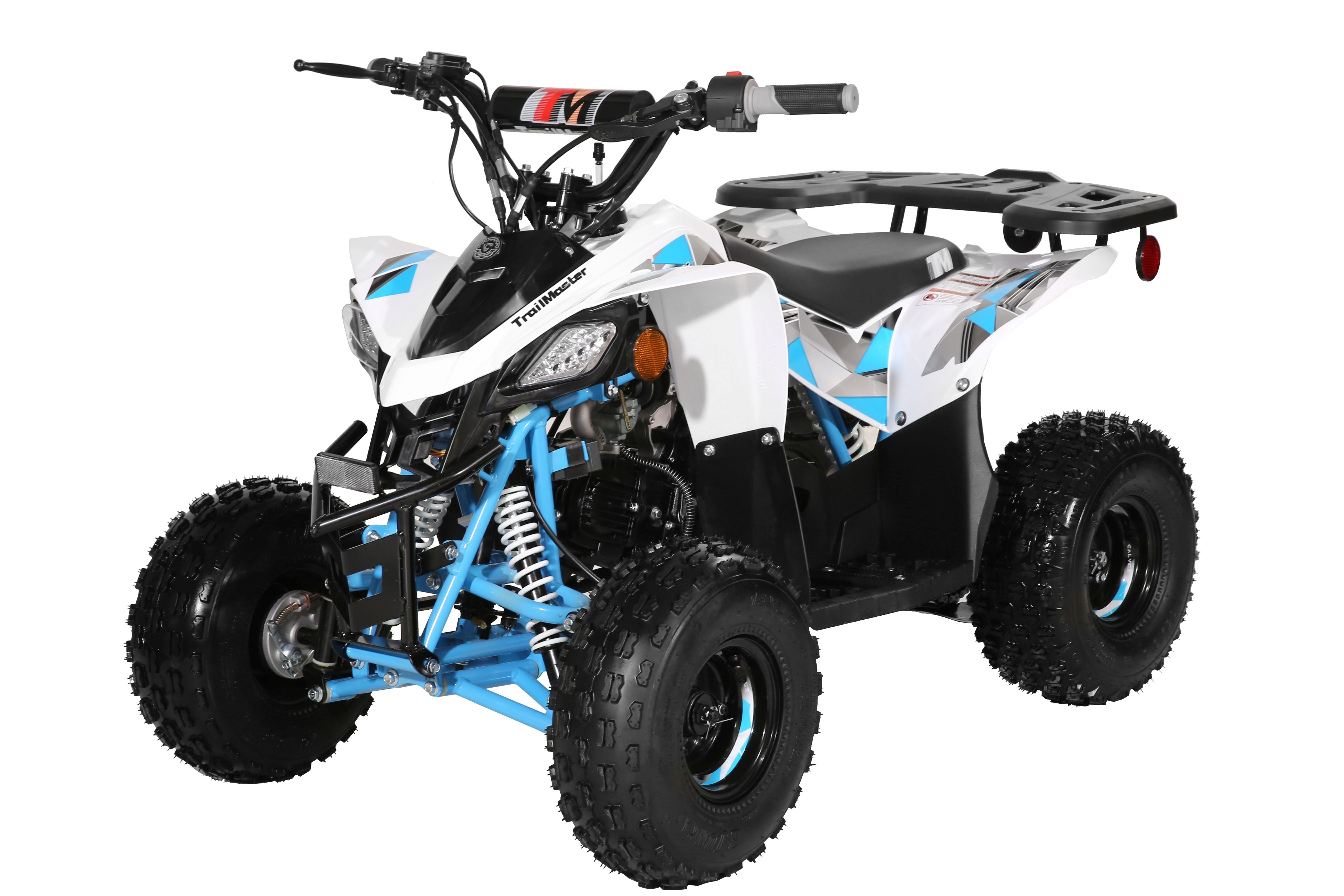

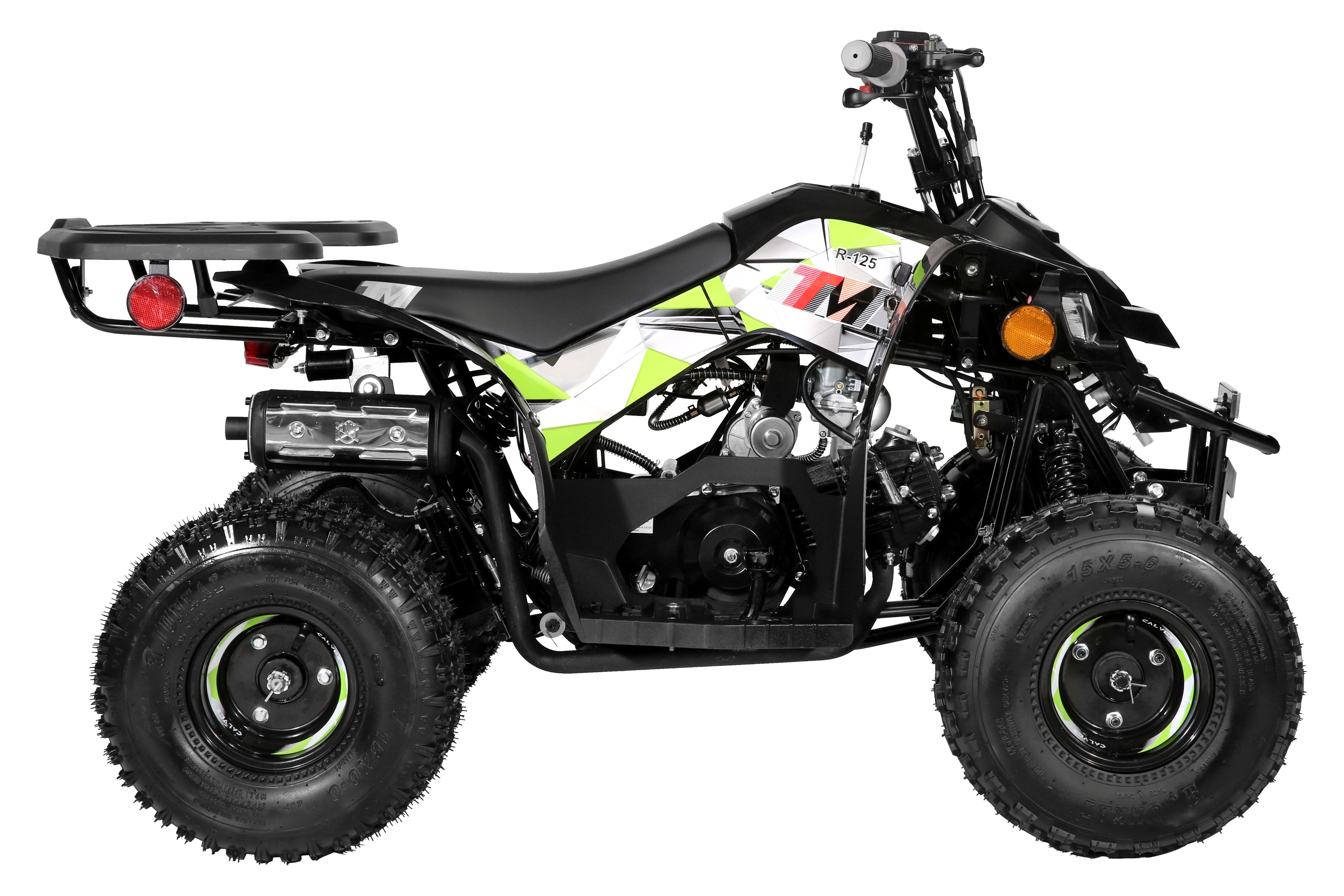

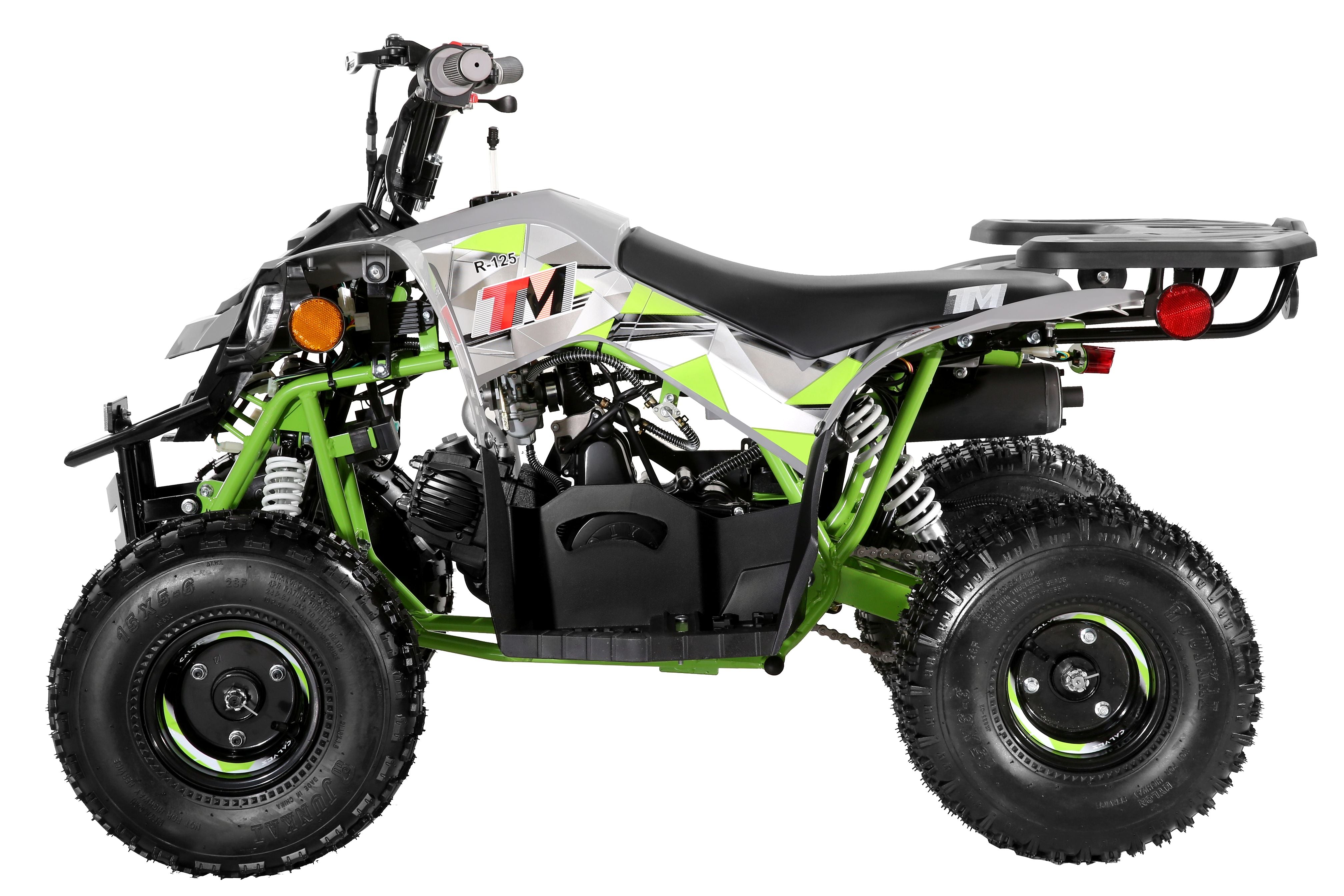

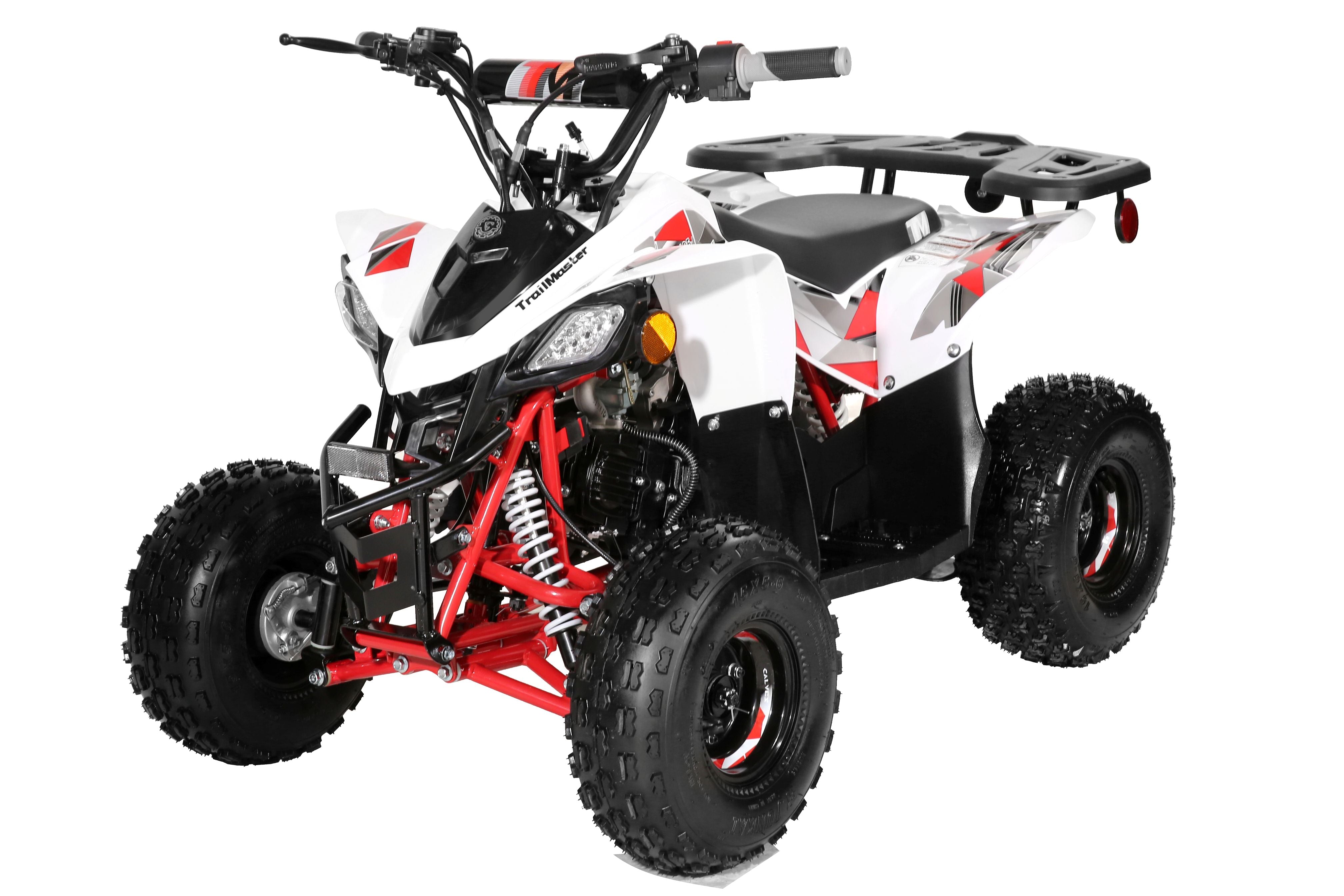

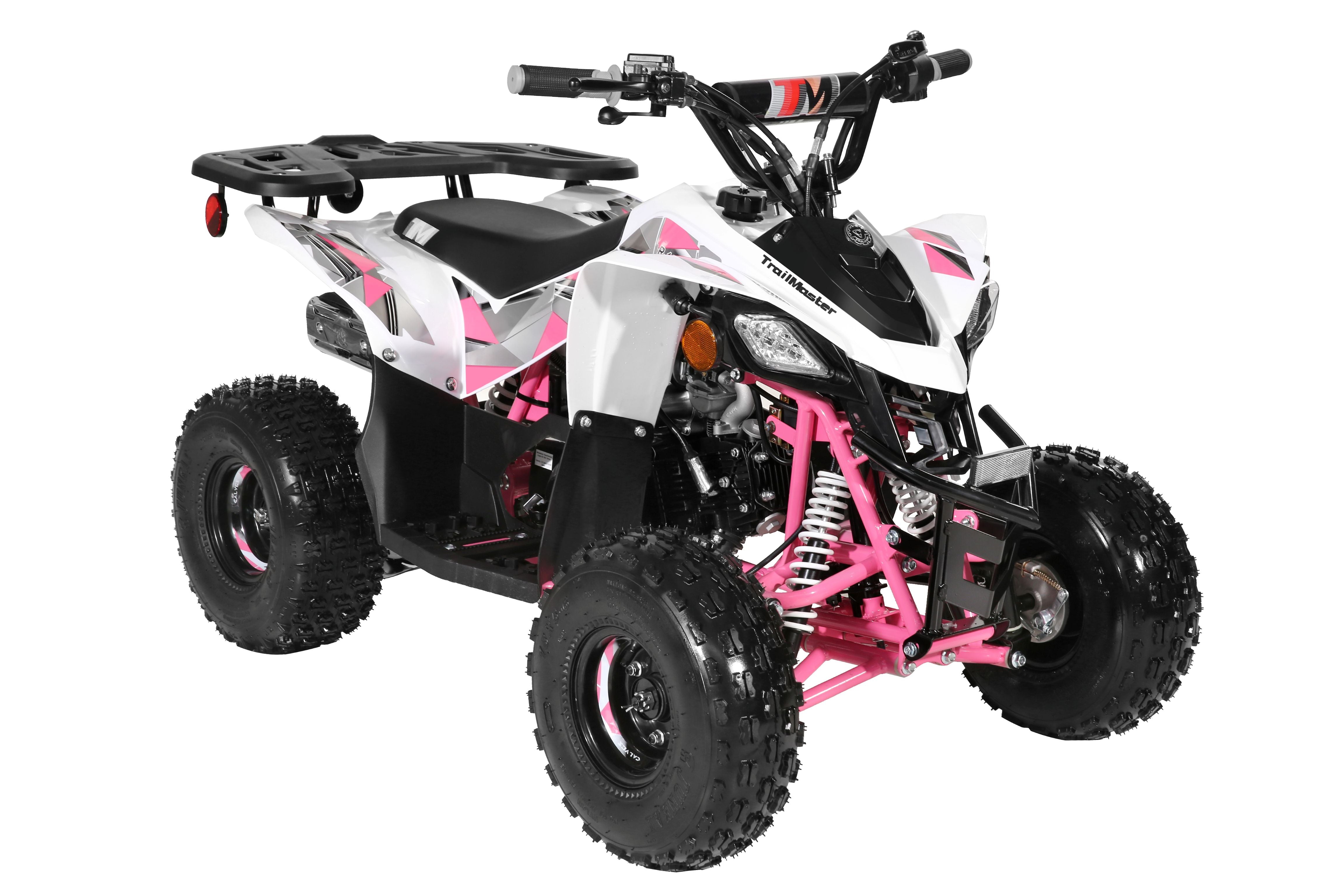

TrailMaster R110 Kids ATV – 110cc Gas-Powered Youth ATV
Get ready for outdoor adventures with the TrailMaster R110 Kids ATV, a compact and easy-to-ride youth ATV built for recreational riding. Powered by a 107cc 4-stroke, air-cooled engine, the R110 combines simple automatic operation with dependable rear-wheel drive, making it a fun choice for young riders under proper adult supervision.
The R110 features electric start, an automatic transmission, front double A-arm suspension, and a solid rear axle for a straightforward and enjoyable riding experience. Its compact dimensions and 23.62-inch seat height make it easy for young riders to handle.
🔥 107cc 4-Stroke Engine
The TrailMaster R110 is powered by a 107cc single-cylinder, air-cooled 4-stroke engine producing up to 4.8 kW at 8,000 RPM. The CDI ignition system and electric start make starting simple and convenient.
🏁 Automatic Transmission
No manual shifting is required. The automatic transmission lets riders focus on steering and controlling the ATV while the rear-wheel-drive system delivers power to the rear wheels.
🛞 Stable Chassis & Suspension
The R110 features double A-arm front suspension and a solid rear axle. Front drum brakes and a rear disc brake provide controlled stopping, while the 15 x 5-6 tires provide a compact footprint suitable for recreational riding.
⚡ Convenient Electric Start
Forget kick-starting. The R110 comes equipped with an electric start system and a 12V 4Ah battery for convenient operation.
📏 Compact Youth-Friendly Design
With a 23.62-inch seat height, the R110 has a compact design suited to younger riders. Its 33.9-inch wheelbase and overall dimensions of 50.2" L x 36.6" W x 35.4" H make it easy to maneuver in appropriate riding areas.
TrailMaster R110 Specifications
| Specification | Details |
|---|---|
| Engine | 107cc 4-Stroke, Air-Cooled, Single Cylinder |
| Displacement | 107cc |
| Max Horsepower | 4.8 kW @ 8,000 RPM |
| Top Speed | Up to 15 mph |
| Ignition | CDI |
| Starting System | Electric Start |
| Transmission | Automatic |
| Final Drive | Chain |
| Drive | Rear-Wheel Drive |
| Front Suspension | Double A-Arm |
| Rear Suspension | Solid Axle |
| Front Brake | Drum |
| Rear Brake | Disc |
| Front/Rear Tires | 15 x 5-6 |
| Fuel Capacity | 2.06 L |
| Battery | 12V, 4Ah |
| Seat Height | 23.62" |
| Ground Clearance | 3.35" |
| Wheelbase | 33.9" |
| Overall Dimensions | 50.2" x 36.6" x 35.4" |
| Maximum Load | 143 lbs |
| Net Weight | 187.44 lbs |
| Gross Weight | 219 lbs |
| Packing Dimensions | 54" x 32" x 30" |
| Recommended Engine Oil | SAE 15W/40 |
Built for Fun. Designed for Control.
The TrailMaster R110 Kids ATV delivers the essentials young riders need for recreational off-road riding: a 107cc 4-stroke engine, automatic transmission, electric start, rear-wheel drive, and a compact chassis.
Please Note: This ATV is intended for off-road recreational use only. Always follow applicable laws and manufacturer guidelines. Riders should wear a properly fitted helmet and appropriate protective gear and should operate the ATV only under responsible adult supervision in a suitable, controlled riding environment.
