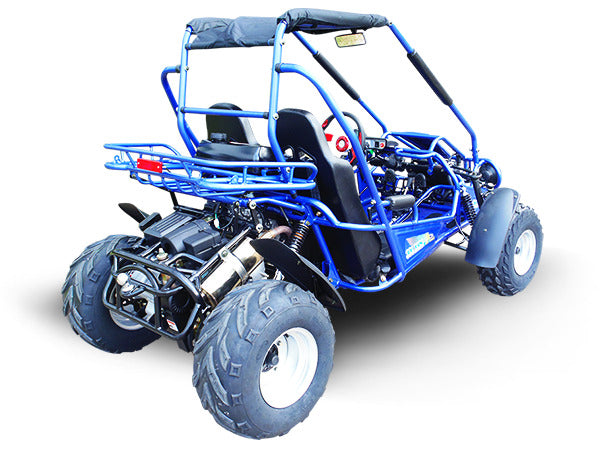

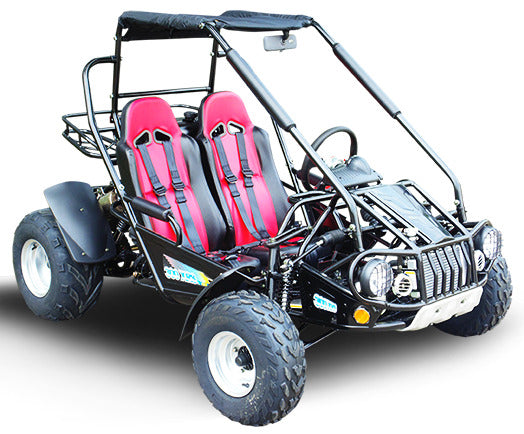

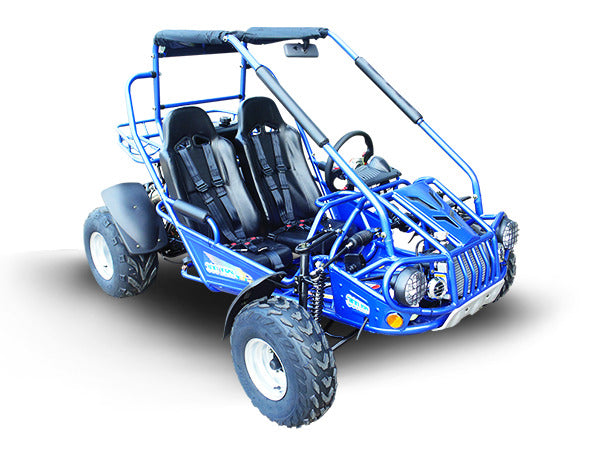

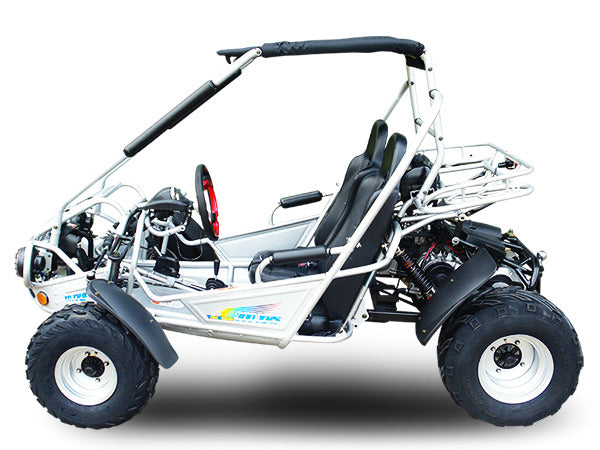

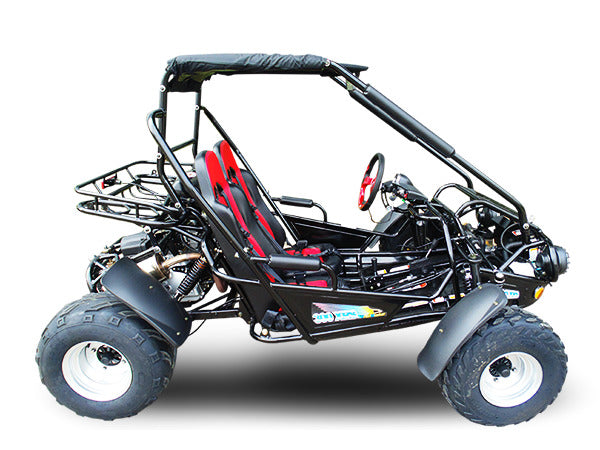

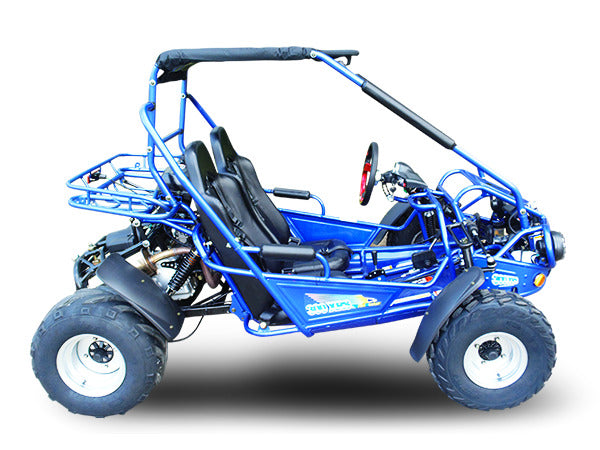

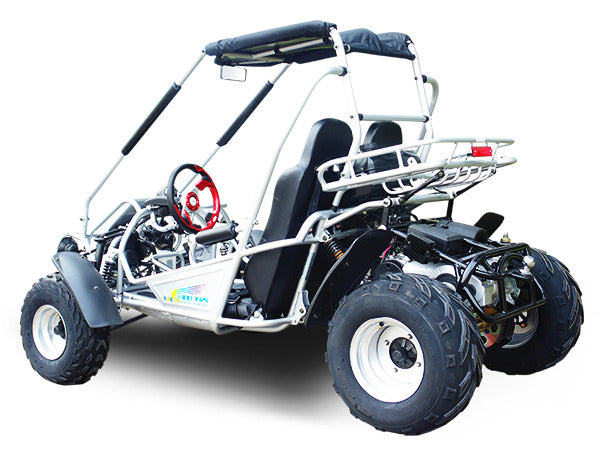

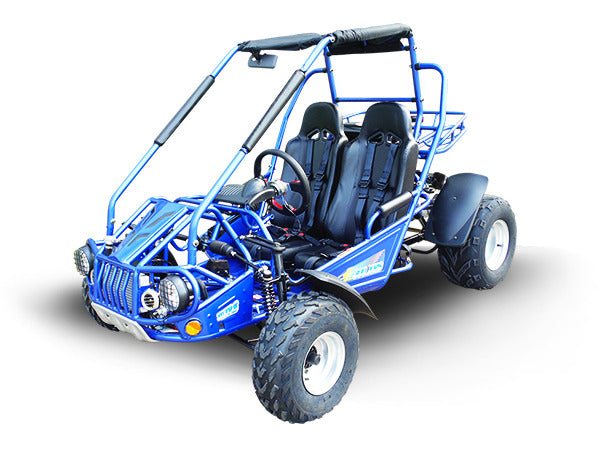

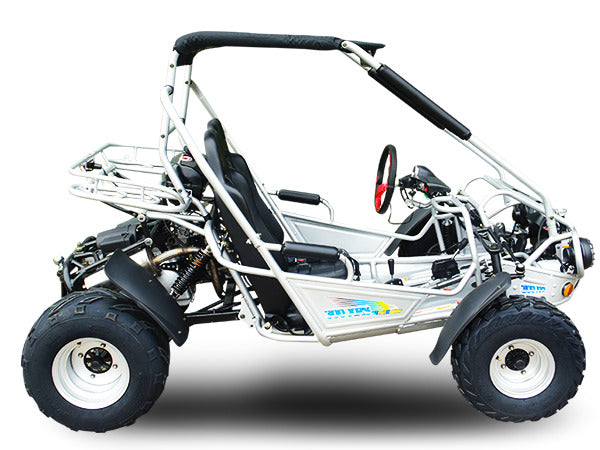

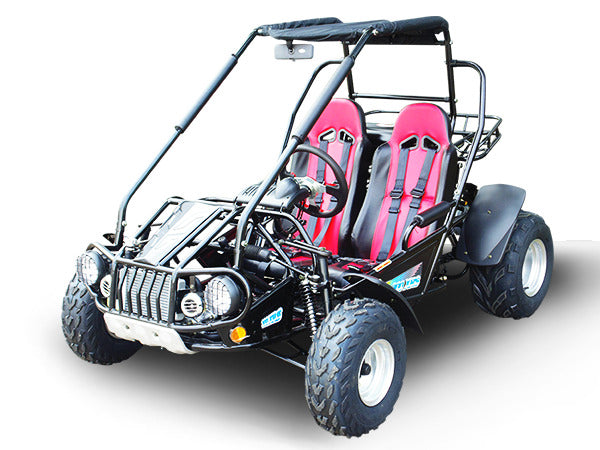

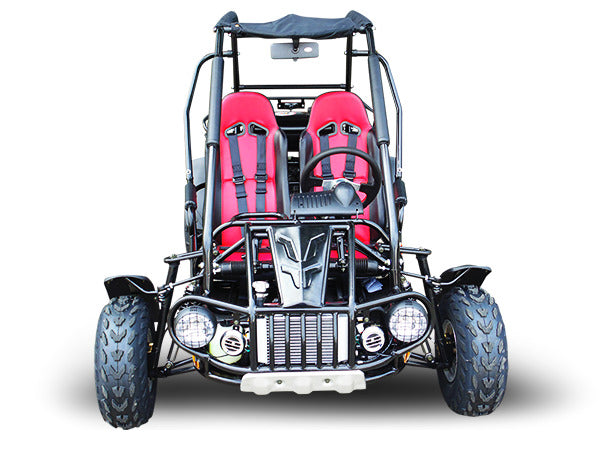

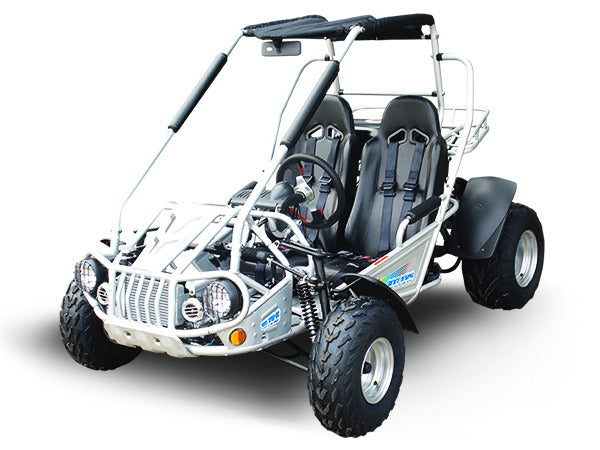

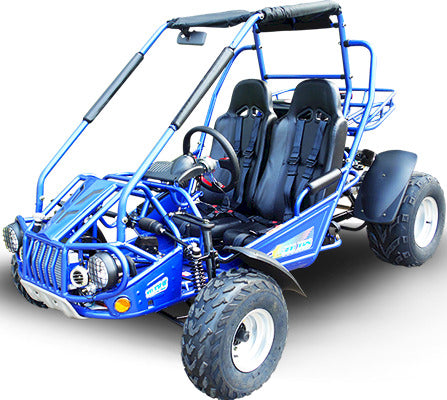

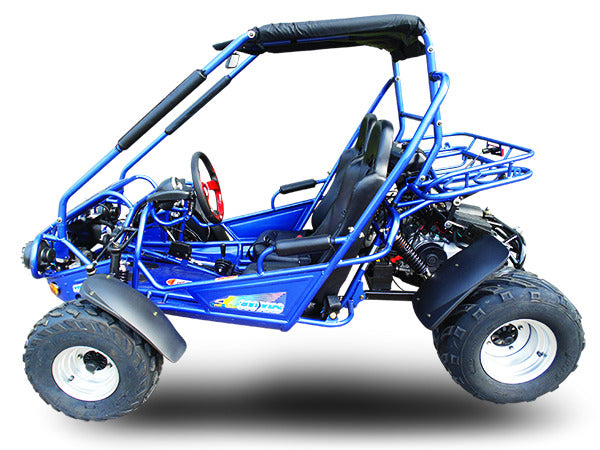

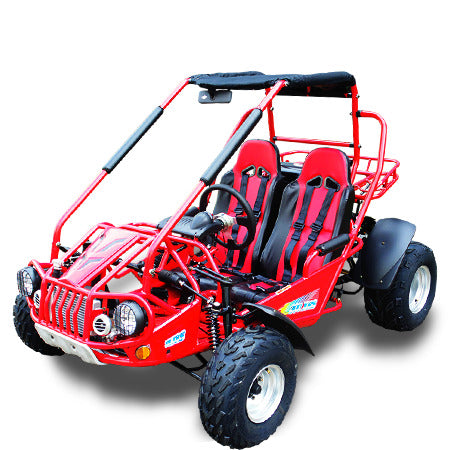

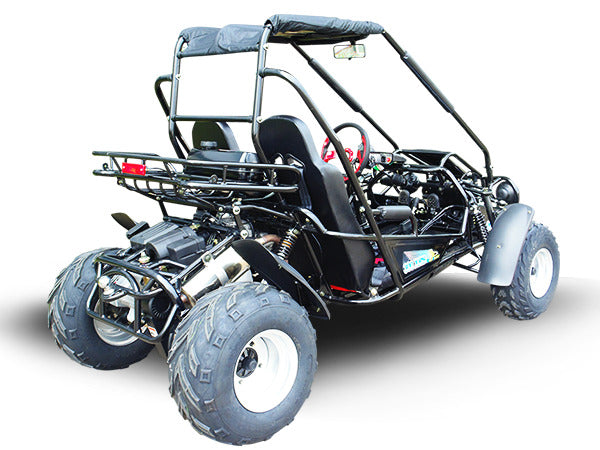

TRAILMASTER 300E XRS Go Kart Information
The TrailMaster 300E XRS Go Kart is a powerful and versatile off-road vehicle designed for adventurous riders. With a robust 17 HP 300cc CVT fully automatic engine featuring reverse gear and liquid cooling, this go-kart is built for performance. Its heavy-duty frame, weighing 608 lbs, can accommodate up to 800 lbs, making it an ideal choice for adult riders seeking a thrilling two-seat experience.
The go-kart boasts an array of features to enhance the riding experience, including a digital speedometer/odometer, stainless steel performance muffler, and a five-point safety seatbelt for security during off-road maneuvers. The adjustable steering wheel and heavy-duty front and rear shock absorbers provide a customized and comfortable ride.
Navigating trails is a breeze with the TrailMaster 300E XRS's exceptional handling, attributed to its rack and pinion steering wheel, front and rear hydraulic disc brakes, and four-wheel fenders. The large gas tank ensures extended adventures, while the trailer hitch and large rear utility rack offer practicality for hauling gear.
Equipped with a 4-stroke, single-cylinder, air-cooled engine, the TrailMaster 300E XRS delivers a maximum speed of 50 mph and can conquer inclines of up to 15 degrees. The go-kart features an automatic CVT with reverse, chain-driven dual-wheel system, and dual A-arm front suspension coupled with a swing-arm rear suspension for a smooth and controlled ride.
The TrailMaster 300E XRS Go Kart combines power, durability, and safety, making it a standout choice for off-road enthusiasts seeking an adrenaline-packed adventure on diverse terrains. Please note that all specifications are subject to change without notice.
More Features
| HP | 17 HP Powerful 300cc CVT fully automatic with reverse engine, Liquid cool |
|---|---|
| Frame | Heavy duty frame, net weight 608 lbs, max load 800 lbs, adult size 2-seat go kart |
| Speedometer/Odometer | Digital speedometer/odometer |
| Muffler | Stainless steel performance muffler |
| Safety Seatbelt | Five-point safety seatbelt |
| Steering Wheel | Adjustable steering wheel |
| Turning Radius | Handled extremely well on trails, only Min. 229 inches turning radius. |
| Tires | Big tires: F / R: 20 x 7-8 / 21 x 10-10 |
| Sunshade | Bikini sunshade top |
| Shock Absorber | Adjustable heavy duty front and rear shock absorber |
| Steering System | Rack and pinion steering wheel |
| Brakes | Front and rear hydraulic disc brake 4-wheel fenders |
| Trailer Hitch | Trailer hitch |
| Gas Tank | Large gas tank |
| Horn | Horn |
| Roll Cage Padding | Padding over roll cage |
Engine Information
| Engine Type | 4-stroke, single cylinder, air cooled |
|---|---|
| Displacement | 300cc |
| Output | Max. 17.4HP / 6500rpm |
| Torque | 16 lb ft / 5000rpm |
| Bore x Stroke | 2.85 x 2.63 inches |
| Max Speed | 50mph |
| Climbing Ability | 15 degrees |
| Turning Radius | Min Turning Radius: 229 inches |
| Ignition | C.D.I |
| Starting System | Electric Start |
| Battery | 12V 10Ah |
| Gear Oil | MoS2&W-2WD-4D |
General Information
| Clutch | Automatic CTV with Reverse |
|---|---|
| Driveline / Driving Wheel | Chain / Dual Wheel Drive |
| Suspension (Front) | Dual A-arm |
| Suspension (Rear) | Swing Arm |
| Brakes (Front) | Hydraulic brakes / Disc |
| Brakes (Rear) | Hydraulic brakes / Disc |
| Tires (Front) | 20 x 7-8 |
| Tires (Rear) | 22 x 10-10 |
| Fuel Capacity | 2.25 gal |
Please note: All specifications are subject to change without notice.
