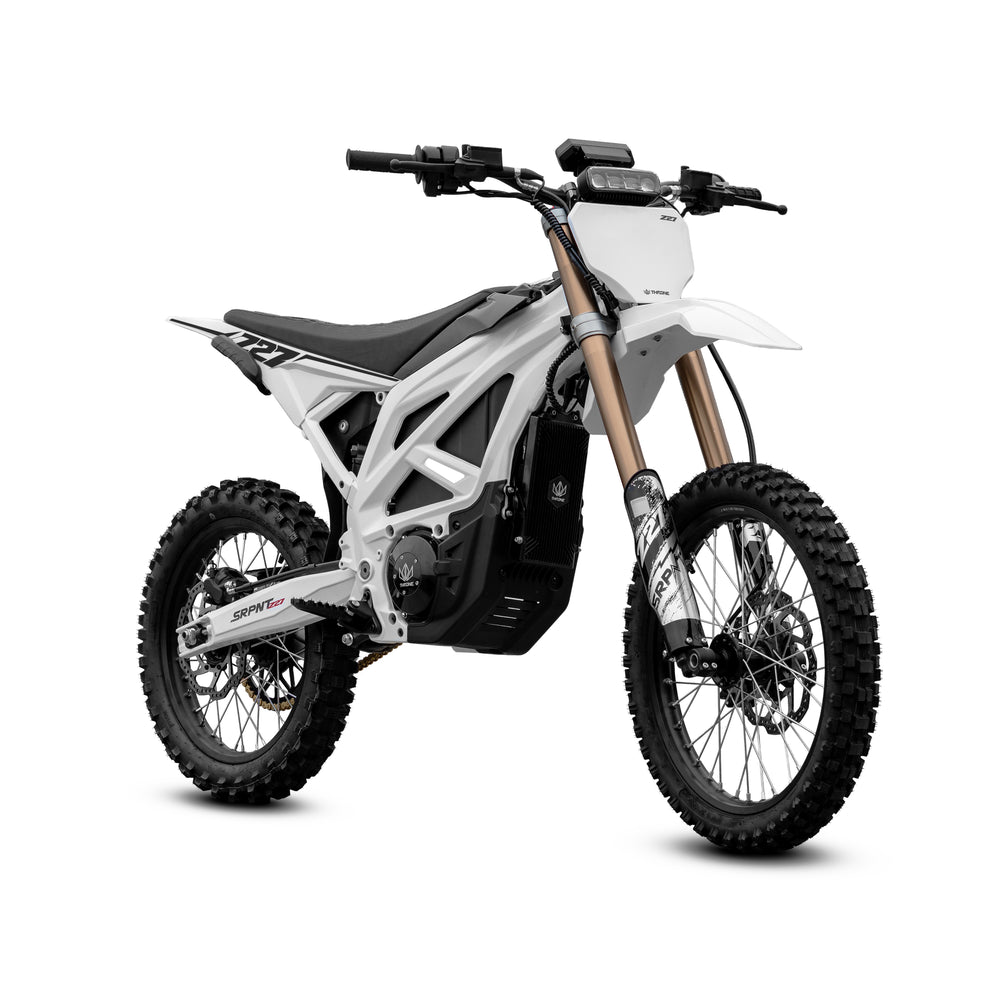

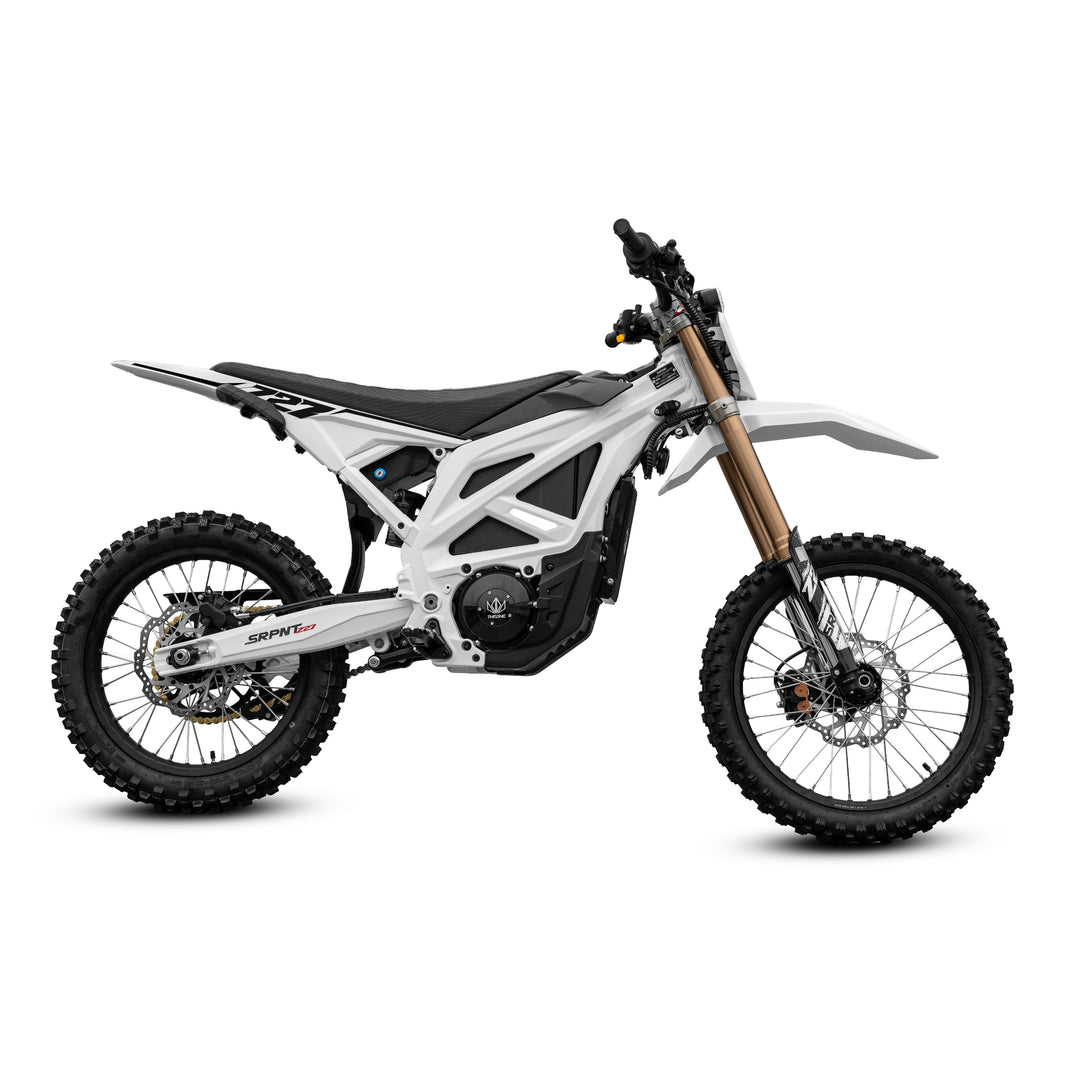

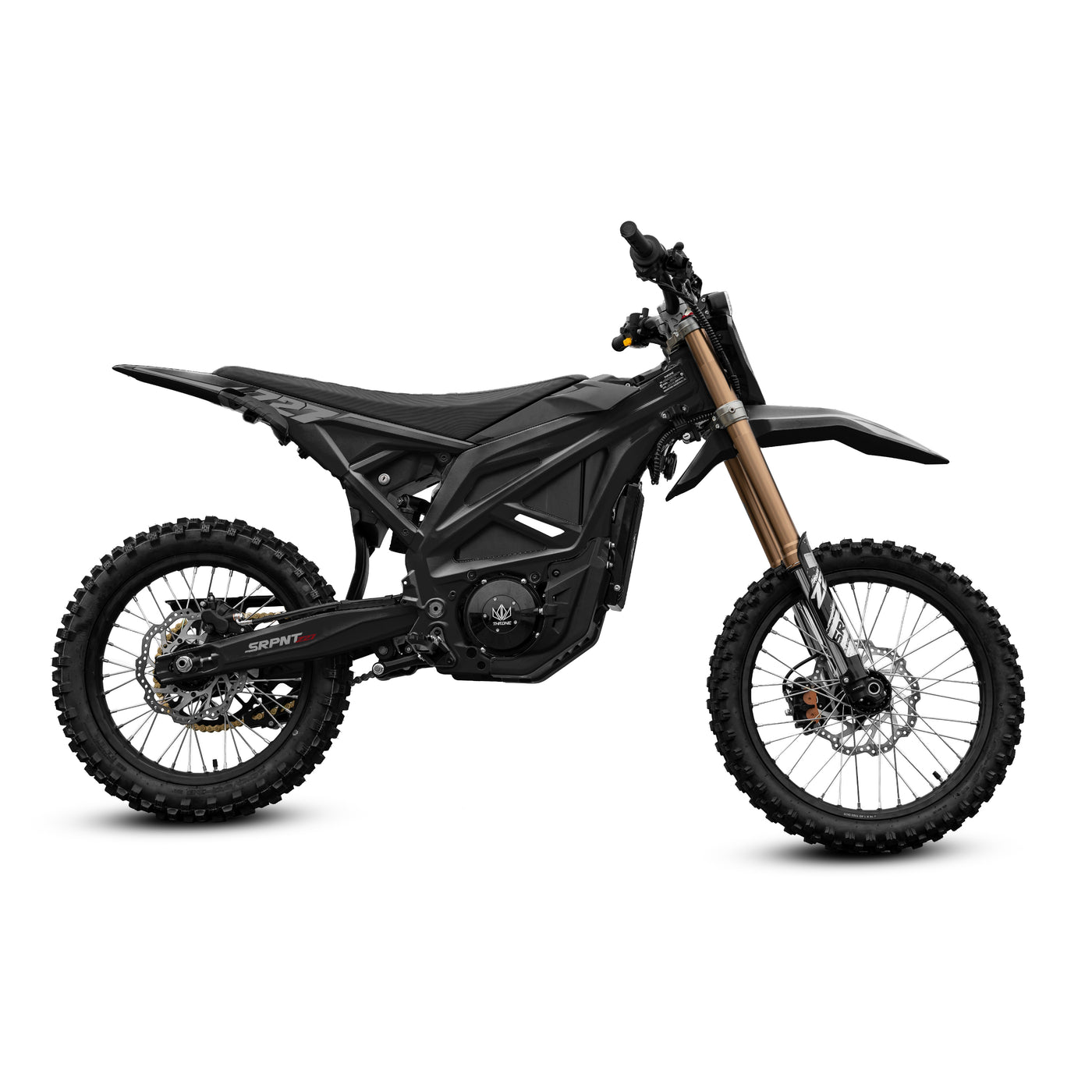

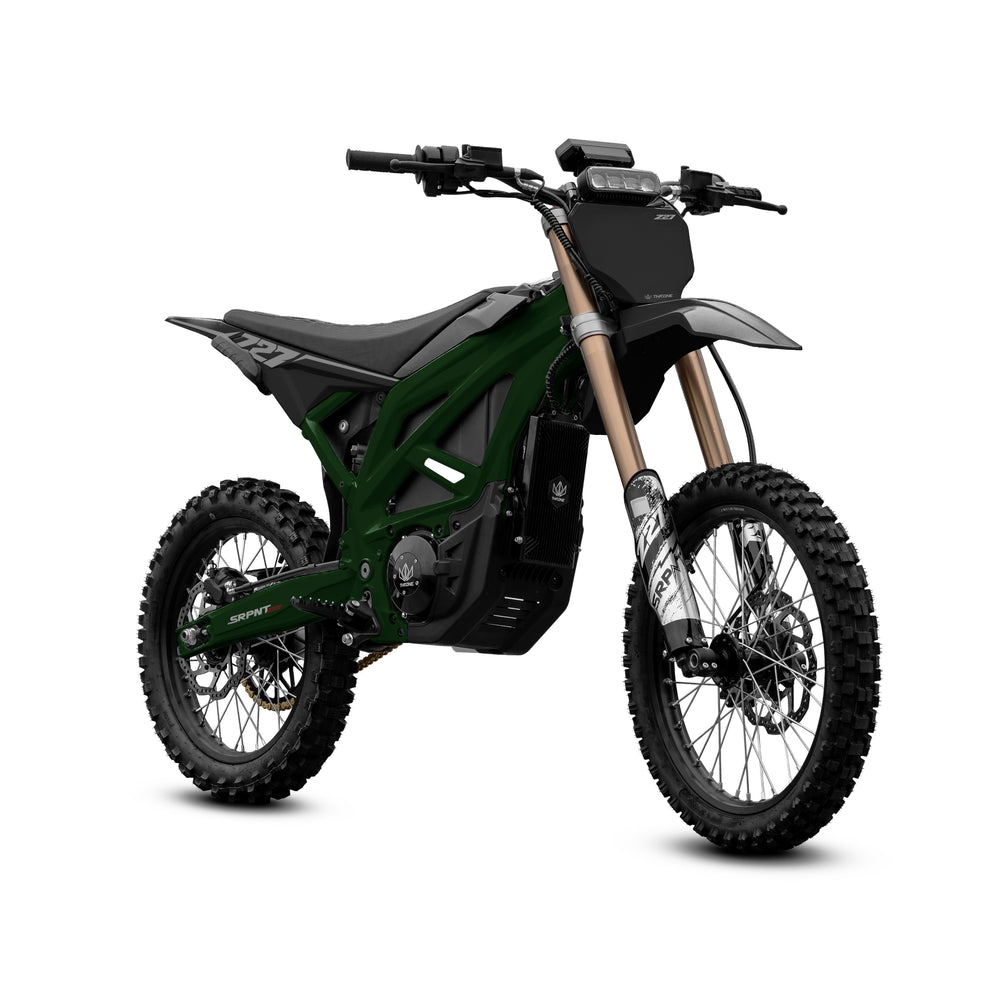

SRPNT V27 E-Moto – 27KW 72V 60Ah Electric Dirt Bike
Dominate off-road trails with the SRPNT V27 E-Moto, a high-performance electric dirt bike engineered for riders who demand serious power, speed, and trail capability. Powered by a massive 27KW mid-mounted motor and a 72V 60Ah Samsung battery, the SRPNT V27 delivers aggressive acceleration and an impressive top speed of up to 80 MPH.
Built for demanding off-road environments, the SRPNT V27 combines a forged 6061 T4 & T6 aluminum chassis with an inverted front suspension fork offering 240mm of travel and a KKE rear suspension linkage system. The result is a rugged platform designed to provide stability, control, and confidence across challenging terrain.
27KW Mid-Mounted Motor
At the heart of the SRPNT V27 is a powerful 27KW mid-mounted motor designed to provide strong acceleration and responsive power delivery. With a 72V DC operating voltage and up to 155Nm of peak torque, this electric dirt bike is built for high-performance off-road riding.
High-Capacity Samsung Battery
The SRPNT V27 is equipped with a 72V 60Ah battery featuring Samsung cells. With a rated life of approximately 600 cycles and a 10A charger, the battery system is designed to support extended riding sessions and consistent performance.
Multiple Riding Modes
Choose the power delivery that fits your riding conditions with four selectable modes: High, Drive, Eco, and Reverse. This flexible setup allows riders to adjust the bike's performance depending on the terrain and riding situation.
Heavy-Duty Suspension
The SRPNT V27 features an inverted front suspension fork with an impressive 240mm of travel, paired with a KKE suspension linkage system at the rear. This suspension combination is designed to absorb impacts and maintain stability when riding over rough and uneven terrain.
Forged Aluminum Alloy Chassis
The chassis and swingarm are constructed from No. 6061 T4 & T6 aluminum and forged under 3,000 tons of pressure. A baked-paint finish provides a durable surface while complementing the aggressive off-road styling.
Off-Road Performance
With a claimed top speed of 80 MPH, 300mm of ground clearance, 19-inch front and 18-inch rear alloy hubs, and a maximum climbing capability of 65 degrees, the SRPNT V27 is built for riders seeking serious off-road performance.
Rider-Focused Features
The bike also includes a 12V CQC horn, USB and Type-C connectivity, LED front and rear lighting, and a side stand equipped with a kill switch. These features add convenience and functionality while maintaining the bike's performance-focused design.
Specifications
| Motor | |
|---|---|
| Motor | 27KW |
| Mounting Position | Mid |
| Motor Weight / External Diameter | 12.75 kg / 164.5mm |
| Cooling Method | Air-Cooling |
| Controller | |
| Controller Type | PMSM |
| Dimensions | 271 x 128 x 58mm |
| Power Modes | High / Drive / Eco / Reverse |
| Motor Power System | |
| Rated Voltage | 72V DC |
| Rated Torque / Peak Torque | 34 / 155Nm |
| Motor Shaft Output Torque @ 1000RPM | 54Nm |
| Rated Rotation Speed | 6800 RPM |
| Transmission | |
| Gear Ratio | 13:48 |
| Transmission | 520 Drive Chain |
| Electrical Components | |
| Horn | 12V CQC |
| Battery | 72V 60Ah Battery with Samsung Cells |
| Battery Life | 600 Cycles |
| Charger | 10A |
| Charging Time | 3–5 Hours |
| USB Connection | USB + Type-C |
| LED Headlight & Rear Light | Yes |
| Frame & Suspension | |
| Chassis / Swingarm Material | No. 6061 T4 & T6 Aluminum |
| Chassis Construction Method | Forged by 3,000 Tons of Pressure |
| Chassis Surface & Color Processing | Baked Paint |
| Front Suspension | Inverted Suspension Fork with 240mm Travel |
| Rear Shock Absorber | KKE Suspension Link System |
| Wheels & Tires | |
| Wheel Type & Size | Front: 1.4-19 / Rear: 1.85-18 Alloy Hubs |
| Tire Size | Front: 80/100-19 / Rear: 100/90-18 |
| Performance & Dimensions | |
| Top Speed | 80 MPH |
| Net Weight | 210 lbs |
| Maximum Climbing Capability | 65 Degrees |
| Rear Sprocket | 48T |
| Side Stand | Yes, with a Kill Switch |
| Ground Clearance | 300mm |
| Wheelbase | 1380mm |
| Seat Height | 880mm |
Order the Throne SRPNT V27 E-Moto today and experience high-performance electric off-road riding.
```
