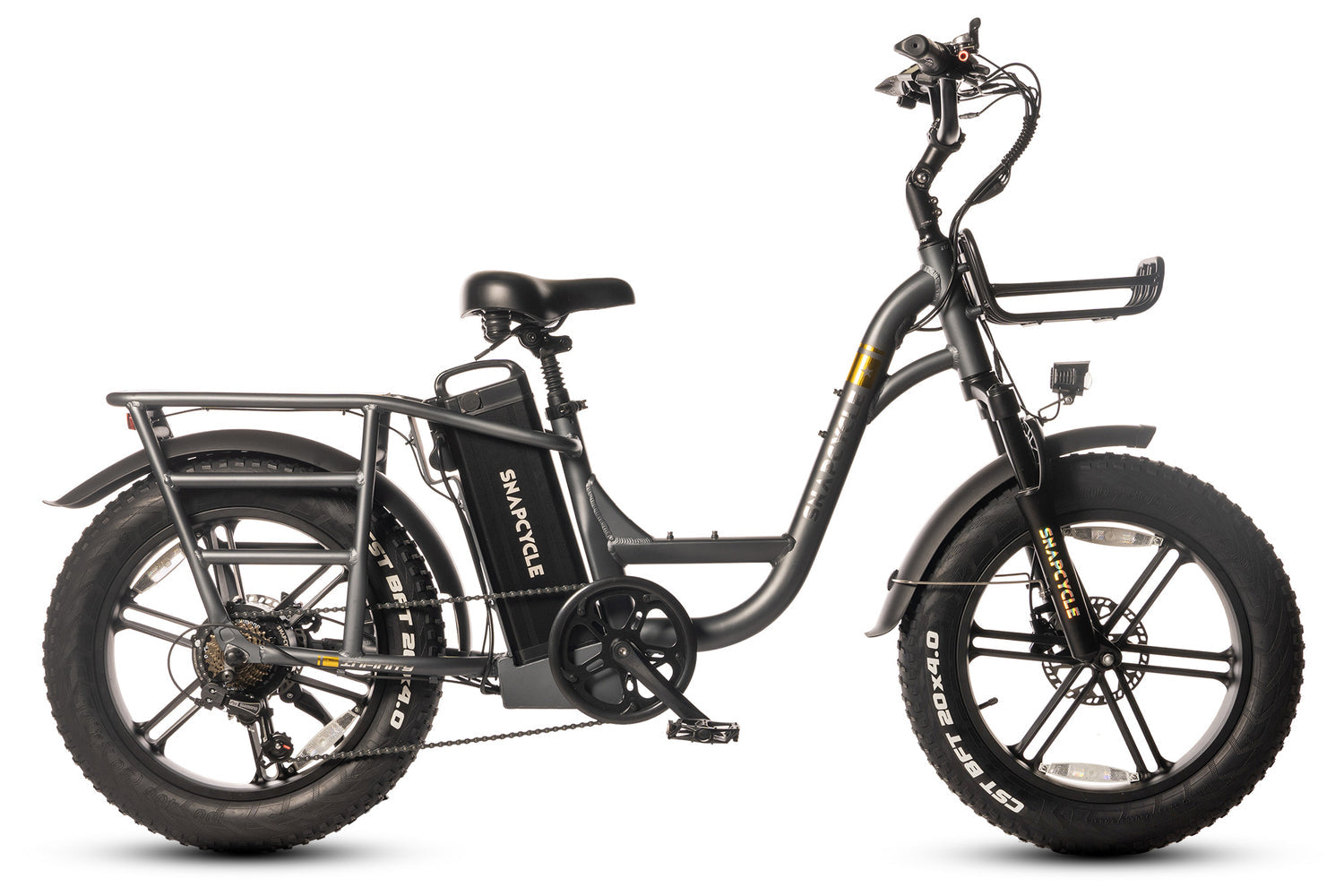

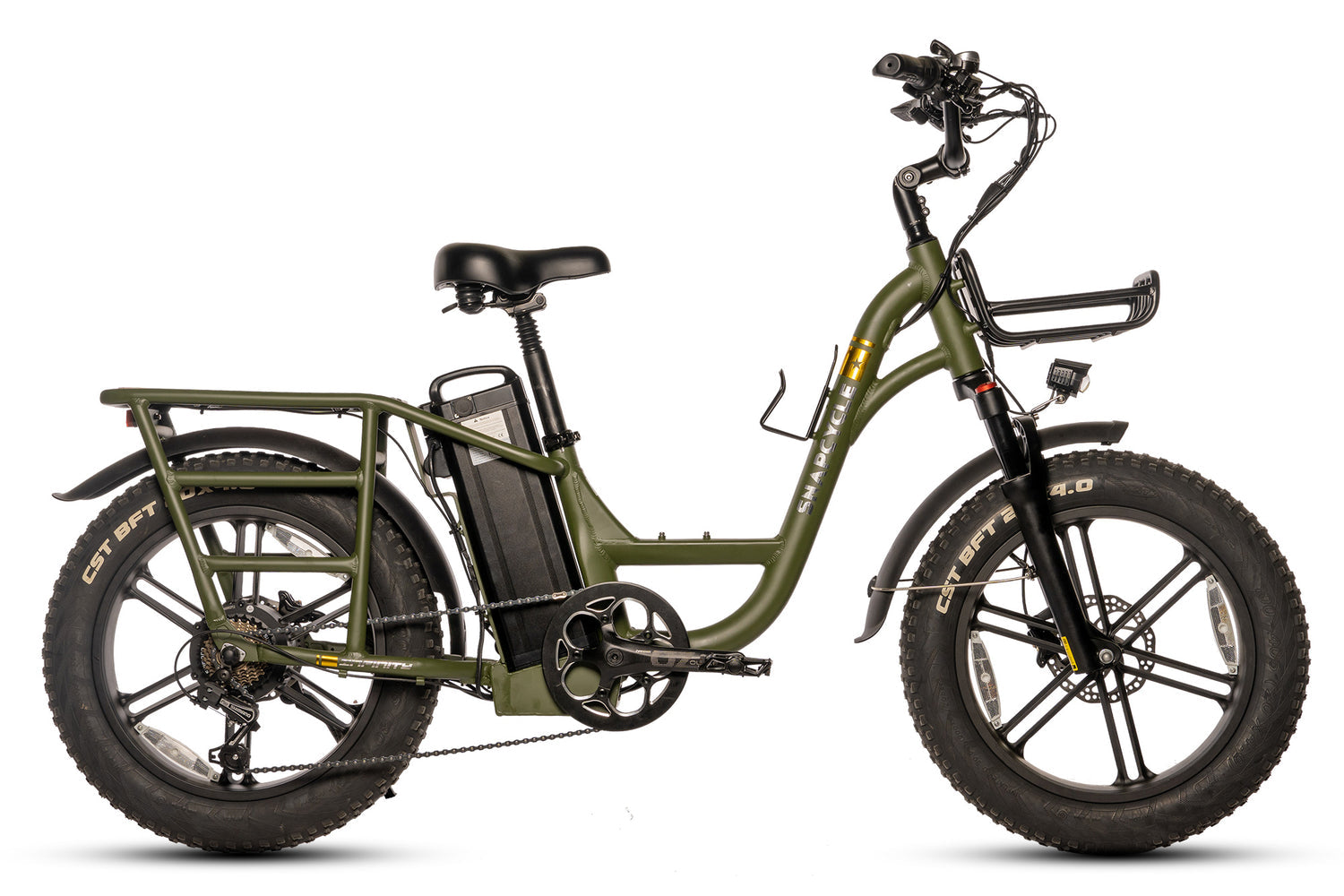

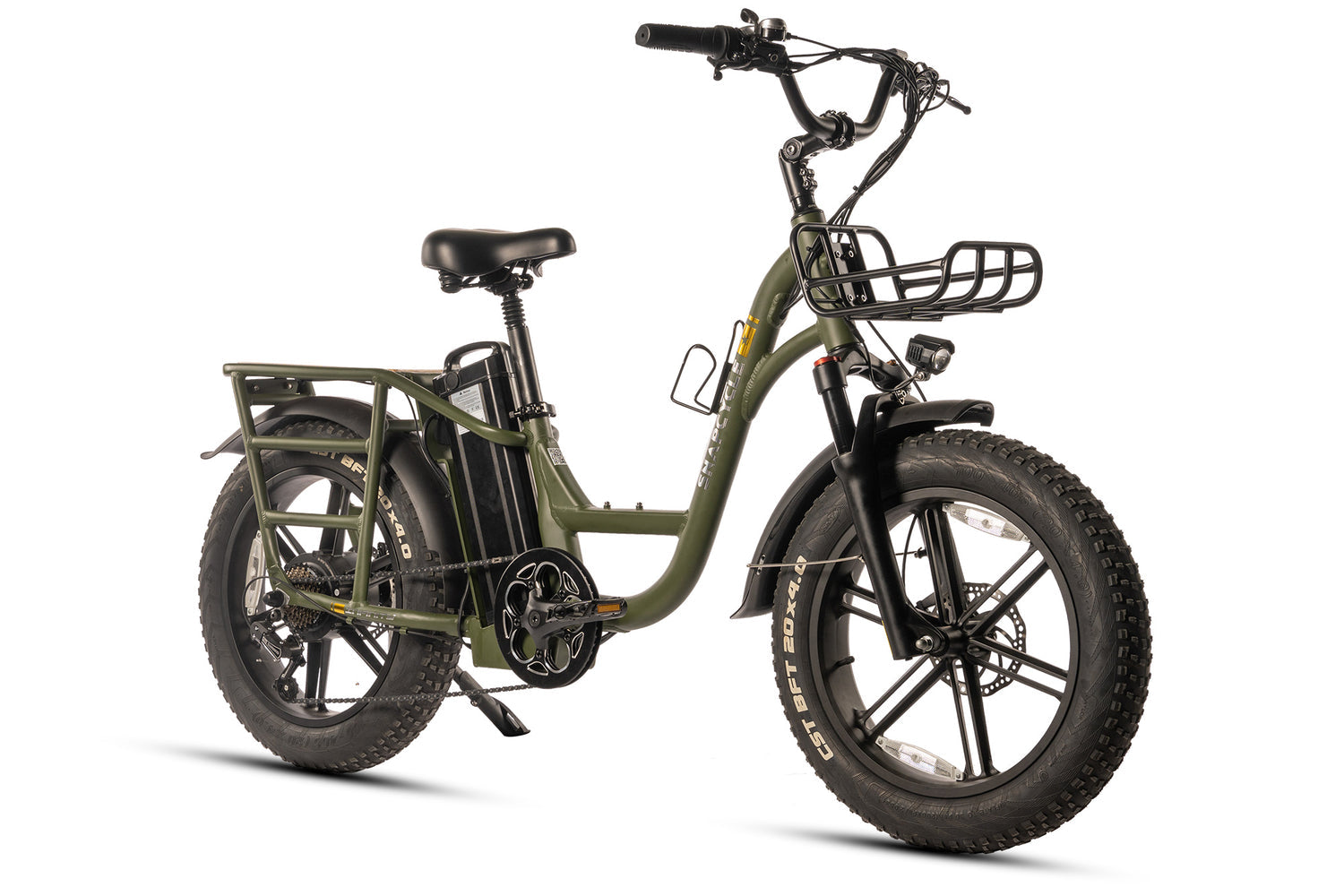

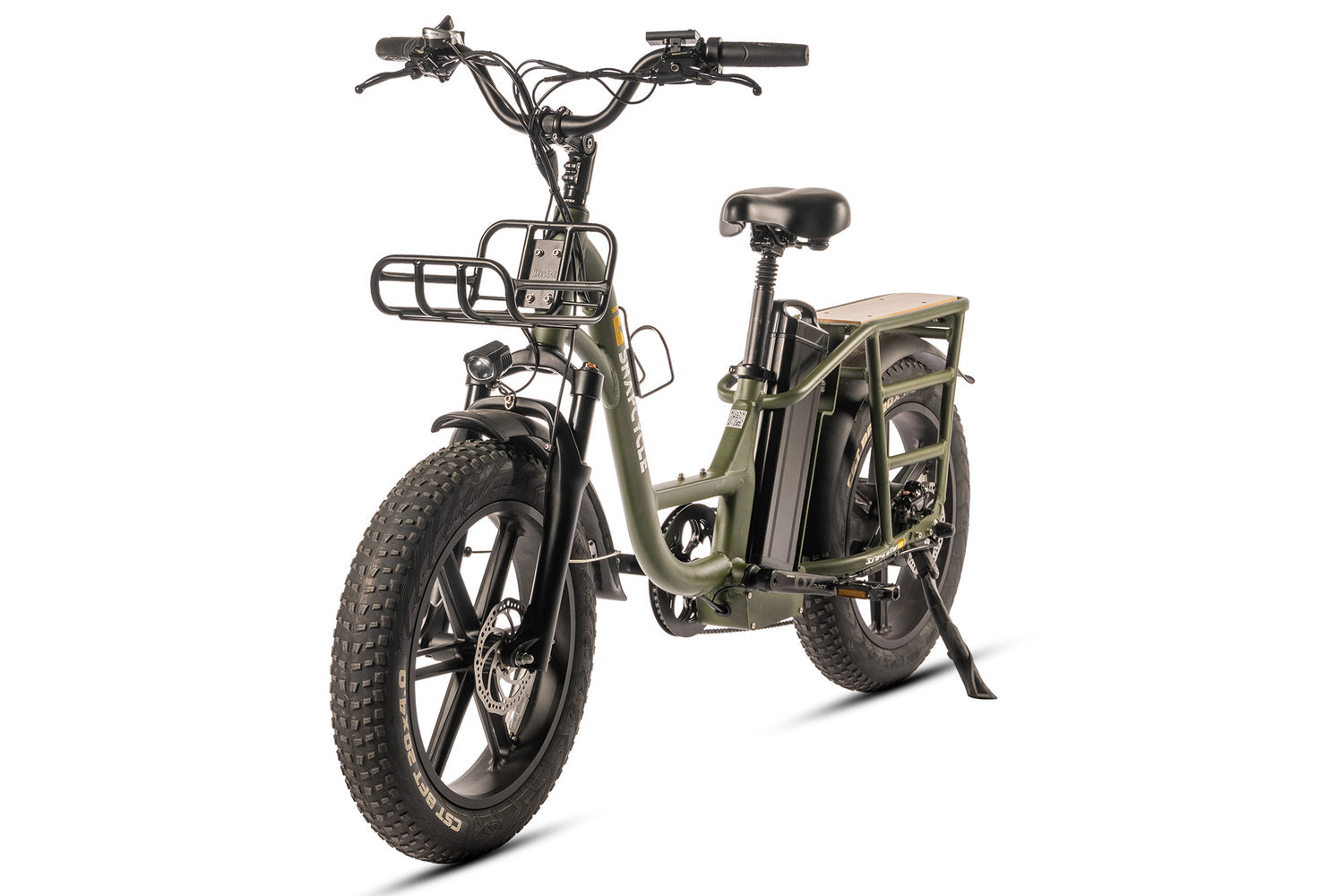

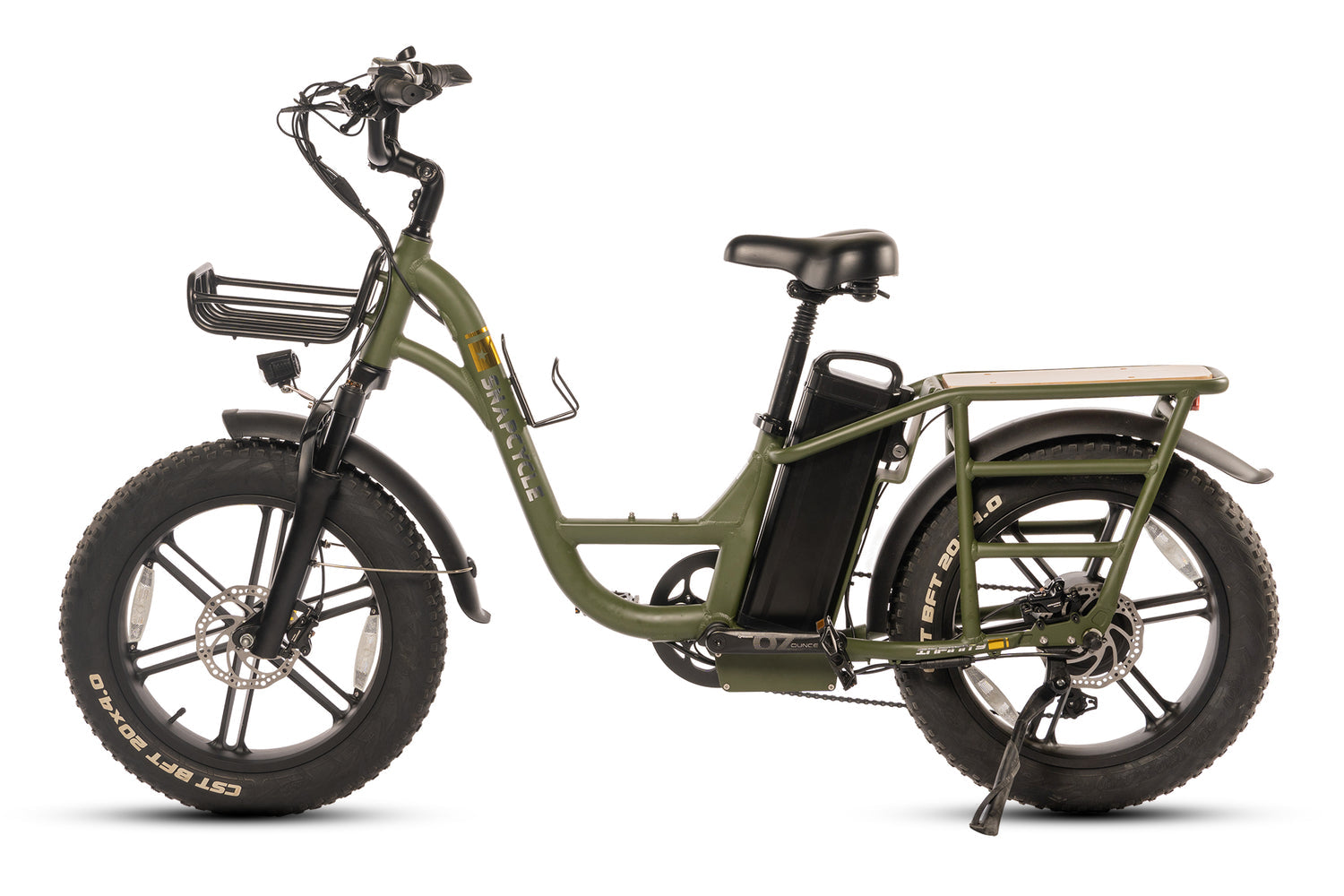

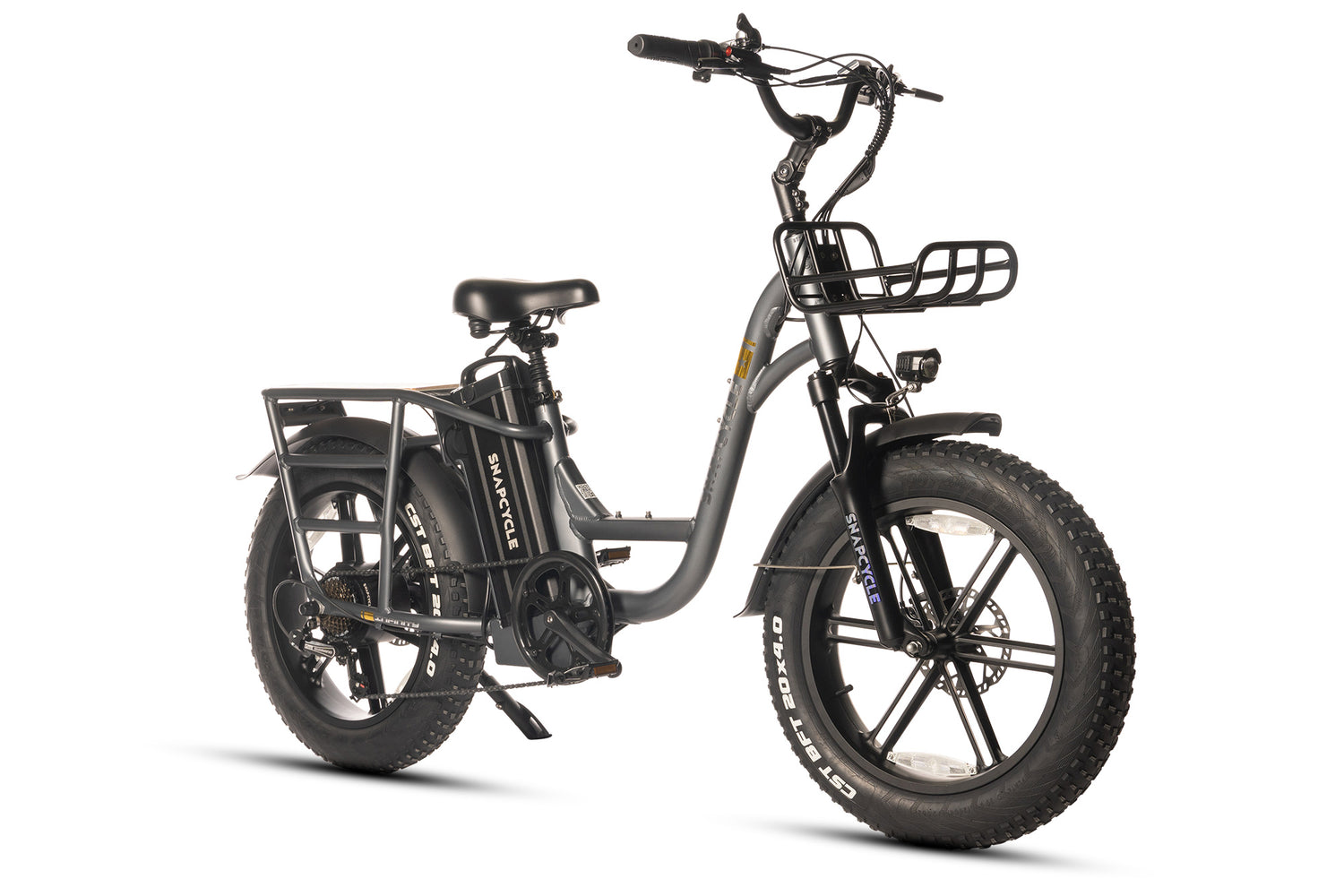

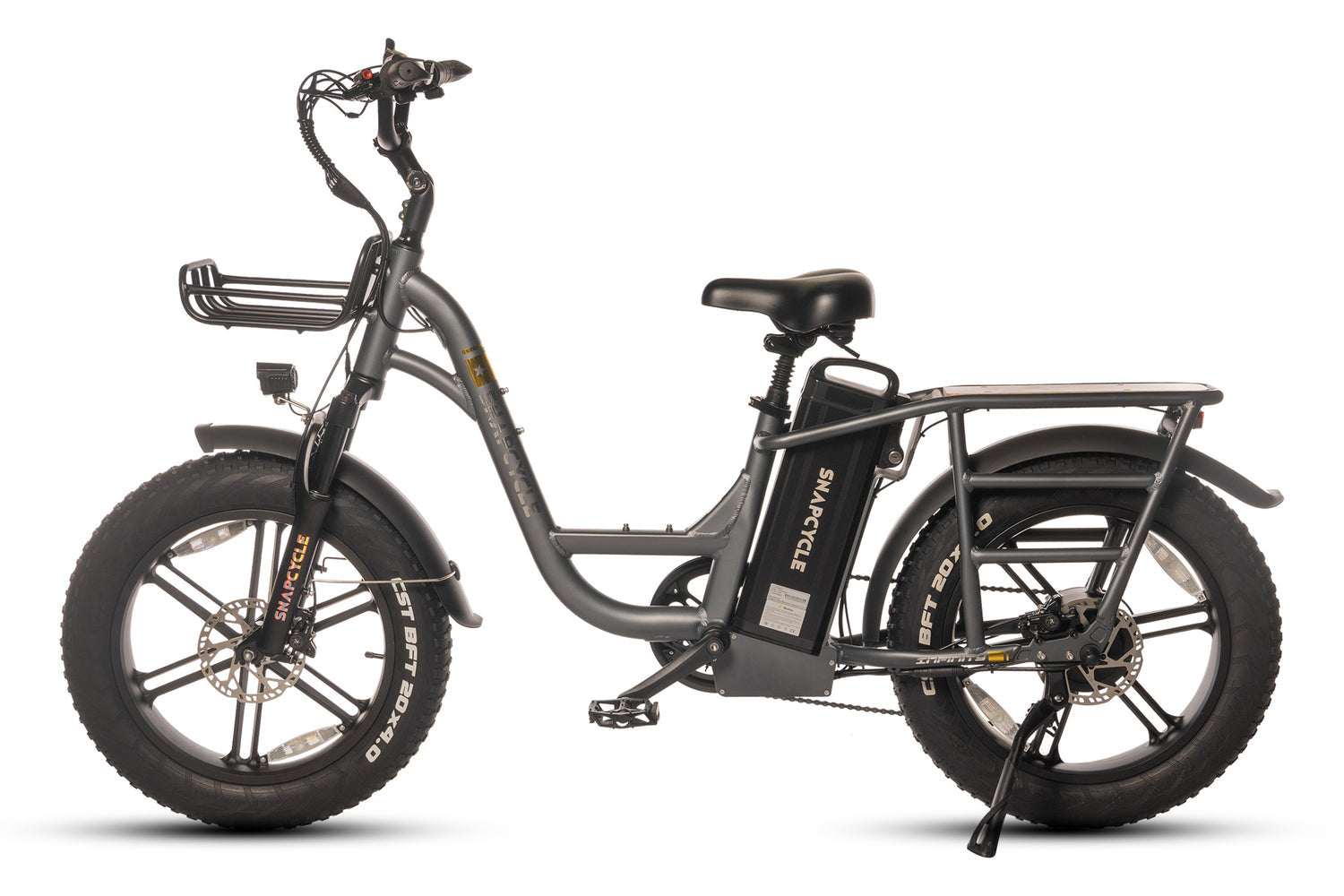

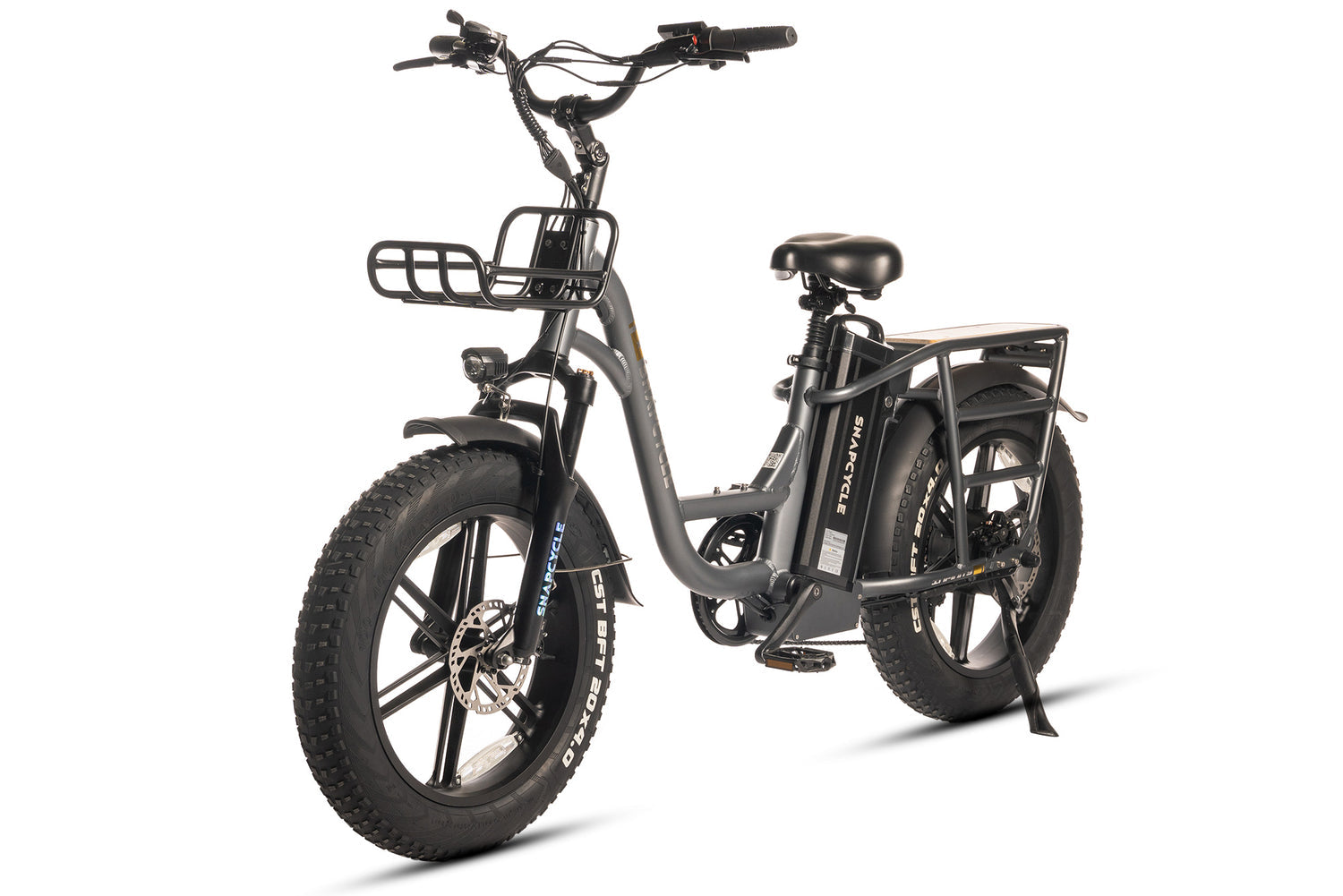

Snapcycle Infinity E-Bike
Why Choose Infinity?
Explore the latest cargo electric bike from Snapcycle together, featuring more powerful motor support and advanced functional upgrades, all in the perfect Infinity model.
Features
- 48V 15Ah EVE Lithium Battery
- 750W Brushless Geared Hub Motor
- Hydraulic Disc Brakes
- Half Twist Throttle
- Front and Rear Rack

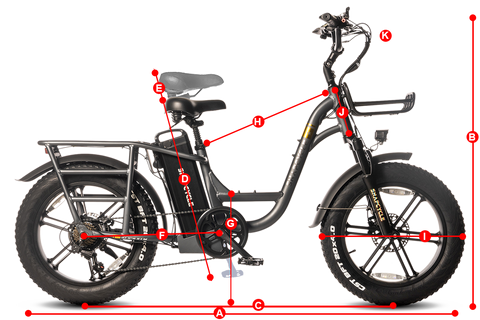

Size & Fit
| Dimension | Measurement |
|---|---|
| A. Total Length | 72.8" |
| B. Handlebar Height | 42.9" - 45.7" |
| C. Wheelbase | 48" |
| D. Minimum Seat To Pedal | 27.9" |
| E. Maximum Extension | 5.5" |
| F. Chain Stay Length | 21.7" |
| G. Standover Height | 17.7" |
| H. Top Tube Length | 24.8" |
| I. Wheel Diameter | 22.8" |
| J. Head Tube Length | 7.7" |
| K. Handlebar Length | 27.6" |
| Seat-to-Ground Distance | 31.8" - 36.6" |
Specification
| Component | Details |
|---|---|
| Battery | 48V 15Ah EVE lithium battery |
| Range | 30~45 Miles |
| Electric Bike Class | Class 2 (configurable to Class 3) |
| Hub Motor | 750W brushless geared motor, 1056W Peak |
| Charging Time | 4 ~ 5 Hours |
| Total Payload Capacity | 330lbs |
| Recommended Rider Heights | 5'1" ~ 6'7" |
| Charger | US standard 3.0 A smart charger, UL Certified |
| Controller | 48V / 22A 12-Tube |
| Display | Adjustable-Angle, Backlit, Grayscale 2.2'' LCD, IP67 |
| Frame | Aluminium 6061 |
| Pedal Assist Intelligent | 0~5 level pedal assist |
| Weight | 78.3lbs |
Components
| Component | Details |
|---|---|
| Brake Calipers | TEKTRO HD-E395 |
| Brake Levers | Aluminium alloy comfort grip levers with motor cutoff switch |
| Crank Set | 48T, 170mm Aluminium Alloy, Double Sided Plastic Guard |
| Fender | Full coverage front and rear |
| Freewheel | Shimano TZ50-7 Freewheel |
| Pedals | Foldable, Wellgo ALuminum Alloy Platform with Reflector |
| Seatpost Clamp | Quick-Release type |
| Front Suspension | PARTNER Spring Suspension, 175mm Travel, Lockout and Preload Adjustment |
| Rear Suspension | Pre-adjusted suspension, GSX-200 |
| Brake Rotors | TEKTRO 160mm front and rear |
| Chain | KMC chain with 122 chainlinks |
| Derailleur | 7-Speed Shimano Tourney |
| Handlebar | Aluminum Alloy, 680mm Width, 31.8mm Bore |
| Kickstand | Heavy-duty aluminum stand |
| Rims | Aluminum Alloy, 20 inch, Double Wall |
| Seatpost | Aluminum Alloy, 350mm*30.9mm Dia |
| Shifter | Shimano SL-TX50-7R |
| Tire | 20x4" CST BFT Puncture-Resistant |
