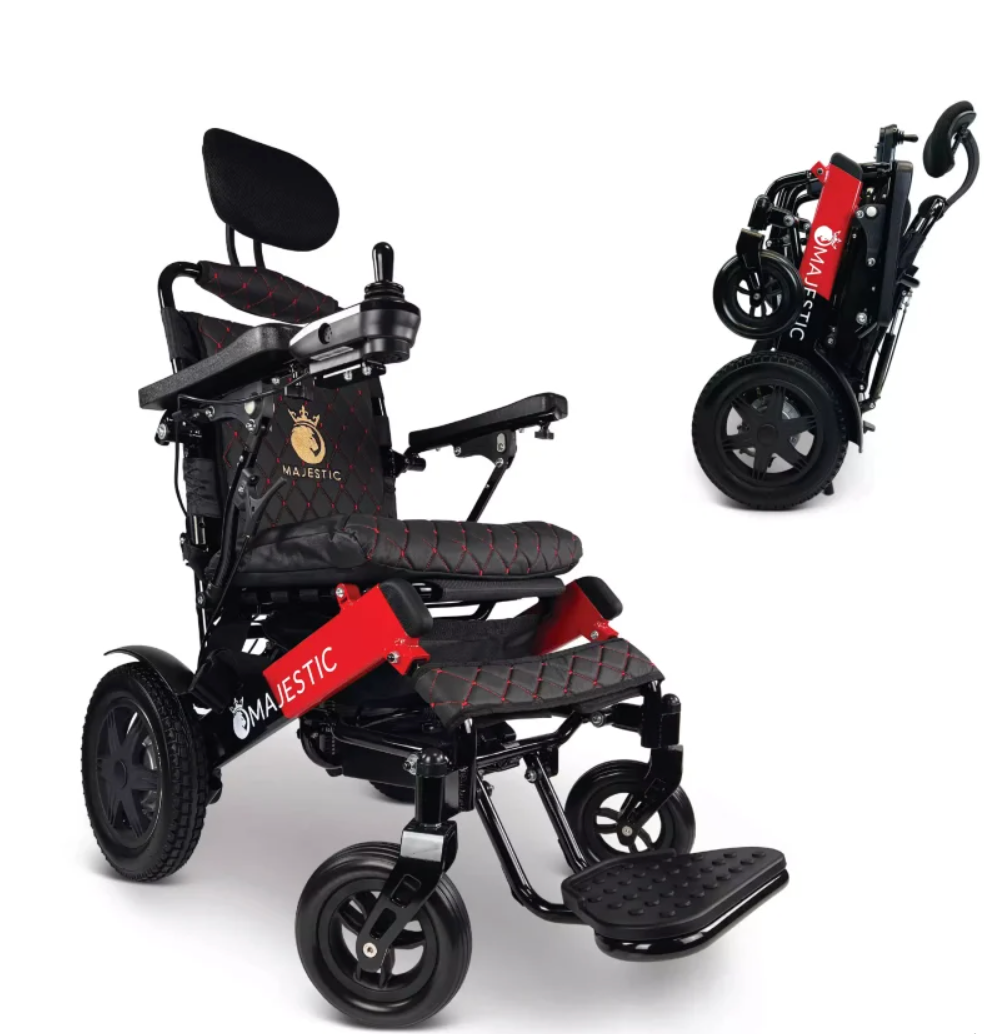

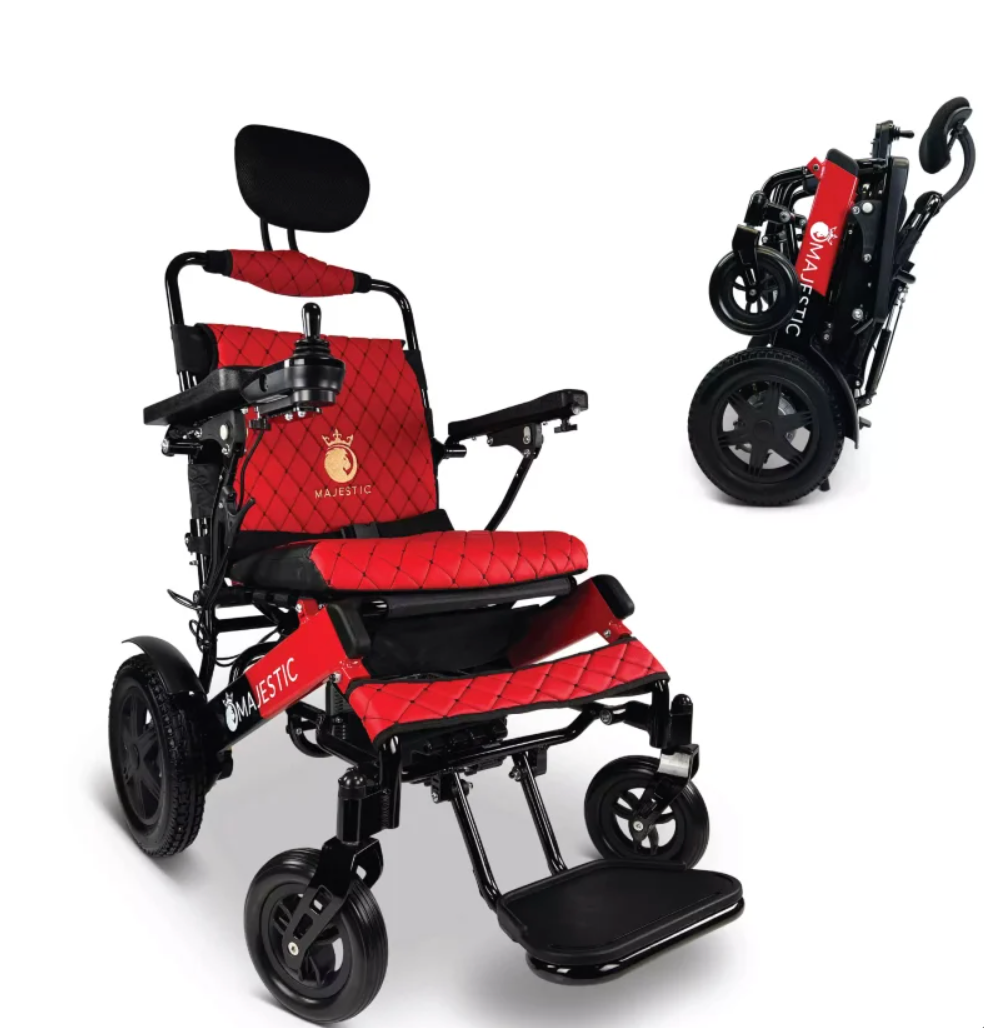

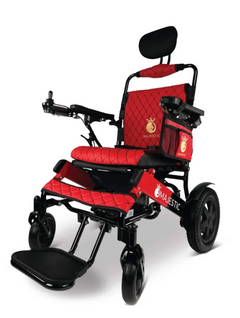

- This series of electric wheelchairs are powered by li-ion batteries and use two brushless DC 220W motors (total of 440W motor power).
- Users can control the direction and adjust the speed by using the 360-degree waterproof, intelligent, universal joystick controls located on the armrest. The joystick contains a power button, a battery indicator light, a horn, and speed selections.
- This electric wheelchair can be used at low speed and in good road conditions and can handle moderate slopes.
- This electric wheelchair can traverse terrains such as grass, ramps, brick, mud, snow, and bumpy roads.
- This electric wheelchair comes with an adjustable reclining backrest and storage under the seat.
- The two 7.5AH airline-approved batteries get up to 20+ miles of driving distance.***
- The lithium-ion batteries can be charged while in the wheelchair or separately.
- This wheelchair arrives fully assembled in the box. You only need to insert the joystick controller into the armrest. The box contains the wheelchair, battery, remote control, charging unit, and a user manual that includes the warranty details.
Performance Parameters and Technical Specs,
IQ-9000 Electric Wheelchair
IQ-9000
IQ-9000 PLUS
Seat Area Width *
17.5 inches / 445 mm
20 inches / 510 mm
Seat Area Depth
18 inches / 456 mm
18 inches / 456 mm
Seat Height (from the ground)
20 inches / 508 mm
20 inches / 508 mm
Armrest Height (from the seat)
9 inches / 230 mm
10 inches / 254 mm
Backrest Height (from the seat)
18 inches / 458 mm
20 inches / 508 mm
Max Loading Weight
286 lbs / 130 kg
310 / 140 kg
Overall Product Dimensions
L: 38″ / 965 mm W: 23.5″ / 597 mm H: 37″ / 940 mm
L: 38.5″ / 978 mm W: 26″ / 660 mm H: 38″ / 965 mm
Folded Product Dimensions
L: 23.5″ / 597 mm W: 14″ / 356 mm H: 30″ / 762 mm
L: 26″ / 660 mm W: 14.5″ / 368 mm H: 30″ / 762 mm
Net Weight without Battery
49 lbs / 22.5 kg
55 lbs / 25 kg
Net Weight with Battery **
55 lbs / 25 kg
61 lbs / 27.5 kg
Battery Weight **
6 lbs / 2.7 kg for 2*7.5AH battery
6 lbs / 2.7 kg for 2*7.5AH battery
Battery Charge Time
6 to 8 hours
6 to 8 hours
Battery Type
2 * 7.5AH lithium – ion batteries
2 * 7.5AH lithium – ion batteries
Airline / Cruise Approved
Yes
Yes
Range ***
Up to 19+ miles / 30 km
Up to 19+ miles / 30 km
Max Speed
4 mph / 6 kmh
4 mph / 6 kmh
Front Wheels
8 inches / 200 mm solid tire
8 inches / 200 mm solid tire
Rear Wheel
12 inches / 305 mm inflatable tire
12 inches / 305 mm inflatable tire
Motor
Two brushless 220W (total 440W)
Two brushless 220W (total 440W)
Climbing Angle Max Degrees
10
10
Degree of Protection
IPx3
IPx3
Turning Radius
≤ 47 inches / 1200 mm
≤ 47 inches / 1200 mm
Folding
Manual folding
Manual folding
Reclining
Yes
Yes
Adjustable Height Backrest
No
No
Raisable Armrests
Yes
Yes
Headrest
Yes
Yes
Cupholder
Optional – Additional Cost
Optional – Additional Cost
Phone Holder
Optional – Additional Cost
Optional – Additional Cost
Headlight / USB Charger
Yes
Yes
Tire Pump
Yes
Yes
Wireless Remote Control
Yes
Yes
Frame Color Option
Black, Black & Red
Black, Black & Red
Cushion Color Options
Standard: Black – Leather: Black, Blue, Red, Taba
Standard: Black – Leather: Black, Blue, Red, Taba
Packaging Dimensions
L: 33″ / 838 mm W: 17″ / 432 mm H: 27″ / 686 mm
L: 33″ / 838 mm W: 17″ / 432 mm H: 31″ / 790 mm
Packaging Weight **
69 lbs / 31 kg
75 lbs / 34 kg
* Distance between the armrests.
** Weight is for standard range (12AH) battery. The long range battery (20AH) is 1 lbs / 0.5 kg heavier.
*** Varies based on weight, incline, and speed factors.
