Power and Comfort Combined!

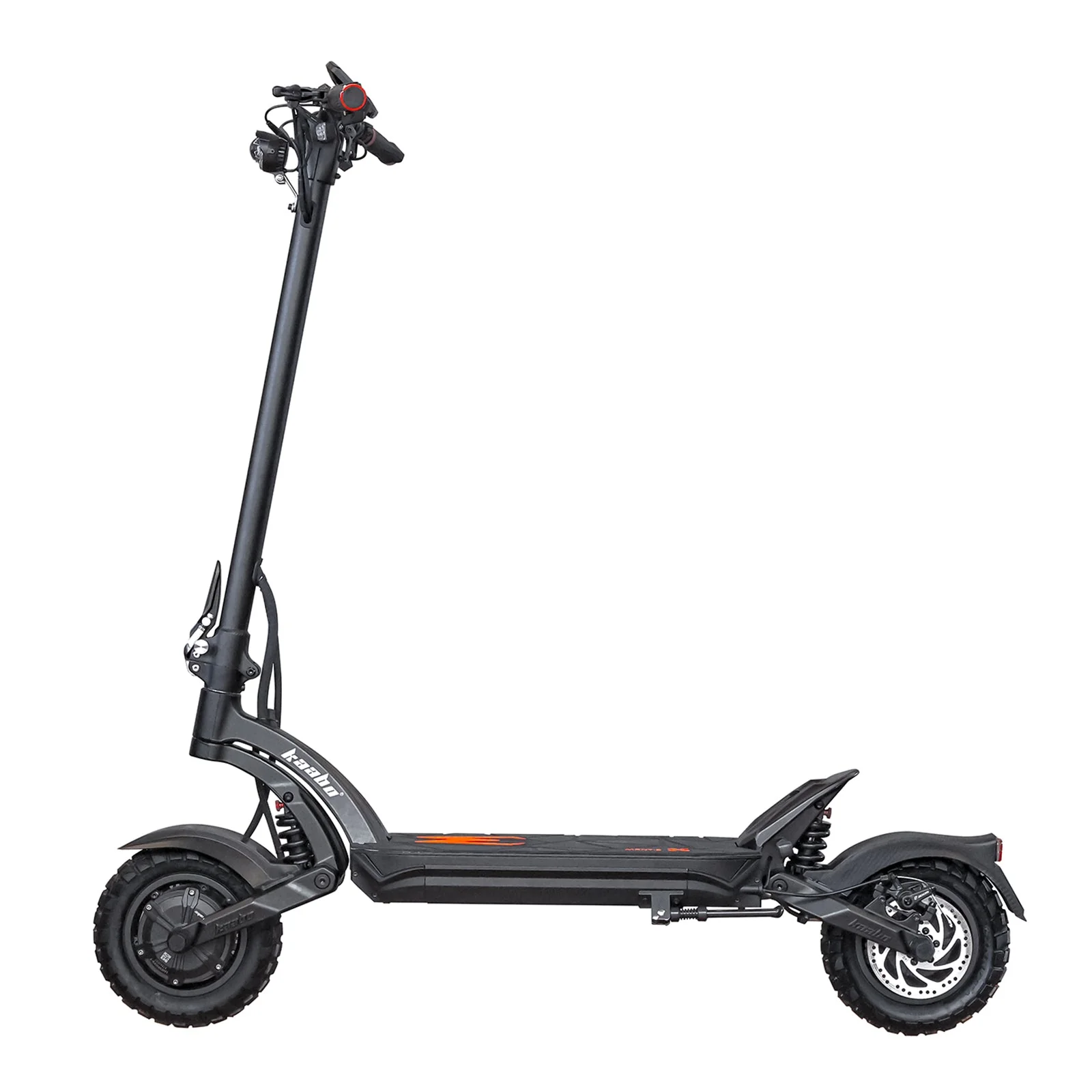

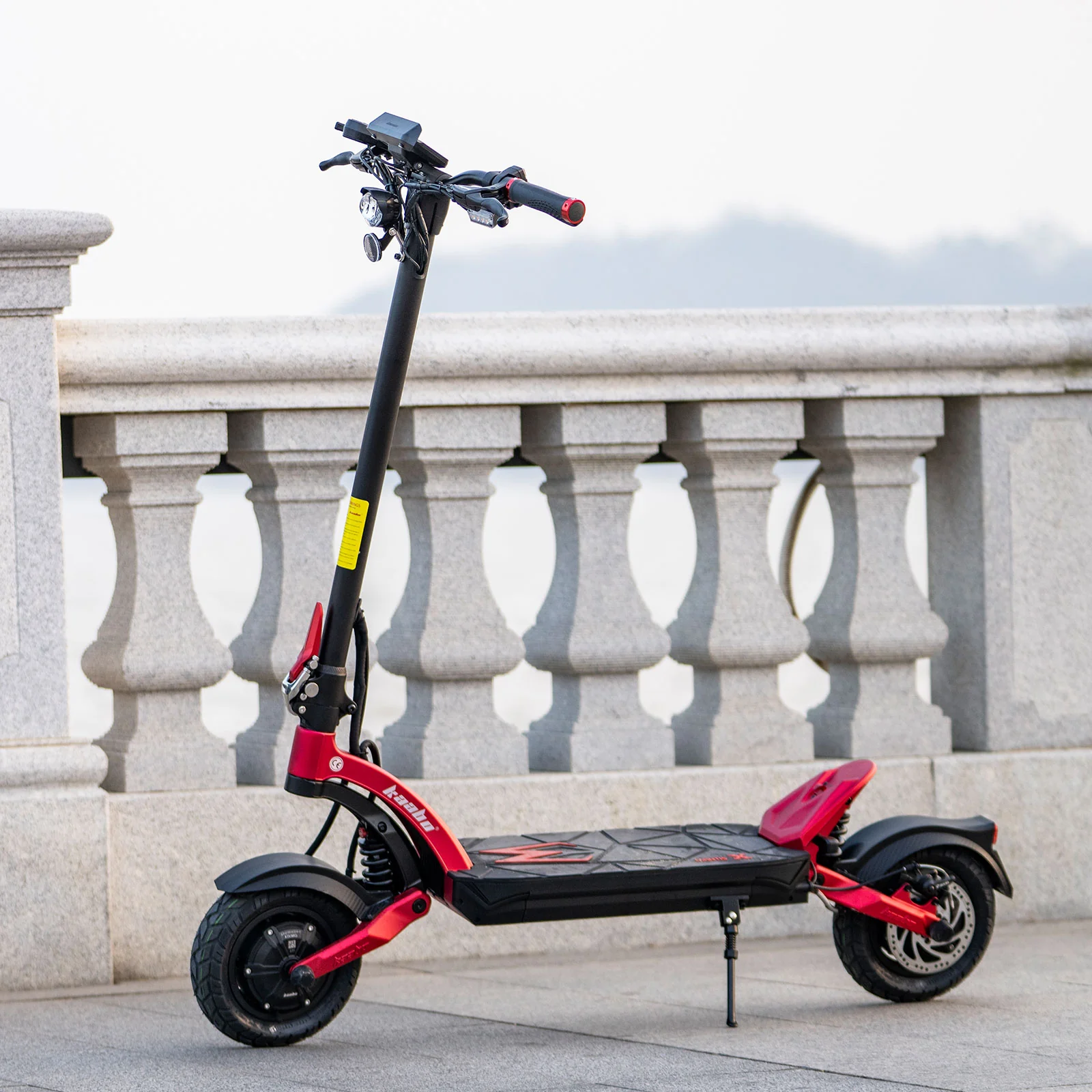

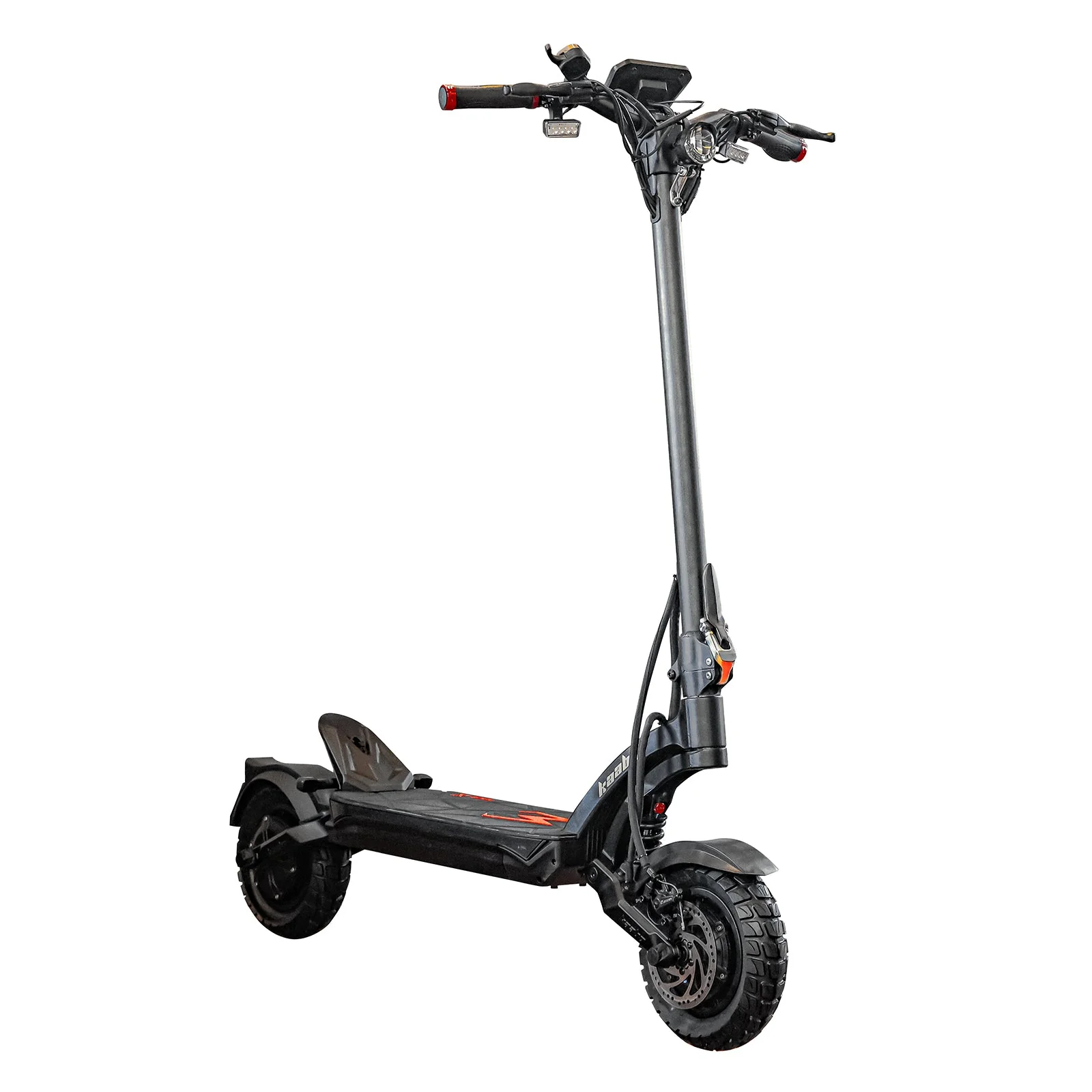

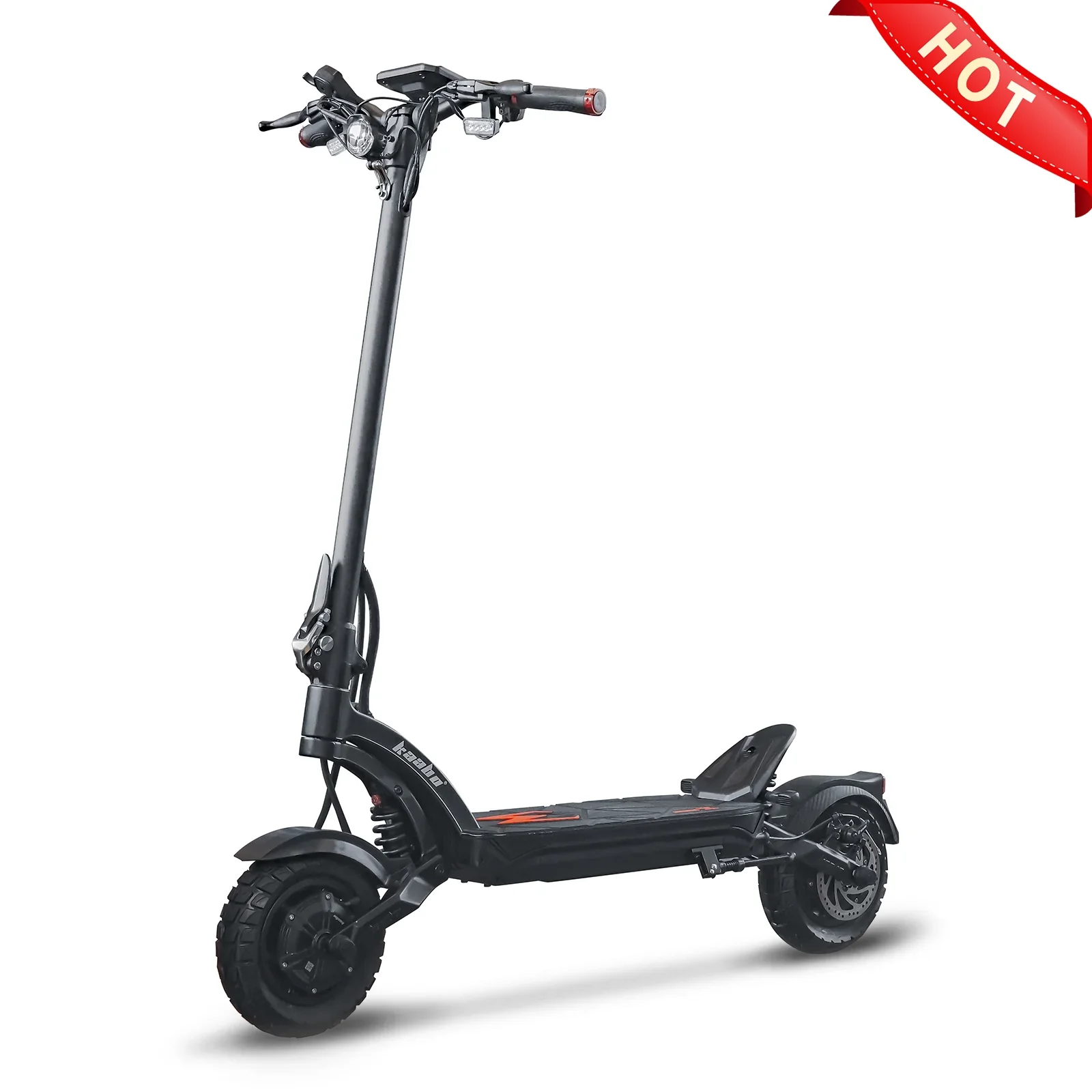

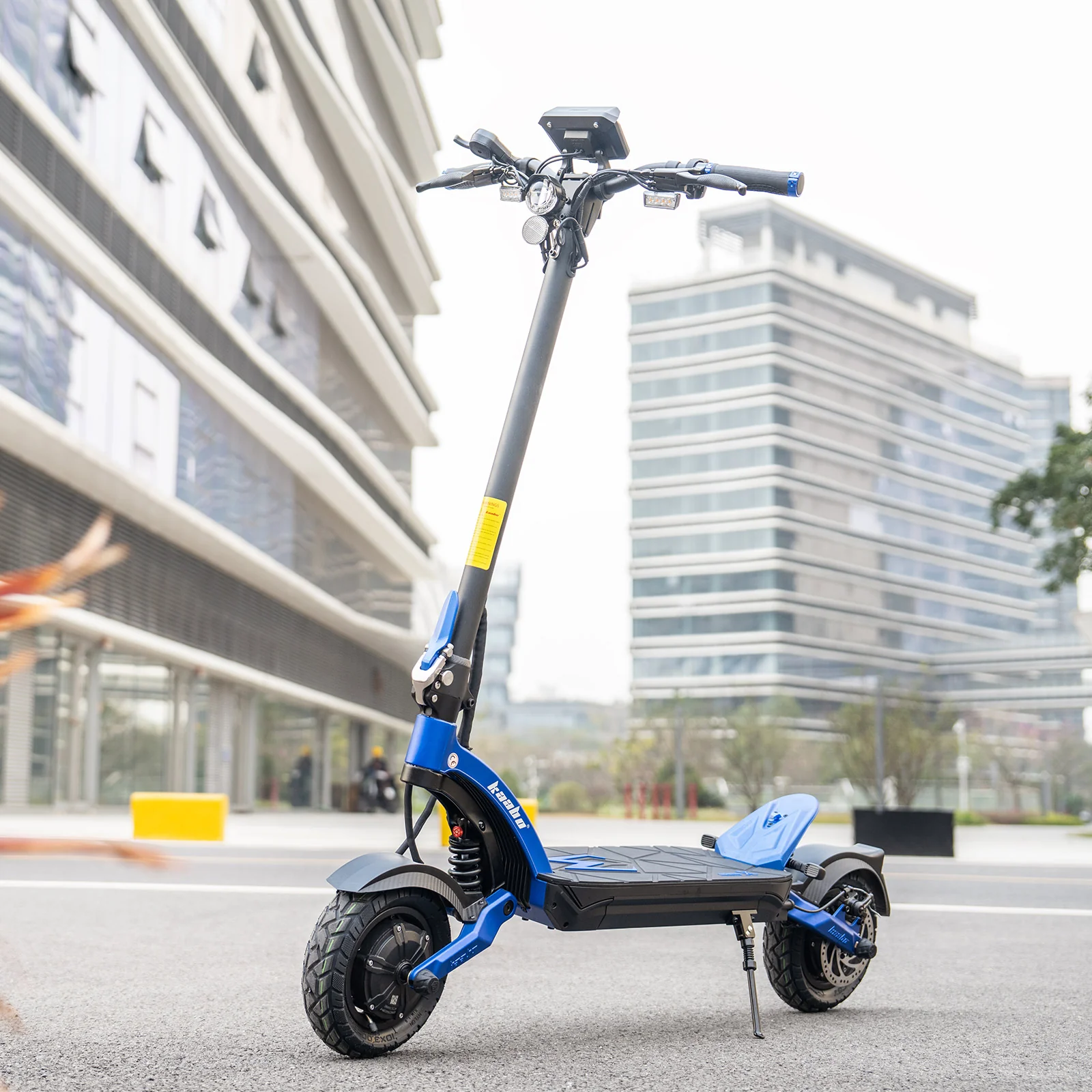

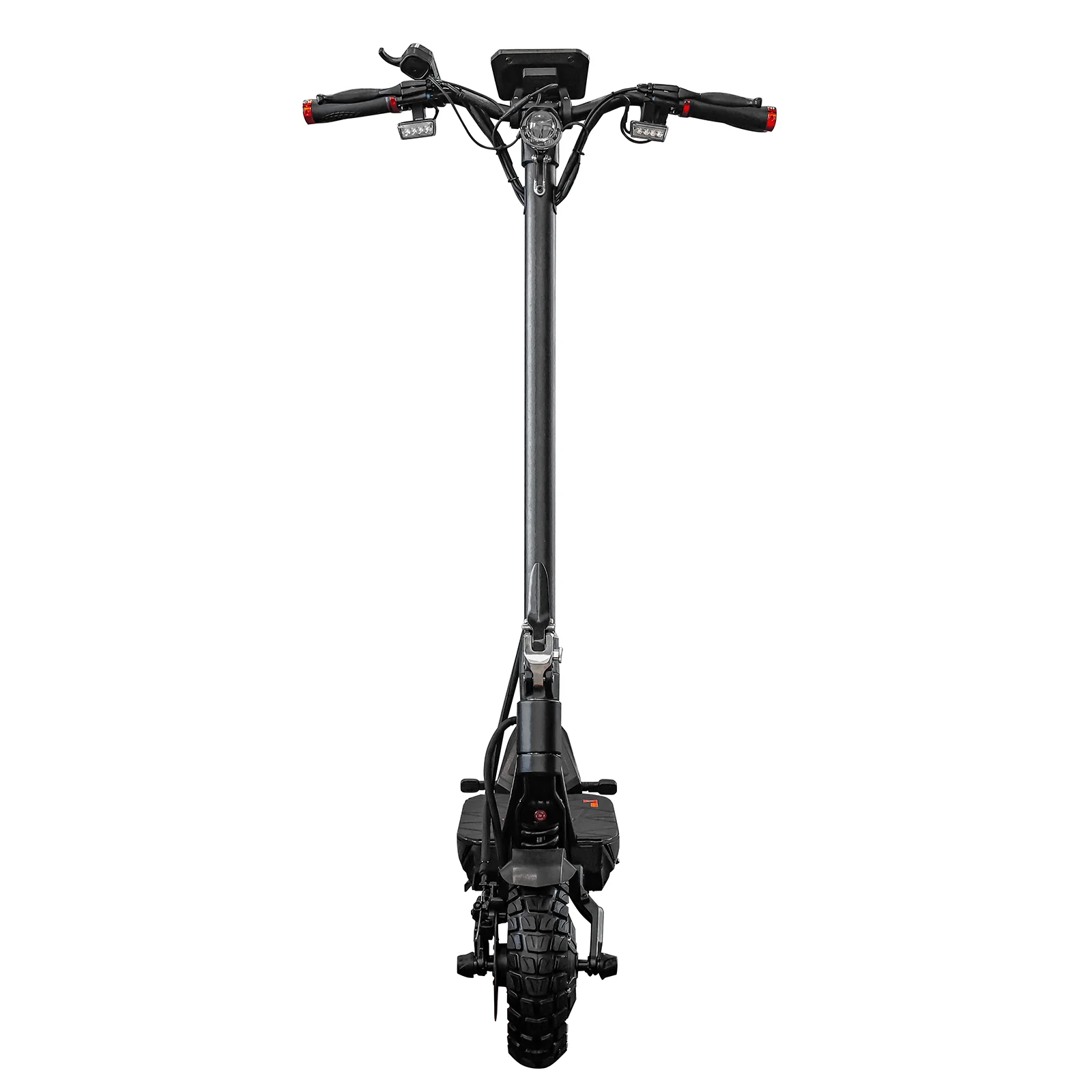

Kaabo Mantis X Plus
Experience the ultimate ride with Kaabo Mantis X Plus! Boasting a powerful 48V 18.2AH battery, enjoy an impressive 46-mile range and speeds of up to 31mph. With the best-in-class suspension system from the Mantis series, every ride is smooth and comfortable. Plus, introducing Kaabo's latest KM03 dashboard, making its debut for even more enhanced control and convenience!

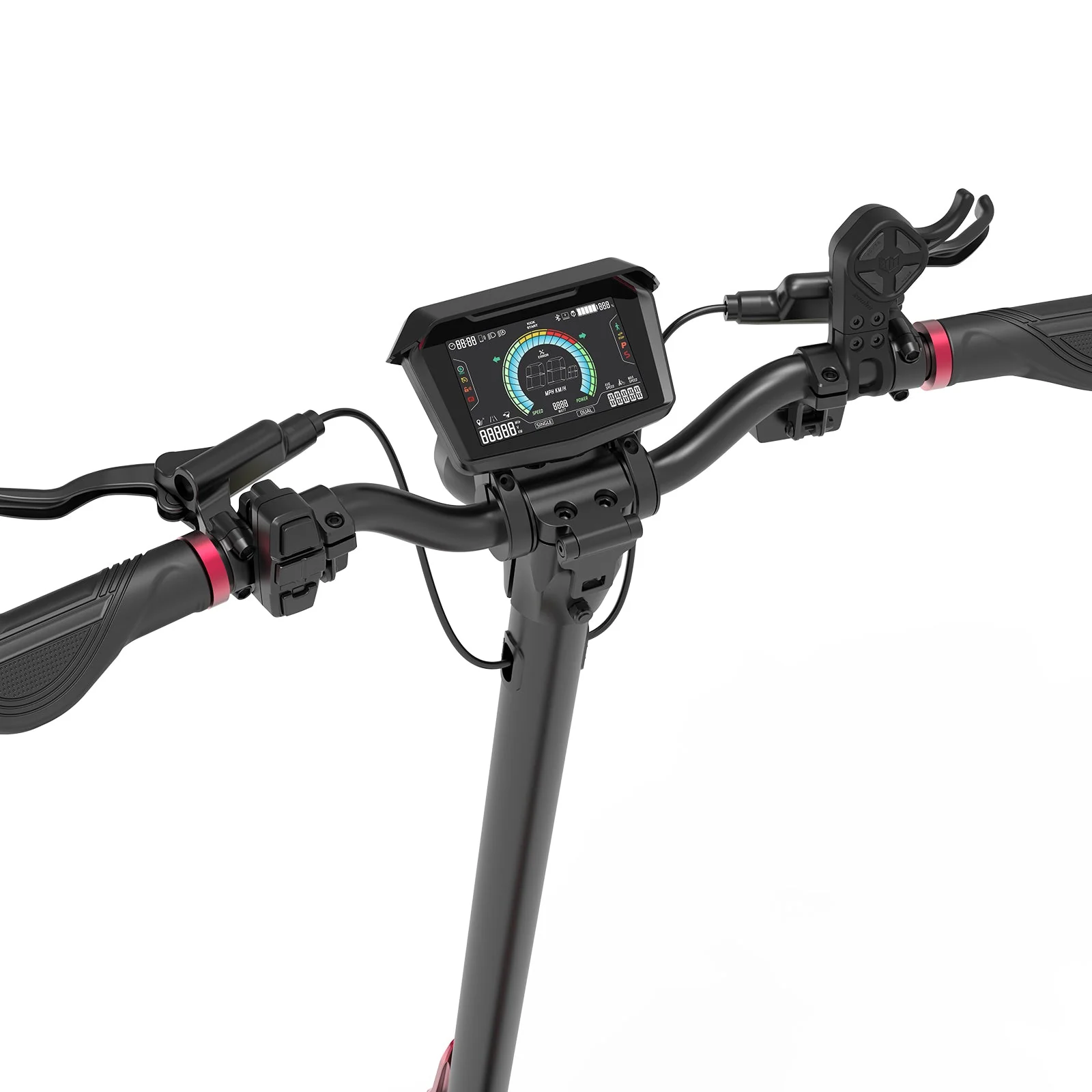

The Brand-New Kaabo Dashboard
Introducing the new 4-inch Kaabo Dashboard with a digital lock and USB charging port. Stay connected with clear displays of speed, battery life, and turn signals.
Best Suspension Ever in the Mantis Series
Elevate your ride with the Mantis series' best-ever suspension system. Customize with 15 adjustable damping settings for smooth rides on city streets and rugged trails. Experience ultimate comfort and control.
Extended Range, Multi-Protection
The Mantis X Plus features a 48V 18.2AH lithium battery with a range of up to 46 miles and a 7-day auto-sleep mode, extending battery life and reducing fire risks. Its advanced BMS provides six layers of protection for safety and longevity.
Detachable Motor for Easy Maintenance
The detachable motors make maintenance and repair simple and hassle-free, ensuring top performance always.
Weather-Ready Design
With IPX5 waterproof rating for the scooter and IPX7 rating for the display, the Mantis X Plus is built for all-weather riding.
Power-Up on the Go
The integrated USB fast-charging port on the dashboard keeps your devices powered up. It’s not just a ride—it’s your mobile power station.
What is the Mantis X Plus made of?

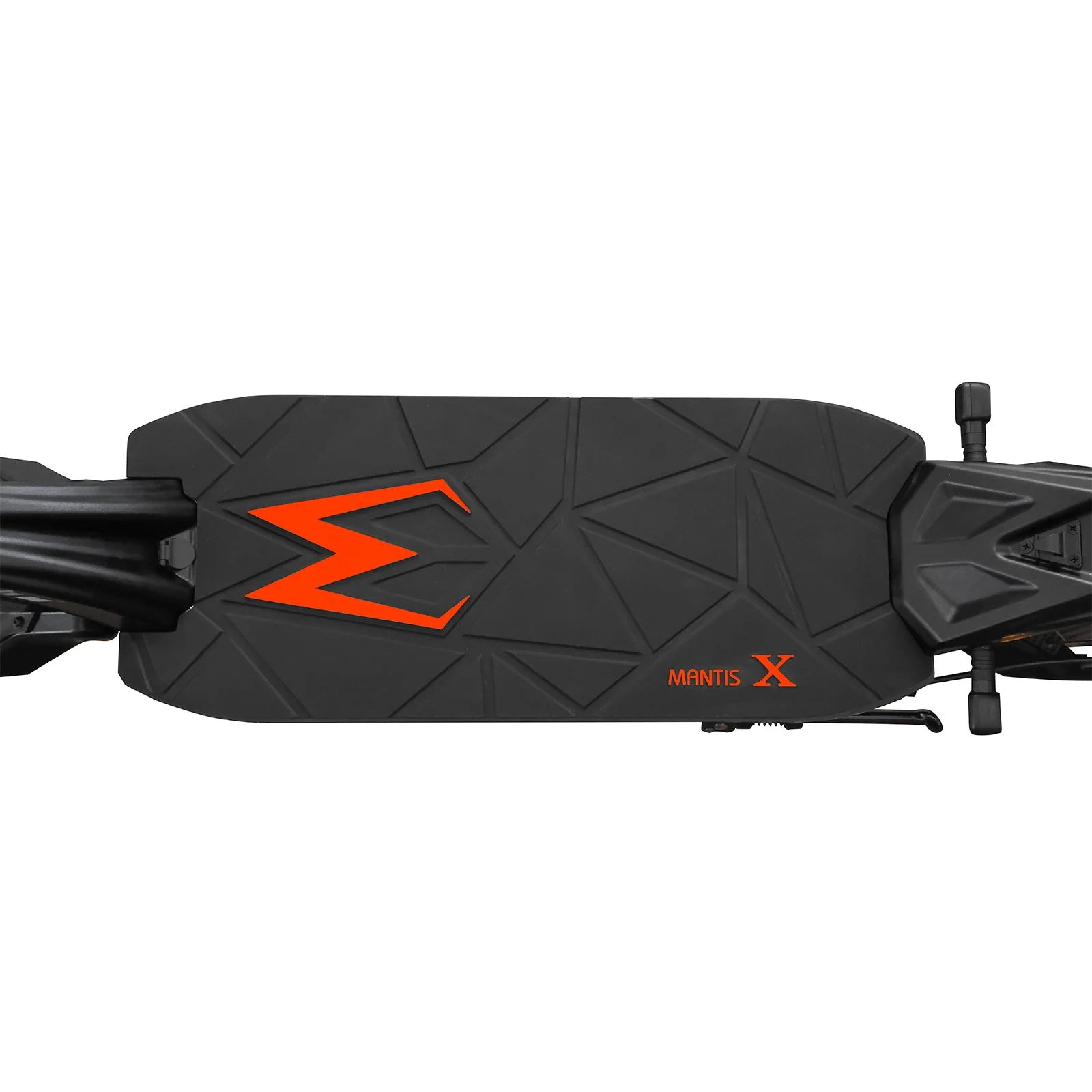

- Unparalleled Stability – 10-inch 3.0 CST tires conquer diverse terrains with ease.
- Safe Lighting – Upgraded headlights and turn signals improve visibility and safety.
- Strong and Portable – Aircraft-grade aluminum alloy frame, folds in 3 seconds.
- Enhanced Charging Port – Auto-rebound design improves safety and dustproofing.
- Visibility Enhancement – Side lights with 360° color customization via LED app.
Technical Specifications
Specification | Details |
---|---|
Max Speed | 31 mph |
Max Range | 46 miles (165 lbs rider, 15mph, flat road) |
Climbing Angle | 25 Degrees |
Max Load | 265 lbs |
Battery Capacity | 48V 18.2Ah |
Battery Type | Li-Ion Battery Pack 18650 (Certified to UL) |
Motor | Brushless Motor 500W ×2 |
Charger | 54.6V 2A |
Charging Time (2A) | Around 9 hrs |
Shock Absorber | Front and rear adjustable damping & spring oil spring (132mm) |
Brake | 140mm disc brakes + EABS |
Lighting | LED Front Light + LED Deck Light + Turn Signal Lights |
Controller | Kaabo Sine Wave Controller |
Display | Kaabo KM03 Center Display (NFC + USB charging) |
Open Size | 49.1 × 24.4 × 52.6 in (1247mm × 620mm × 1335mm) |
Folding Size | 49.1 × 24.4 × 23.0 in (1247mm × 620mm × 585mm) |
Net Weight | 64 lbs / 29 kg |
Tires | 10 × 3.0 in Tubed Pneumatic Tires with Split Rims (CST) |
Frame Material | T6082 Aviation Grade Aluminum + One-piece Forging |
Package Content | Charger, User Manual, Tool Kit, 4 Nut Covers |
