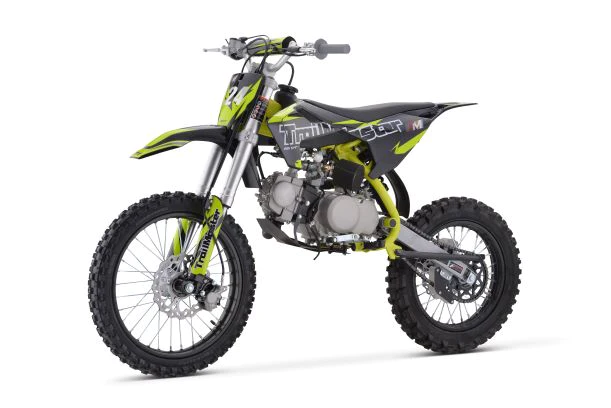

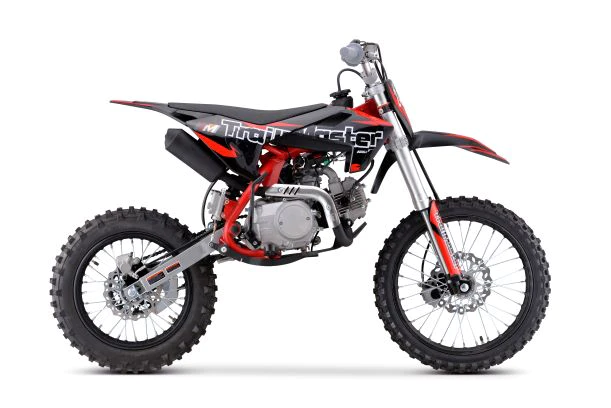

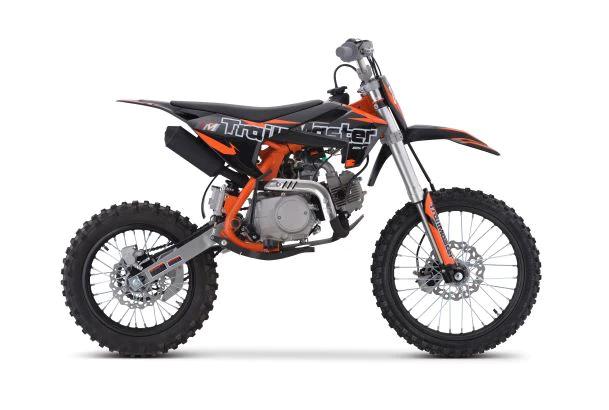

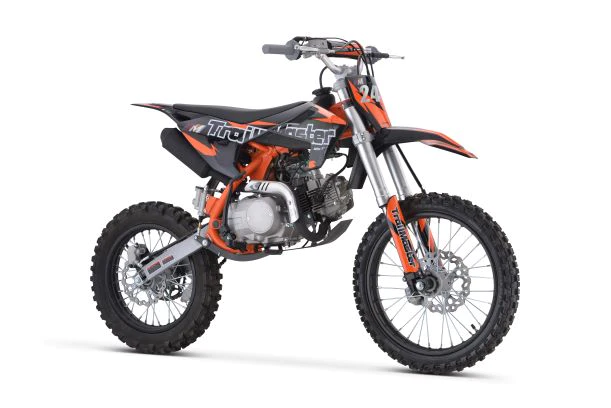

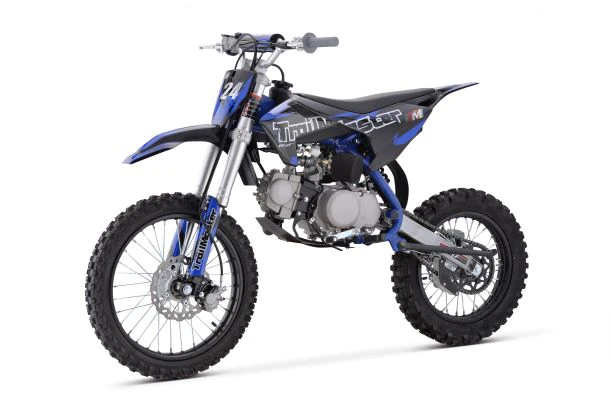

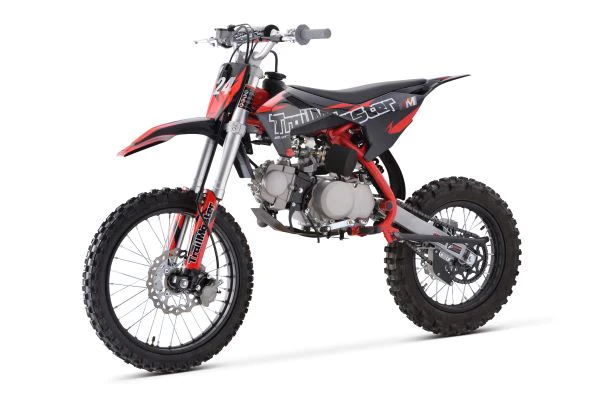

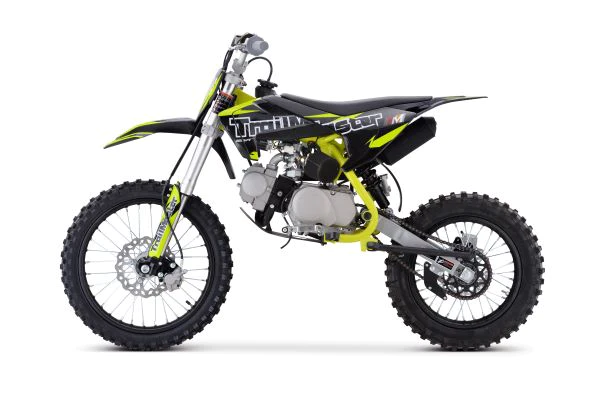

TrailMaster TM24-125 Dirt Bike Manual 17 Inch Front Tire 14” back 4 Speed

TrailMaster TM24-125 Dirt Bike Manual 17 Inch Front Tire 14” back 4 Speed

$999.00

Color

Only 3 left! .. people are viewing this, and 3 recently purchased it

Order in the next to get it by

Trailmaster Dirt Bikes - Family-Friendly Off-Road Adventures

This comprehensive range of dirt bikes caters to families, offering options such as the 110cc TM 10, TM 11, and the 125cc TM 27 and TM 29, all distinguished by superior craftsmanship. Spanning from 10" to 17" front rims, these bikes stand out as the premier choice for 2022, thanks to meticulous design considerations.

Equipped with twin spar frames, front and rear disc brakes, these bikes boast a full suspension system with a mono-shock rear end and dual inverted front forks. The welded steel frame and twin-spar motor mounts ensure optimal balance and a favorable power-to-weight ratio, with easily accessible motor mounts for swift maintenance.

The inclusion of an electric start, a feature typically reserved for larger and more expensive bikes, enhances the bike's appeal. The air-cooled engine incorporates only the highest quality components. A semi-automatic transmission is available, teaching young riders effective gear usage for acceleration and safe stops. The bikes are also offered in manual and semi-automatic transmissions.

Trailmaster has a proven track record spanning over two decades, providing exceptional service. The engineers at Trailmaster dedicated three years to perfecting these bikes, and their arrival is a testament to their worthiness after the anticipation.

Main Features:

Potent 125cc engine
Kick start 4-gear manual shift
Large tires with a 17” front and 14” back
Inverted front shock
42’3 “ wheelbase and 32.7” seat height
Hydraulic front and rear disc brakes
Aluminum handlebar

CA customers: Please note that this item is NOT CARB approved, but it is permissible for use on private land.

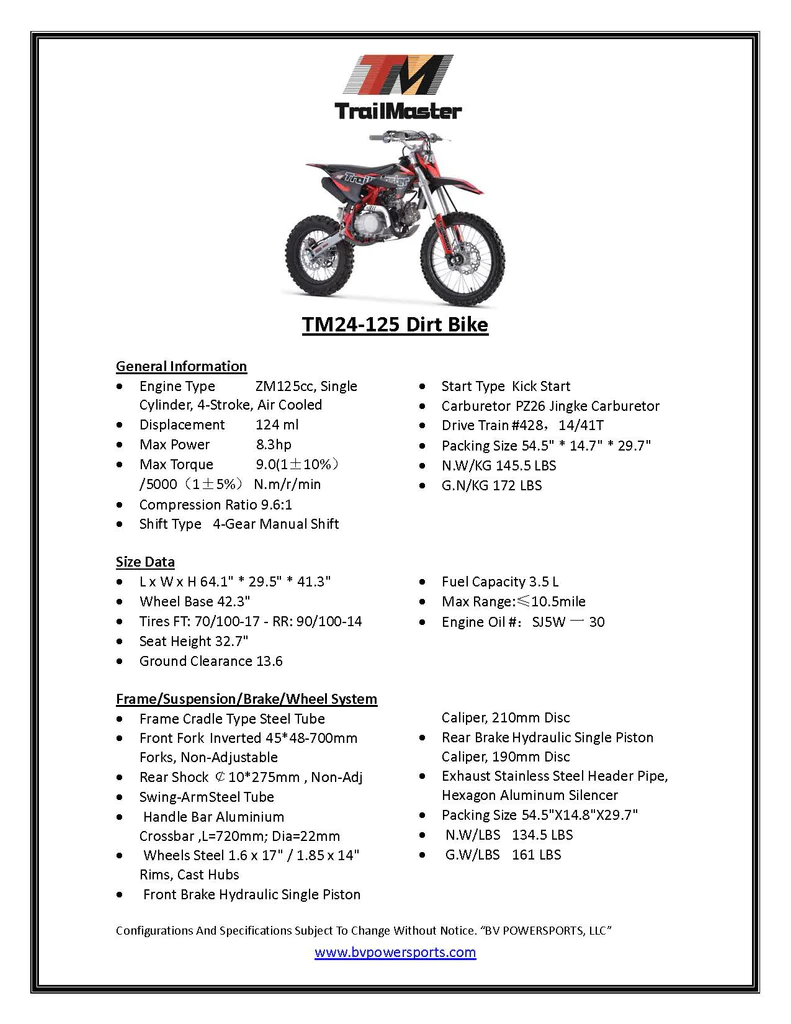

Engine System
Engine Type	ZM125cc, Single Cylinder, 4-Stroke, Air Cooled
Displacement	124 ml
Max Power	6.2（1±10%）/7000（1±5%） kw/r/min
Max Torque	9.0(1±10%）/5000（1±5%） N.m/r/min
Compression Ratio	9.6:1
Shift Type	N-1-2-3-4, Four-Gear Manual Shift
Start Type	Kick Start
Ignition	CDI
Transmission	Chain Drive; #428，14/41T
Size Data
L x W x H	64.2"X29.5"X41.5"
Wheel Base	42.3"
Tires	FT: 70/100-17 - RR: 90/100-14
Seat Height	32.7"
Ground Clearance	13.6"
Fuel Capacity	3.5 L
Min. Fuel Consumption:	≤367g/kw.h
Max Range:	≤10.5mile
Engine Oil #：	SJ5W一30
Frame/Suspension/Brake/Wheel system
Frame	Cradle Type Steel Tube Frame
Front Fork	Inverted 45*48-700mm Forks, Non-Adjustable
Rear Shock	10*275mm , Non-Adjustable
Swing-Arm	Steel Tube
Handle Bar	Aluminium Crossbar ,L=720mm; Dia=22mm
Wheels	Steel 1.6 x 17" / 1.85 x 14" Rims, Cast Hubs
Front Brake	Hydraulic Single Piston Caliper, 210mm Disc
Rear Brake	Hydraulic Single Piston Caliper, 190mm Disc
Exhaust	Stainless Steel Header Pipe, Hexagon Aluminum Silencer
