Product Features
52V 16Ah Lithium Battery
Upgraded high-capacity battery that reduces charging time, minimizes wear from frequent recharges, and delivers a range of up to 68 miles per charge—ideal for long outdoor rides.
Shimano 8-Speed Transmission
Equipped with a reliable Shimano 8-speed gearbox for smooth and precise gear shifting on any slope or terrain, enhancing comfort and performance.
High-Brightness LCD Display
Outdoor-optimized LCD display offers clear visibility of speed, battery level, and mileage—even in bright daylight.
20x4.0 Inch Puncture-Resistant Tires
Specially designed for off-road and high-speed use, these tires resist punctures and dampen ground vibrations for a smoother ride.
Aluminum Alloy Folding Pedals
Durable, rust-resistant, and strong pedals that fold for compact storage and added convenience.
High-Brightness Headlight and Taillight
Powerful front LED light improves visibility at night, while the rear light enhances your visibility to others for safer riding.
Aluminum Alloy Rear Rack
Lightweight yet strong aluminum alloy rear shelf supports up to 25 kg without deformation—ideal for cargo or bags.
Anti-Slip, Skin-Friendly Grips
Comfortable rubber grips with anti-slip texture for improved safety and hand comfort on long rides.
Specifications
| Material | 6061 aluminum alloy |
|---|---|
| Tires Size | 20 x 4.0 inches |
| Motor | 1200W (peak), 750W (rated) hub motor |
| Torque | 75 N·m |
| Battery | 52V 16Ah Lithium-Ion Battery |
| Max Speed | 20 MPH (Throttle), 28 MPH (Pedal Assist) |
| Max Mileage | 30 Miles (Throttle), 68 Miles (PAS) |
| Brakes | Hydraulic Disc Brakes (160 mm rotors) |
| Transmission | Shimano Altus 8-speed |
| Charging Time | About 6.5 hours |
| Bike Weight | 69.6 lbs (31.6 kg) |
| Gross Weight | 87.7 lbs (39.8 kg) |
| Maximum Load | 330 lbs (149.4 kg) |
| Rider Heights | 5.4–6.2 ft (165–190 cm) |
Unfolded Dimensions
| Package Dimensions (L×W×H) | 143 × 30.5 × 67 cm |
|---|---|
| Package Weight | 87.7 lbs (39.8 kg) |

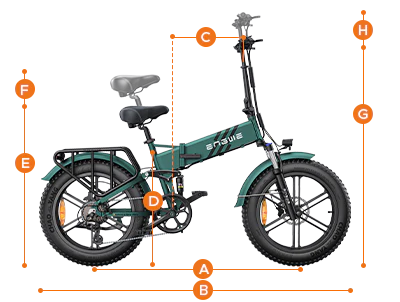

Bike Frame Measurements
| Label | Measurement |
|---|---|
| A – Wheelbase | 113.5 cm |
| B – Total Length | 170 cm |
| C – Reach | 43 cm |
| D – Standover Height | 69 cm |
| E – Minimum Saddle Height | 86 cm |
| F – Maximum Saddle Height | 102 cm |
| G – Min Handlebar Height | 120 cm |
| H – Max Handlebar Height | 130 cm |
Note: Measurements may vary by 0–5 cm from actual values.
Folded Dimensions
| Folded Size | 104 × 55 × 84 cm |
|---|

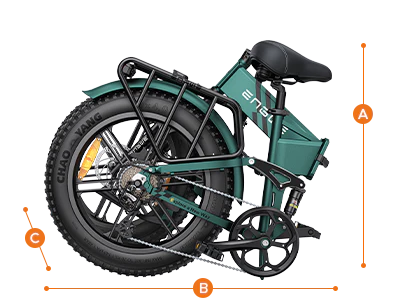

Folded Frame Measurements
| Label | Measurement |
|---|---|
| A – Height | 84 cm |
| B – Length | 104 cm |
| C – Width | 55 cm |
Note: Measurements may vary by 0–5 cm from actual values.
