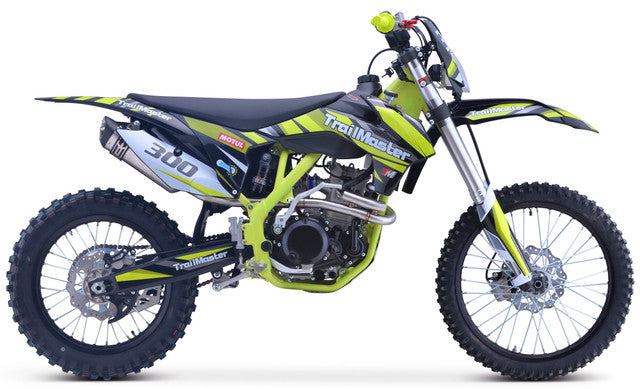

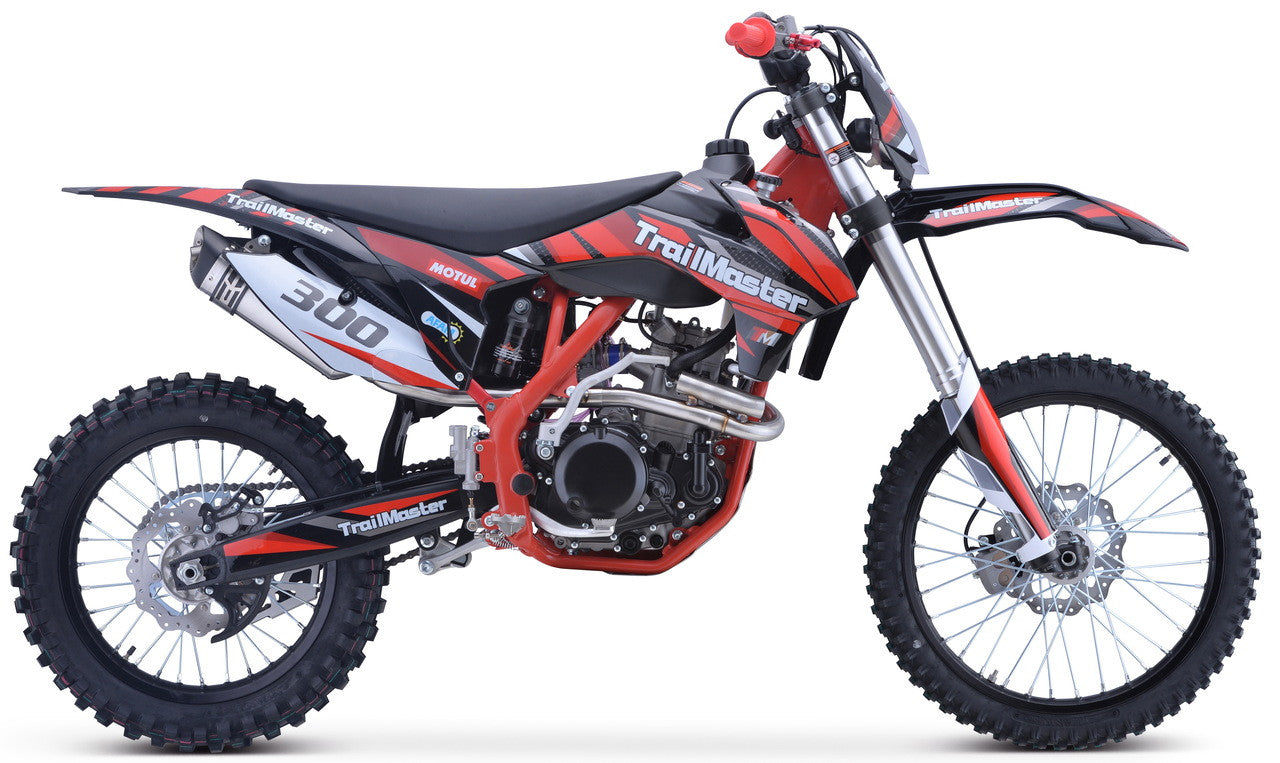

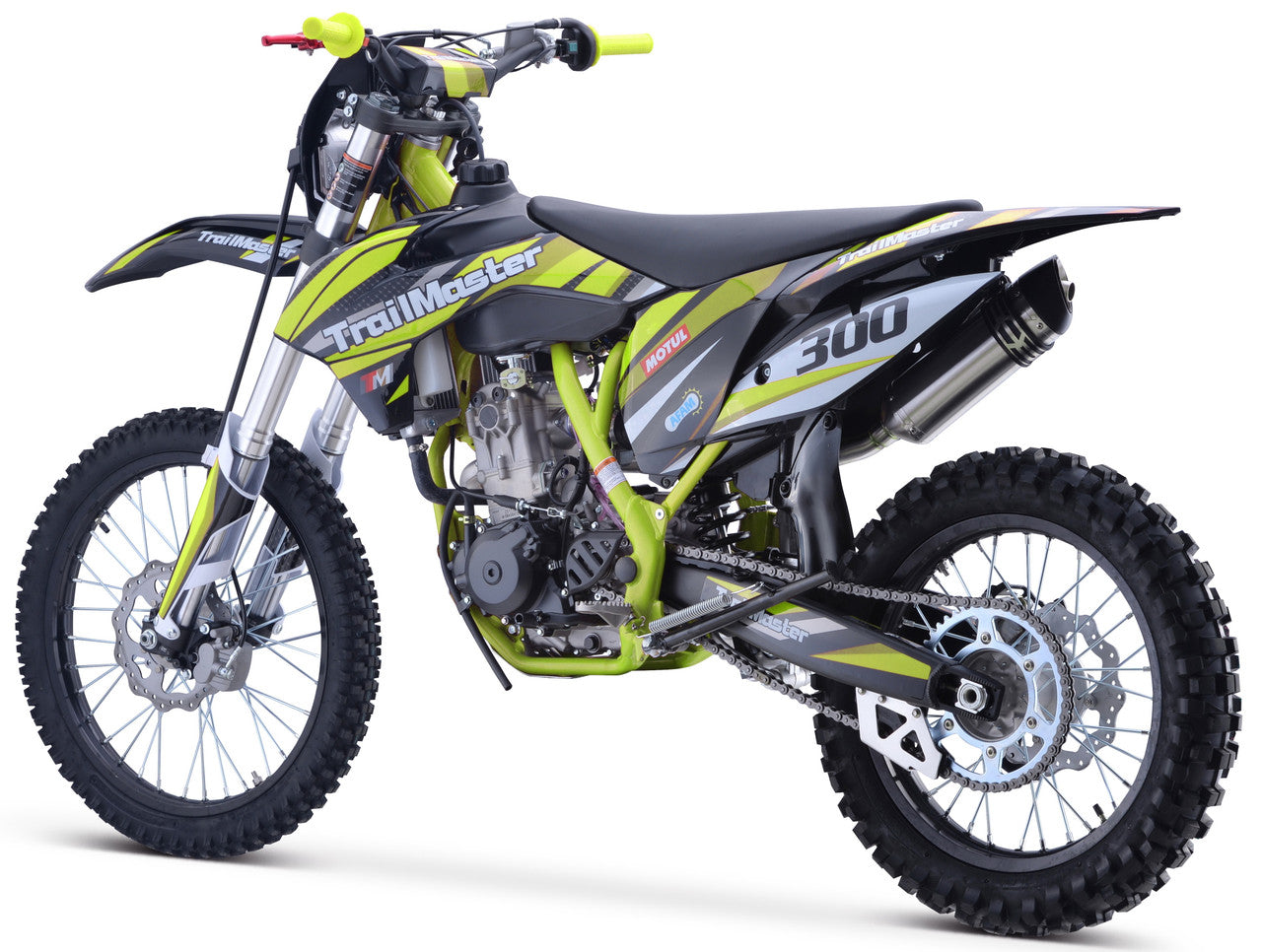

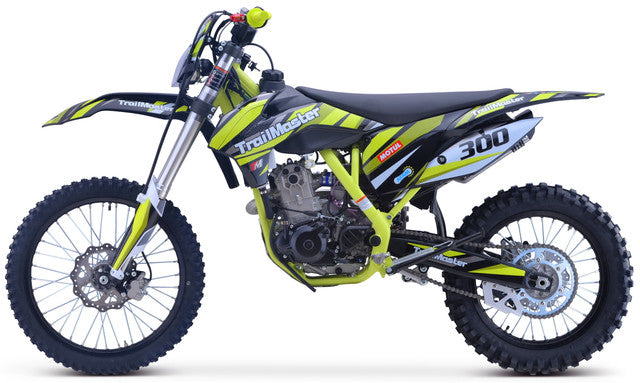

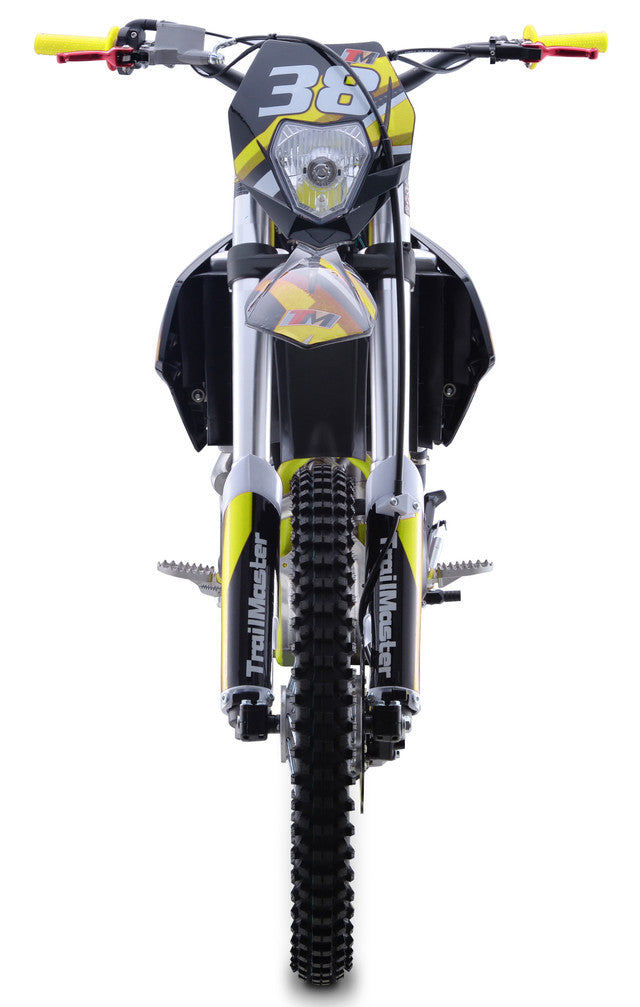

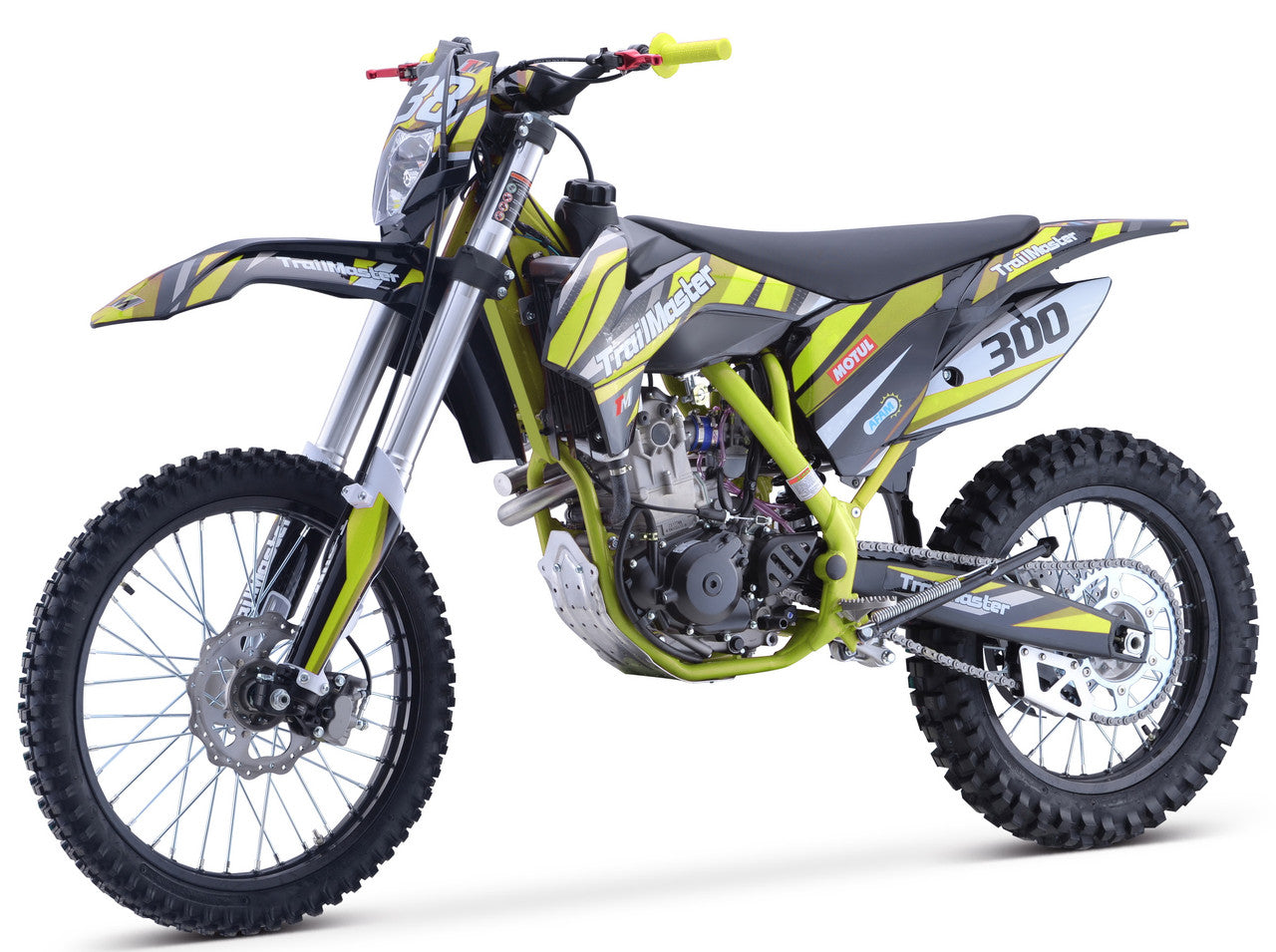

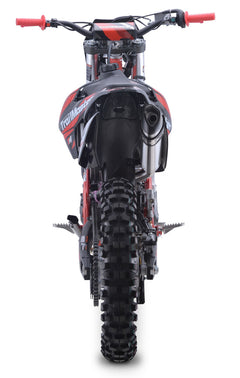

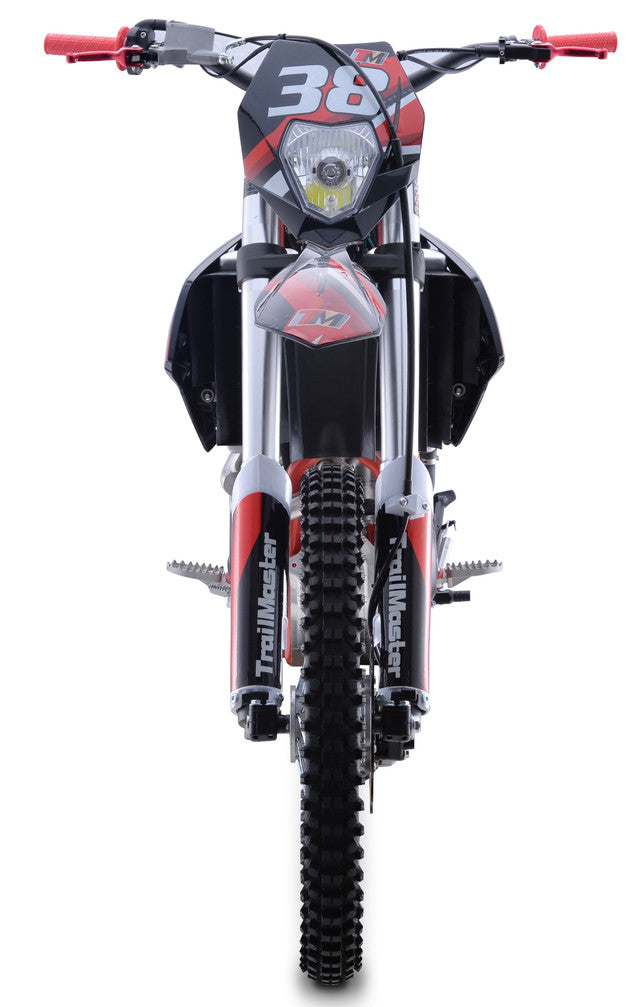

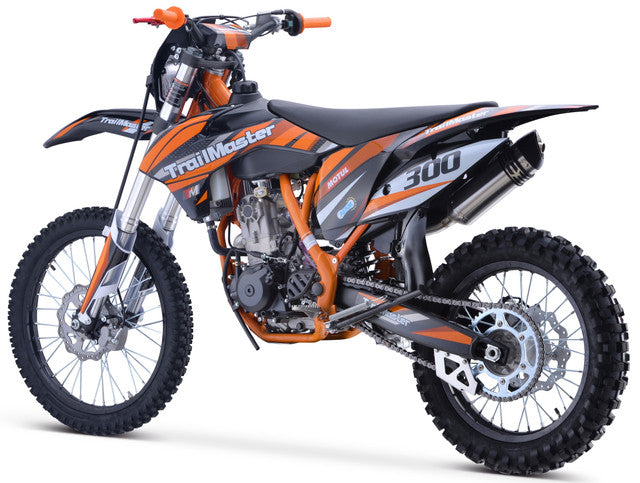

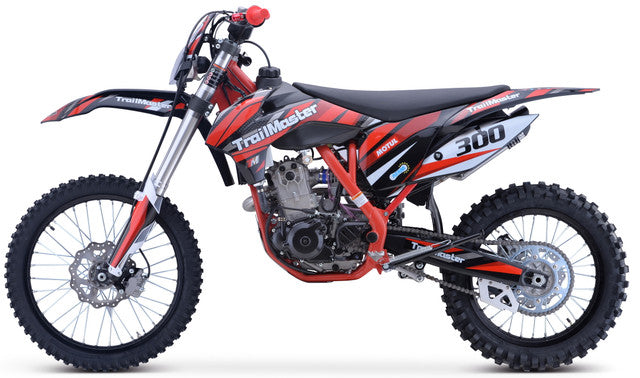

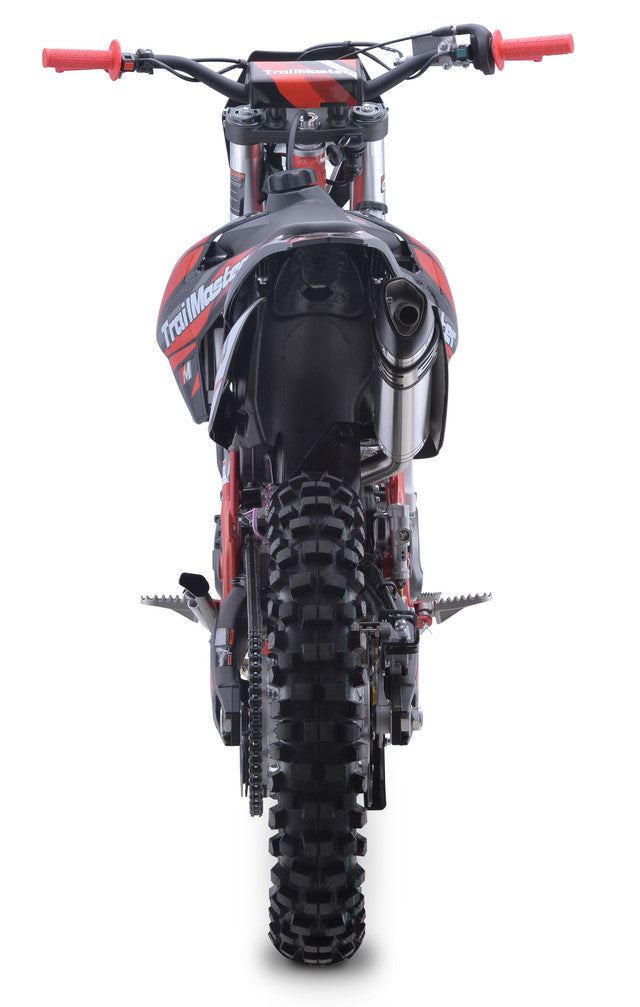

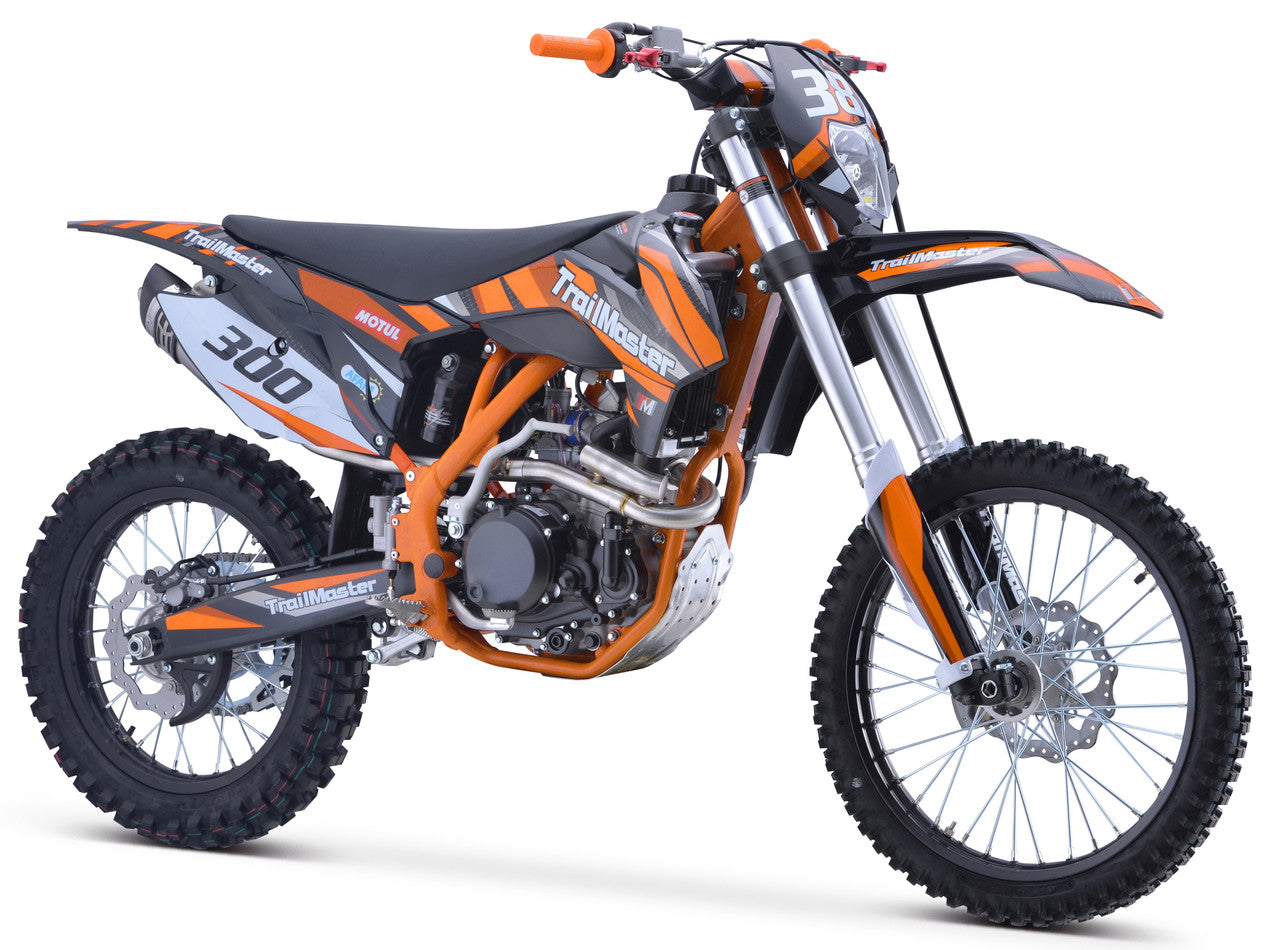

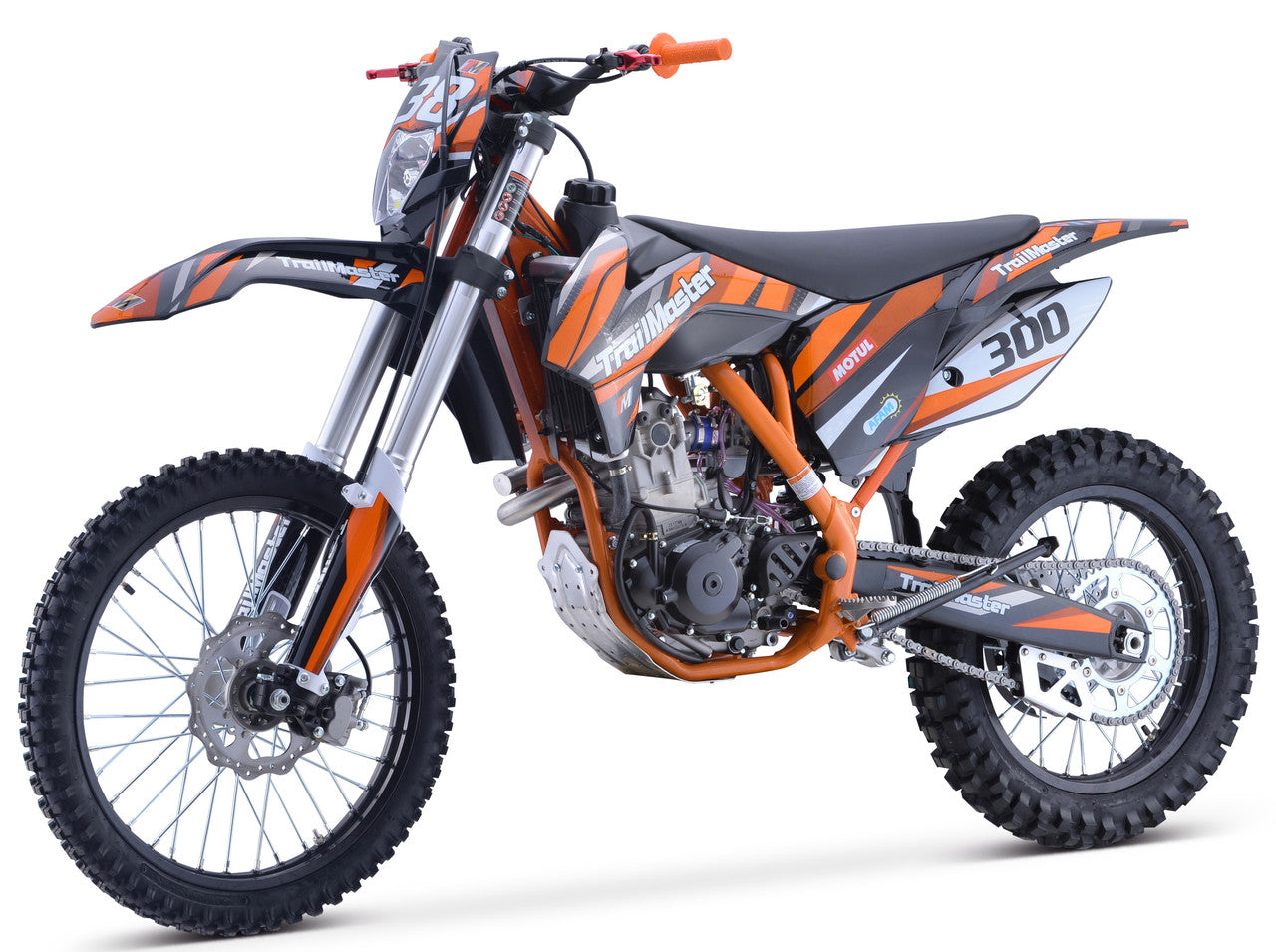

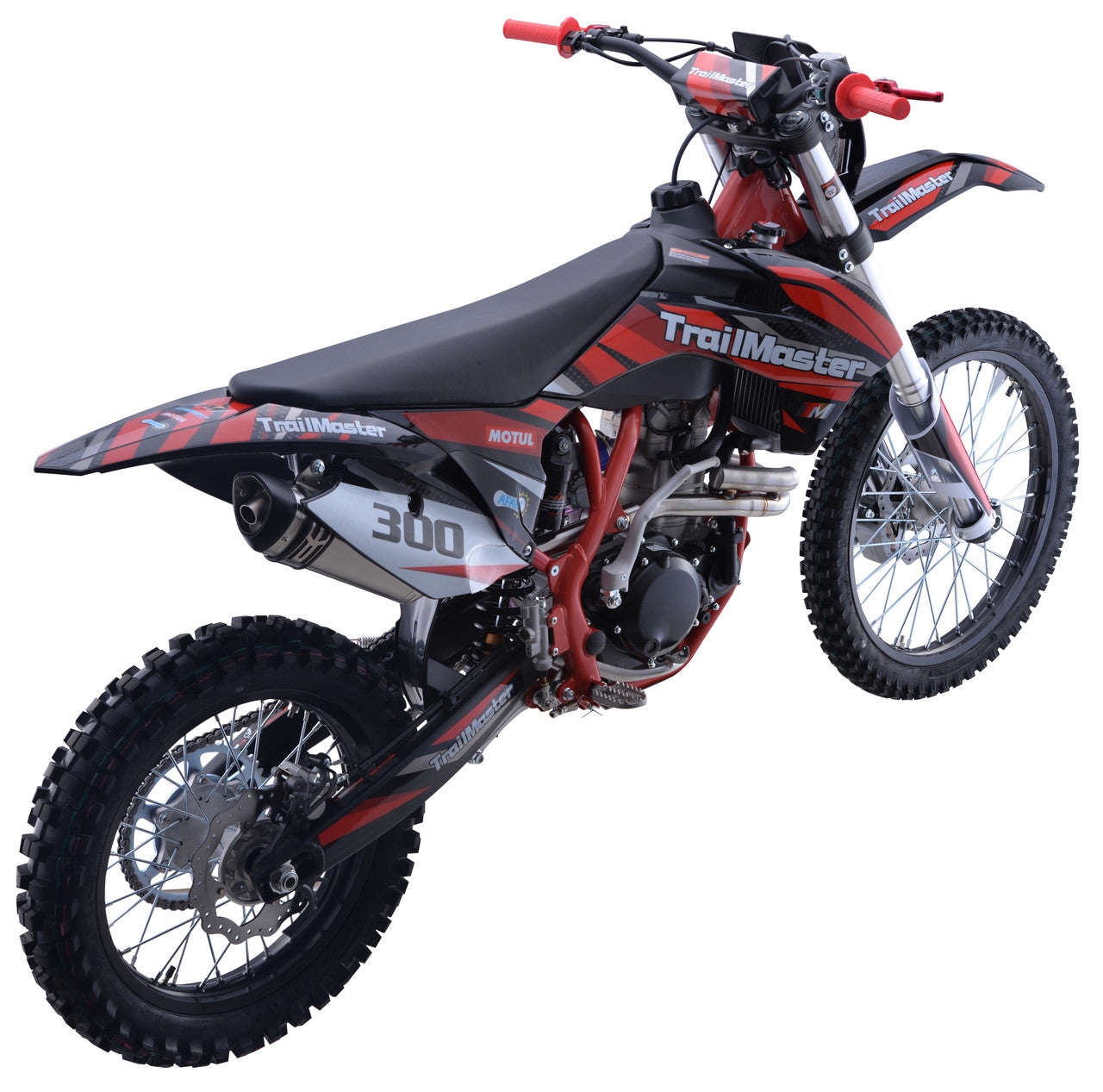

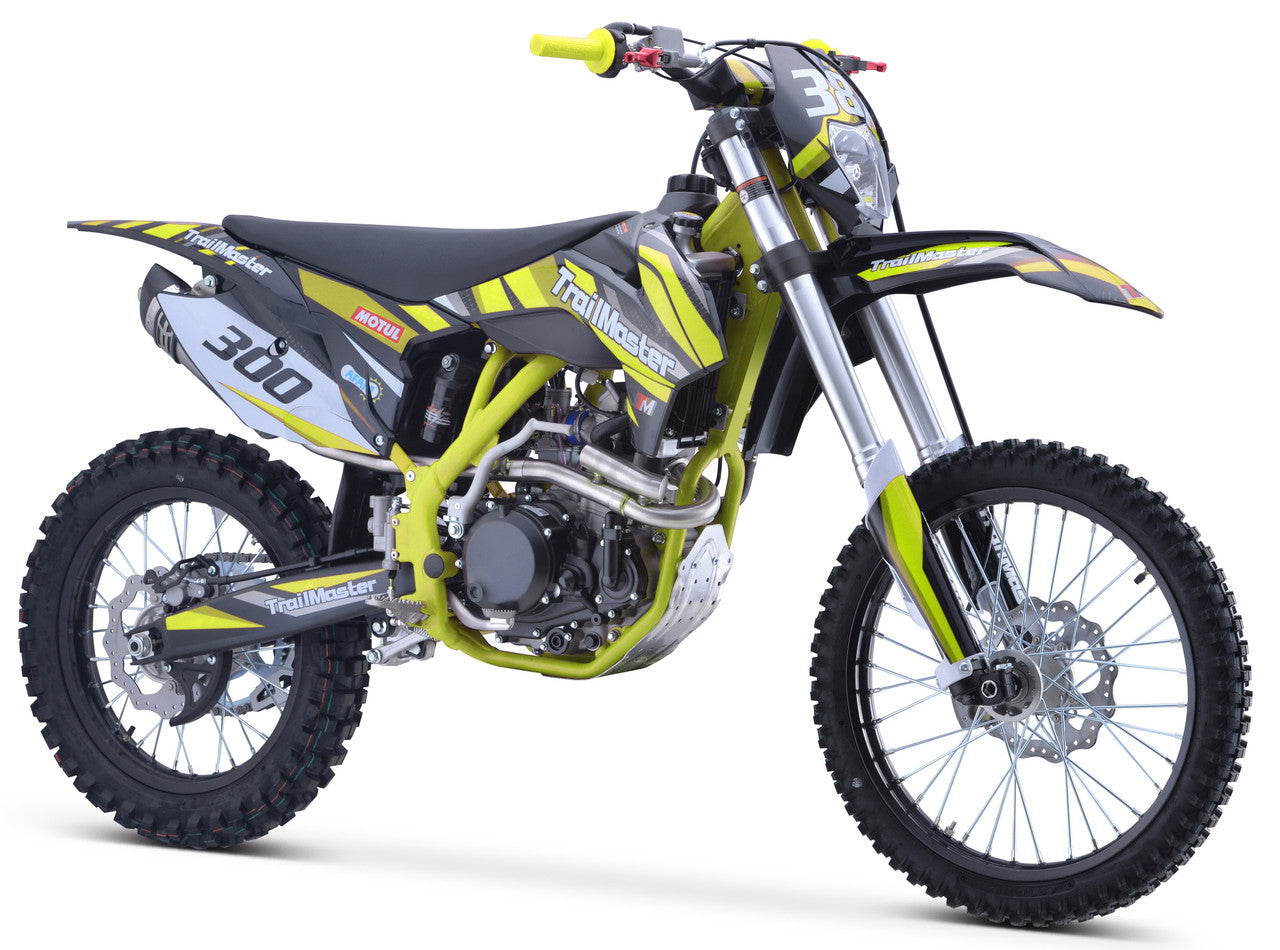

TrailMaster TM38E-300 298cc Adult Dirt Bike
The TrailMaster TM38E-300 298cc Adult Dirt Bike is designed for recreational off-road riding and powersports enthusiasts. Featuring a reliable 298cc engine, durable frame construction, and a full-size design, the TM38E-300 provides a comfortable and controlled riding experience.
Built with quality components and practical features, this dirt bike includes electric start, manual transmission, hydraulic suspension, and disc brakes for dependable operation. The balanced chassis and ergonomic design help provide stability and rider comfort during recreational use in approved riding areas.
Features
-
298cc 4-stroke gasoline engine
-
Electric start system
-
Manual transmission with clutch
-
Full-size adult dirt bike design
-
Durable steel frame construction
-
Hydraulic suspension system
-
Front and rear disc brakes
-
Comfortable rider seating position
-
LED headlight
-
Protective engine and frame components
Specifications
-
Model: TrailMaster TM38E-300
-
Engine: 298cc 4-stroke gas engine
-
Fuel type: Gasoline
-
Frame: Steel construction
-
Intended use: Recreational off-road riding
Design & Comfort
-
Full-size chassis for adult riders
-
Durable suspension components
-
Ergonomic riding position
-
Built for use in permitted off-road areas
Product Information:
The TrailMaster TM38E-300 298cc Adult Dirt Bike is intended for recreational off-road use only. Always operate in designated riding areas, follow local regulations, and use appropriate safety equipment.
TrailMaster Dirt Bike Specifications
TrailMaster Dirt Bike Specifications
| Category | Specification |
|---|---|
| Engine Type | NC298, Single Cylinder, 4-Stroke, 4-Valve, Liquid Cooled, SOHC, Balance Shaft |
| Displacement | 298 ml |
| Max Power | 23KW / 9000rpm - 31Hp |
| Bore x Stroke | 82 x 53.6 mm |
| Lubrication | Pressure and Splash |
| Shift Type | Wet multi disc clutch, International Gear Pattern,6-Speed |
| Start Type | Electric & Kick Start |
| Carburetor | PWK34 Competition Carb. |
| Ignition | Digital CDI |
| Drive Train | #520 Chain, FT: 13T/RR: 51T Sprocket |
| Front Fork | Φ54*Φ60-940mm Inverted Hydraulic Dual Adjustable Forks, 300mm Travel |
| Rear Shock | 480mm Dual Adjustable Shock with Ballonet, 120mm Travel |
| Front Wheel | 7116 Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 21 |
| Rear Wheel | 7116 Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 18 |
| Front Tires | 80/100-21 |
| Rear Tires | 110/100-18 |
| Front Brake | Dual Piston Caliper, 240mm Disc |
| Rear Brake | Single Piston Caliper, 240mm Disc |
| Frame | Central Tube High Strength Steel Frame |
| Swing-Arm | Forged Aluminum Swingarm,L=590mm |
| Handle Bar | Tapered Aluminum #7075 |
| Overall Size | 86.6"X33.9"49.2"/2200x860x1250mm |
| Packing Size | 67.5"X18"X34"/1715x450x860mm |
| Wheel Base | 59"/1500 mm |
| Seat Height | 37"/940 mm |
| Ground Clearance | 11.8"/300 mm |
| Fuel Capacity | 6.5 L / 1.72 Gal. |
| N.W | 234lbs/117KG |
| G.W | 326lbs/148KG |
