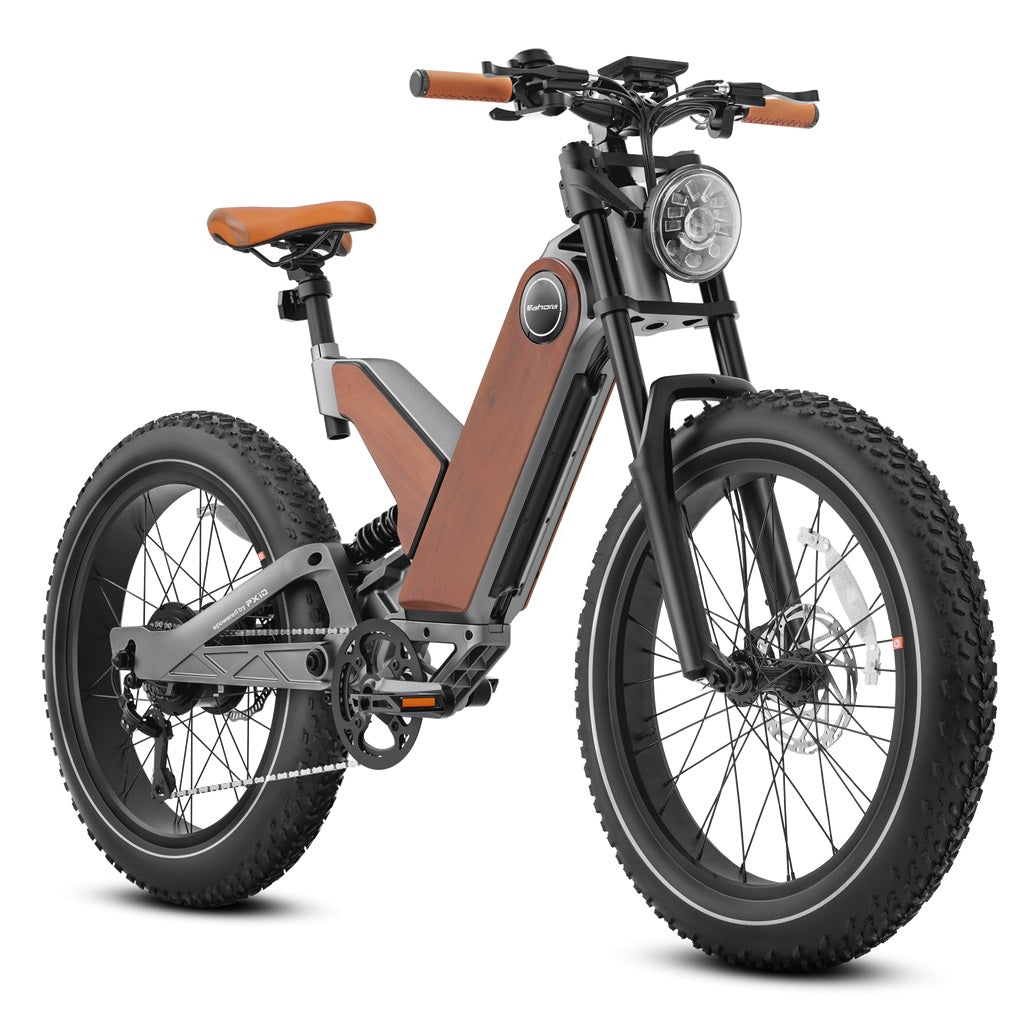

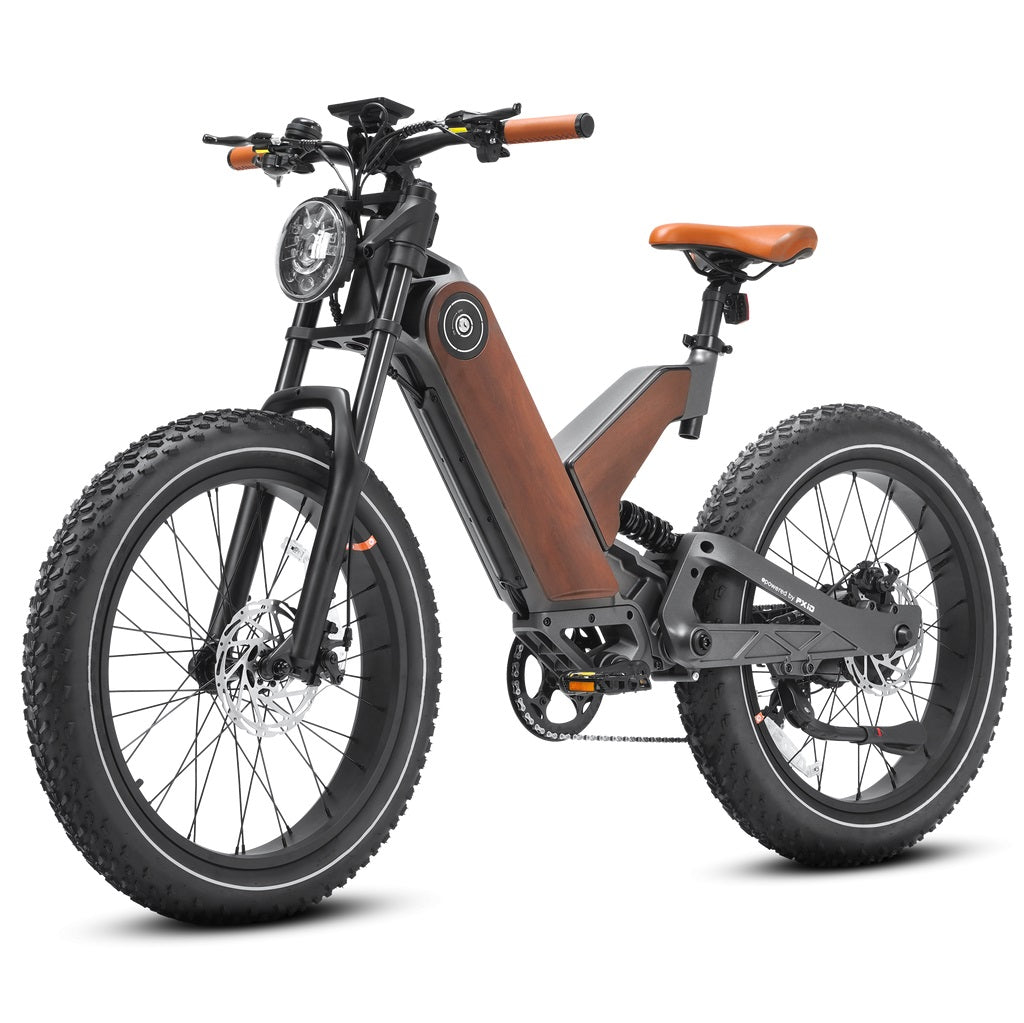

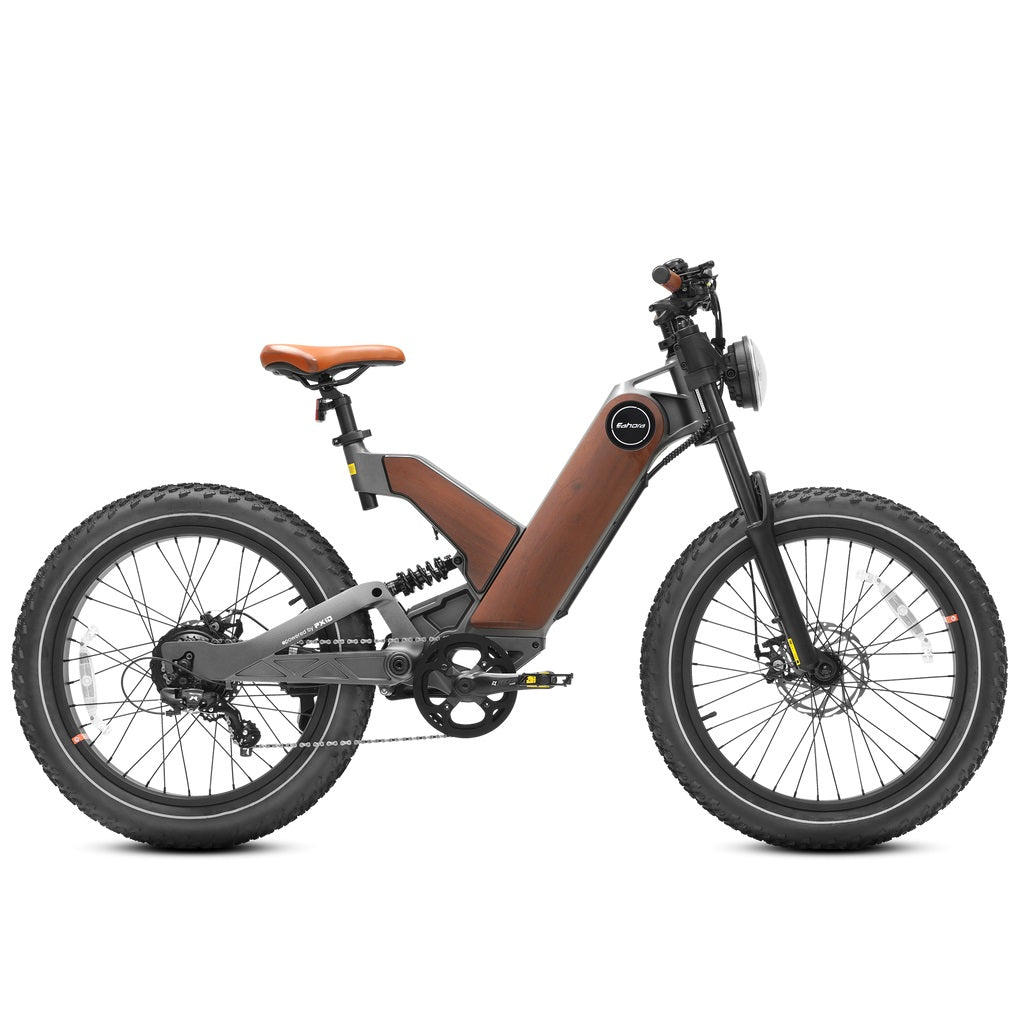

Electric Bike * 1 (85% assembled)
Ebike Battery * 1 (2 keys)
Battery Charger * 1
Front Tire * 1
Headlight * 1
Pedals * 2 (left & right)
Screws & Toolkit * 1
Owner's Manual * 1
Riding Modes:
5 Levels Pedal-Assist (Cadence)
5 Levels Throttle
8 Seconds Auto-Cruise
7-Speed Non-Electric
6 KM/H Walk
Size & Geometry
Basic
- Bike Class
- Class 3 ebike with 5-level pedal assist and throttle.
- Bike Weight
- 84.8 lbs in total with the battery. The battery weighs 27.6 lbs.
- Range per Charge
- 34 - 40 miles on throttle mode. 68 - 80 miles on pas mode.
- Payload Capacity
- Recomend rider weight within 330lbs.
Electronic System

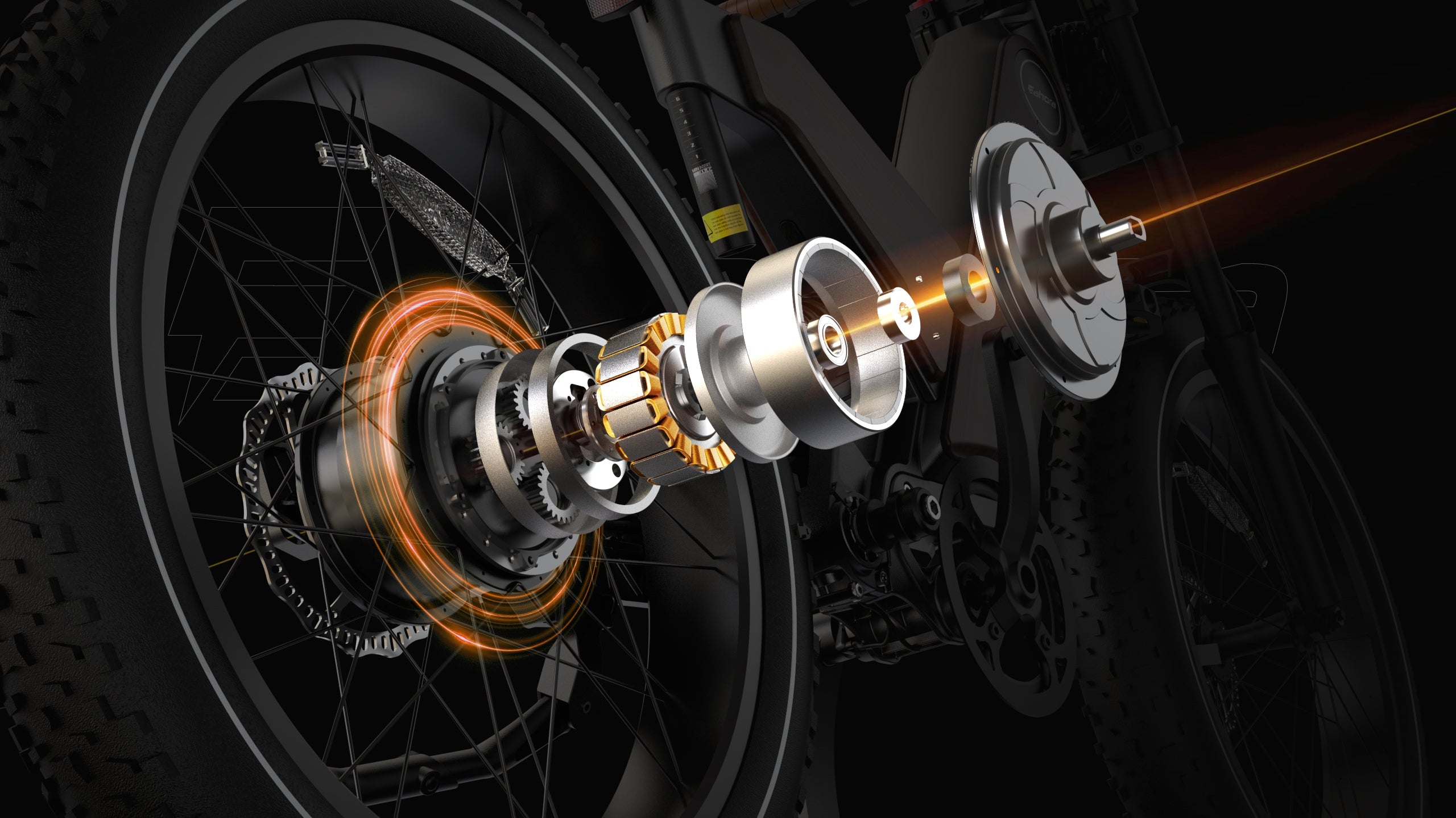

- Motor
- 750W DC hub motor, cassette; rated torque: 85N.M.

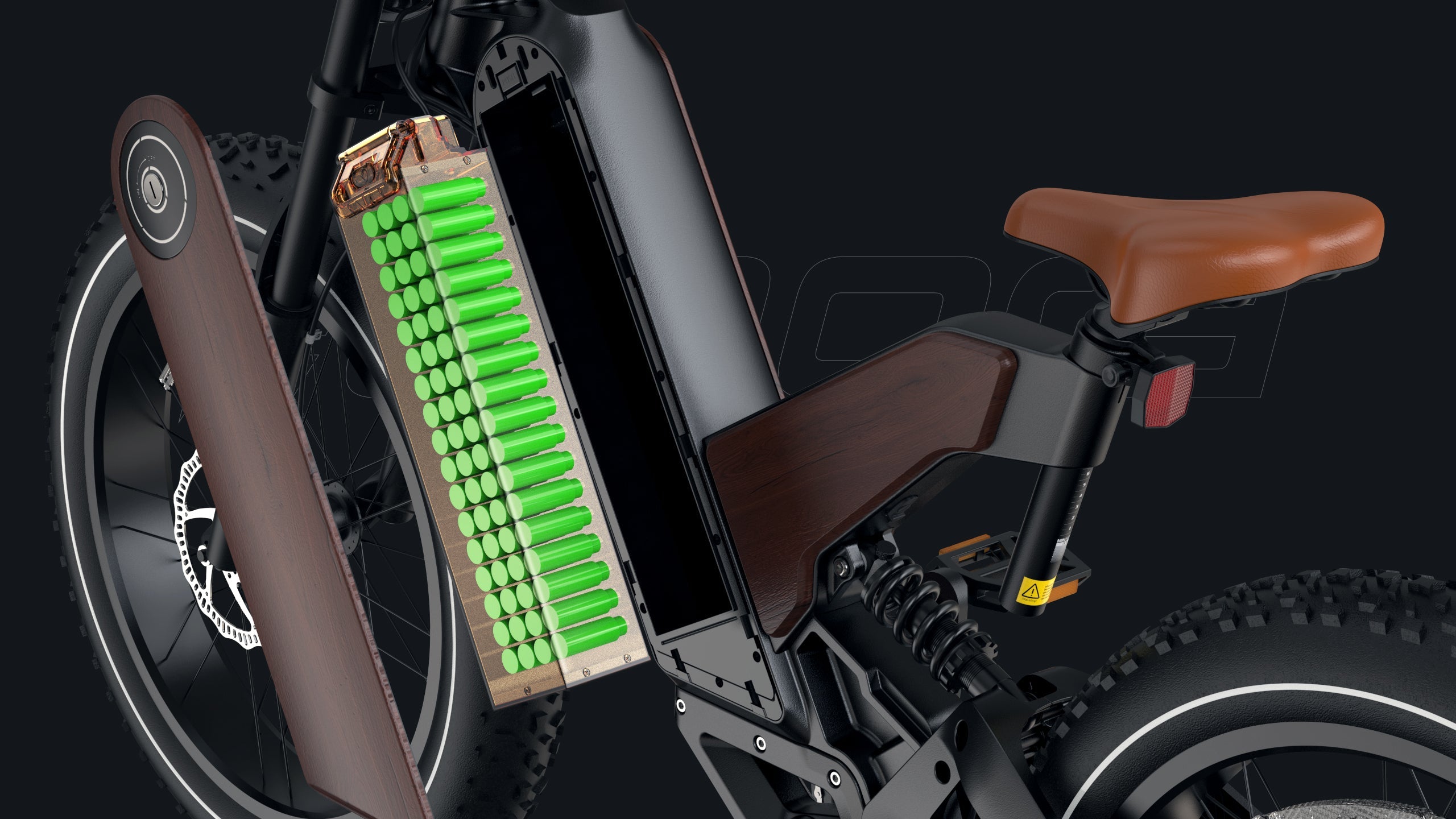

- Battery
- 48V 20AH (960 WH) lithium battery, available to add an extra 15Ah battery.
- Controller
- 48V, 25 ± 1A; 12MOS.
- Charger
- 54.6V ~ 3A smart charger; input 100-240V 50/60HZ. Charging hour: 6-8 Hours.
- Display
- 4" portrait color display(YL-81F), brightness: 100CD/M2.
- Throttle
- Thumb throttle

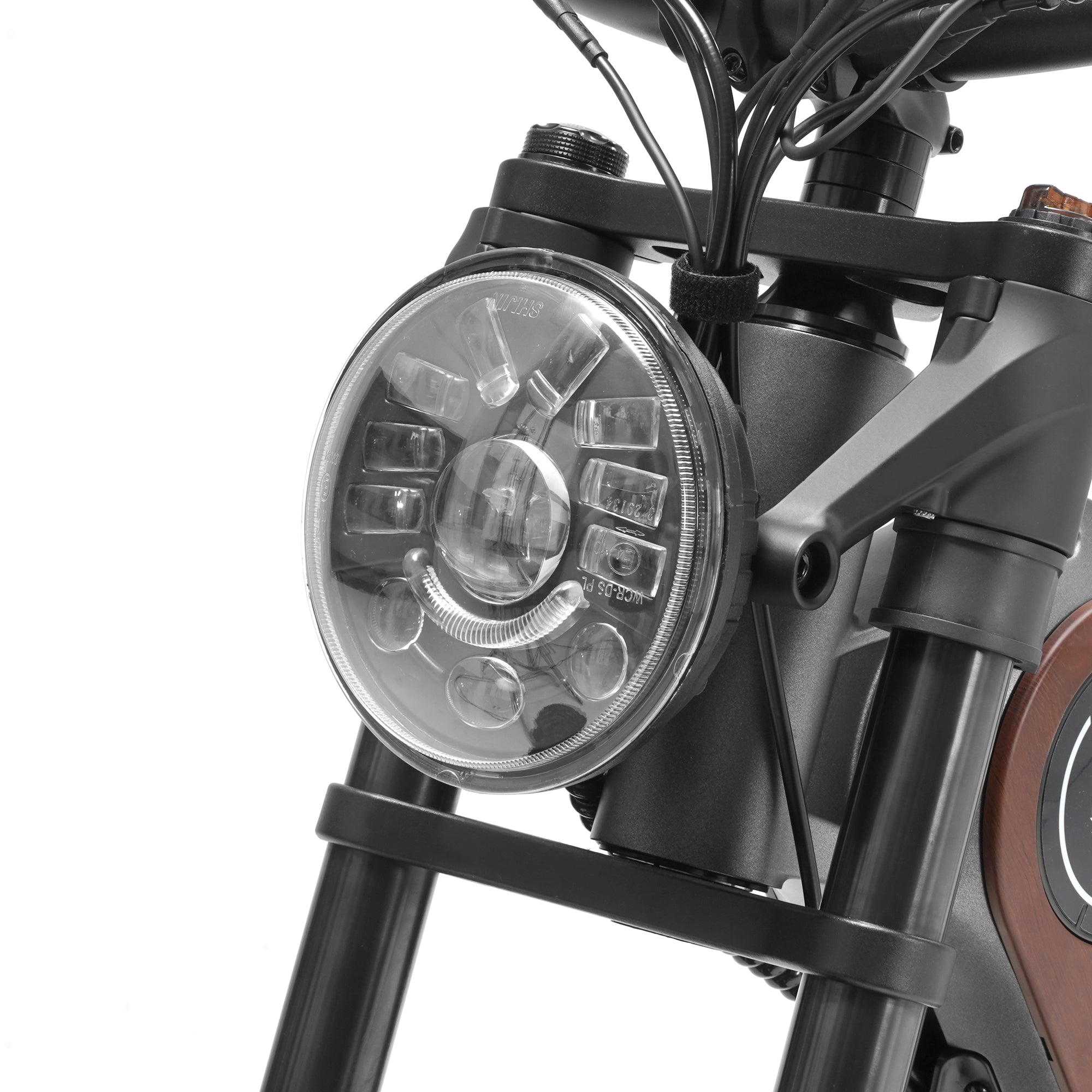

- Lights
- Front light with 48V 20W LED light, rear reflector.
- Wiring
- Wiring harness with water-resistant connectors.
- Waterproof Rates
- IP65 Waterproof, including motor battery, display and wiring.
Bicycle Components
- Frame
- Magnesium alloy; frame size: 24" * 18"
- Brakes
- 180MM front and rear mechanic disc brakes.
- Brake Levers
- Aluminum alloy levers with motor cutoff switch.
- Tires
- 24" * 4.0" tires; tire pressure marked on sidewall.
- Fork
- 100MM travel mechanic suspension alloy fork.
- Rear Suspension
- 500MM adjustable shock absorber.
- Chain
- T50 alloy steel rust-resistant chain; 126 segments.
- Crank Set
- 44T * 170MM, single-sided chainring guard.
- Shifters
- Shimano 7 Speed (TY300), 22.2MM * 2400MM.
- Derailleur
- Shimano 7 Speed(M315).
- Freewheel
- Shimano 7 Speed (MF-TZ500-7),14-28T.
- Grip
- Comfort rubber ergo grips.
- Handlebar
- Rise Handlebar, w 720 * φ 22.2.
- Pedals
- 9/16, polymer bearing.
- Headset
- Intergrated threadless headset.
- Rack
- Optional.
- Kickstand
- Aluminum alloy kickstand with plastic foot.
- Fenders
- None.

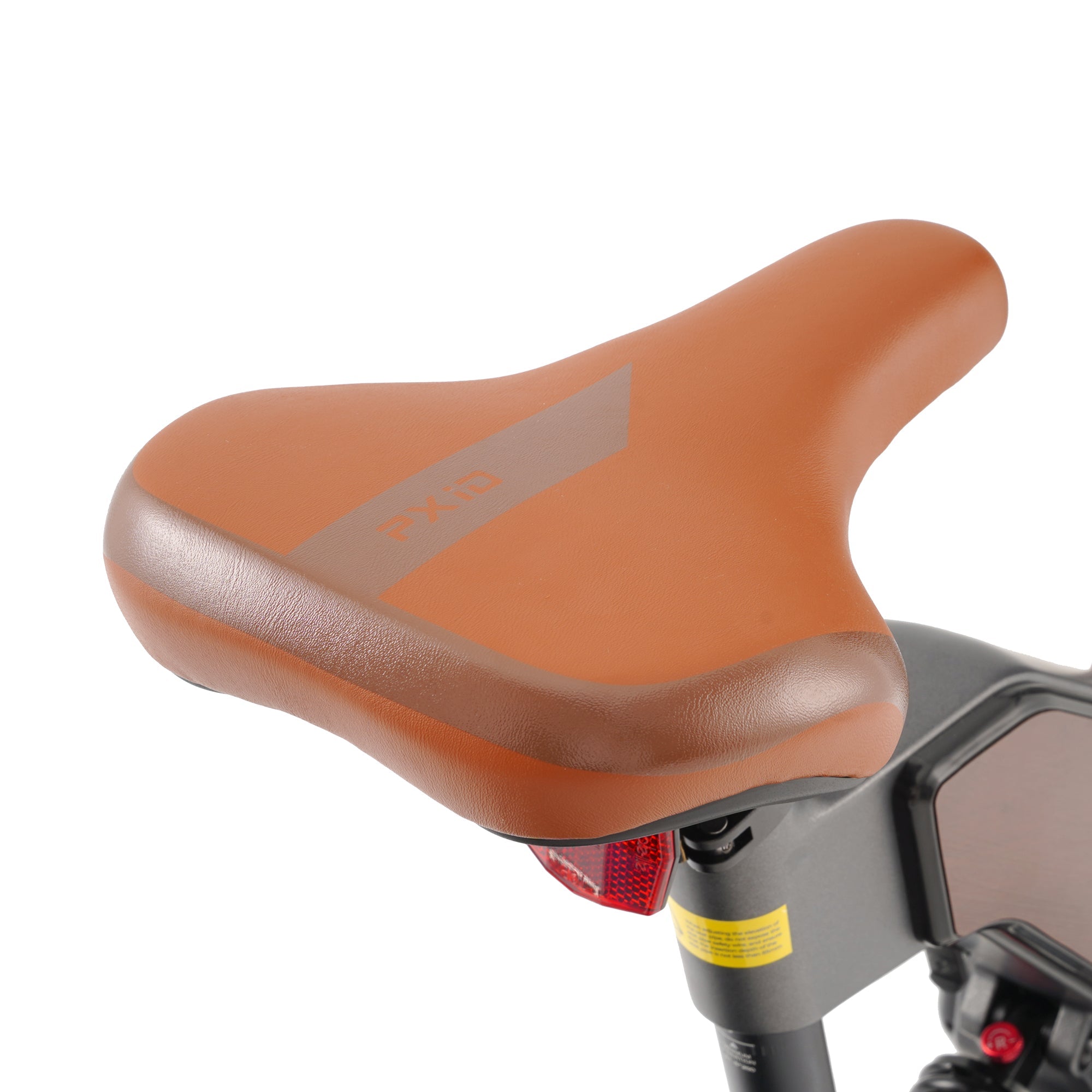

- Saddle
- Leather fabric, breathable, memory foam.
- Rims
- Aluminum spoke rims, 24" * 4" * 12G * 36H.
- Seatpost
- Aluminum seapost with clamp.
- Bell
- Right external finger-dial bell
